Adjusting the Self-Propel
Drive
Whenever you install a new self-propel cable or if
the self-propel drive is out of adjustment, adjust the
self-propel drive.
1.
Turn the adjustment knob counterclockwise to
loosen the cable adjustment

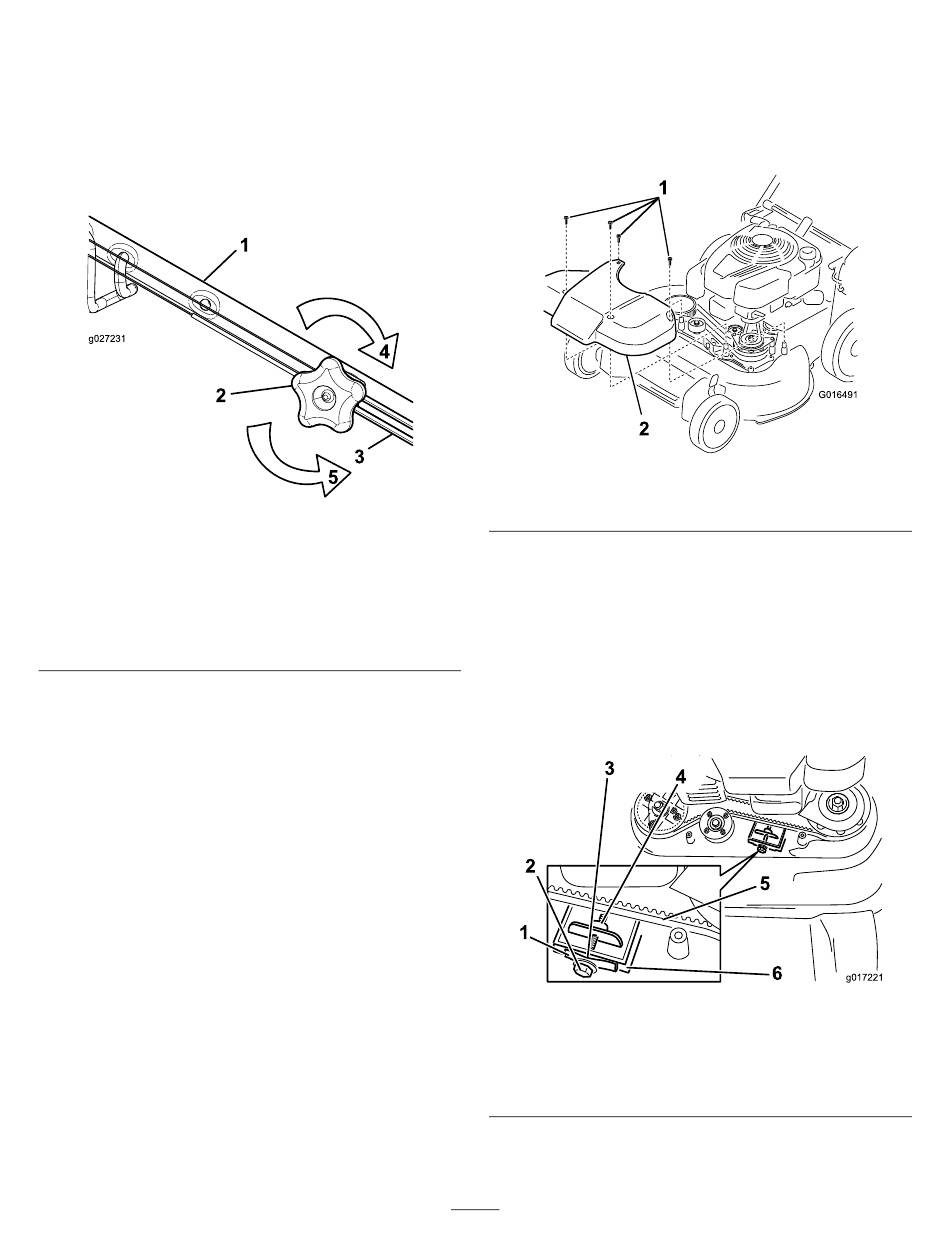

Figure 38
1. Handle (left side)
2. Adjustment knob
3. Self-propel-drive cable
2.
Adjust the tension on the cable
pulling it back or pushing it forward and holding
that position.
Note:
Push the cable toward the engine to
increase the traction; pull the cable away from
the engine to decrease the traction.
3.
Turn the adjustment knob clockwise to tighten
the cable adjustment.
Note:
Tighten the knob firmly by hand.
All manuals and user guides at all-guides.com
(Figure
38).
g027231
4. Turn the knob clockwise to
tighten the adjustment.
5. Turn the knob
counterclockwise to
loosen the adjustment.
(Figure
38) by
Servicing the Blade-Drive
System
Service Interval: Every 50 hours
1.
Remove the blade-drive system cover
39).
1. Bolts
2.
Brush or blow out debris from the inside of the
shield and around all the parts.
3.
Hold a 0.25 mm (0.010 inch) feeler gauge, a
piece of paper, or a note card against the wall
and slide it down behind the belt tension spring.
Note:
If there is a visible gap between the
gauge and the spring, tighten the adjusting bolt
and the nut until the paper barely slides freely in
and out of the gap
1. Belt-tension spring
2. Adjusting bolt
3. Gap
Important:
Do not overtighten the adjusting
bolt. This could damage the blade-drive belt.
22
(Figure
Figure 39
2. Cover
(Figure
40).
Figure 40
4. Adjusting nut
5. Blade-drive belt
6. Wall
g016491
g017221
