272
1.6 Echo Back
Met deze instelling kunt u ieder ontvangen commando opnieuw ver-
sturen.

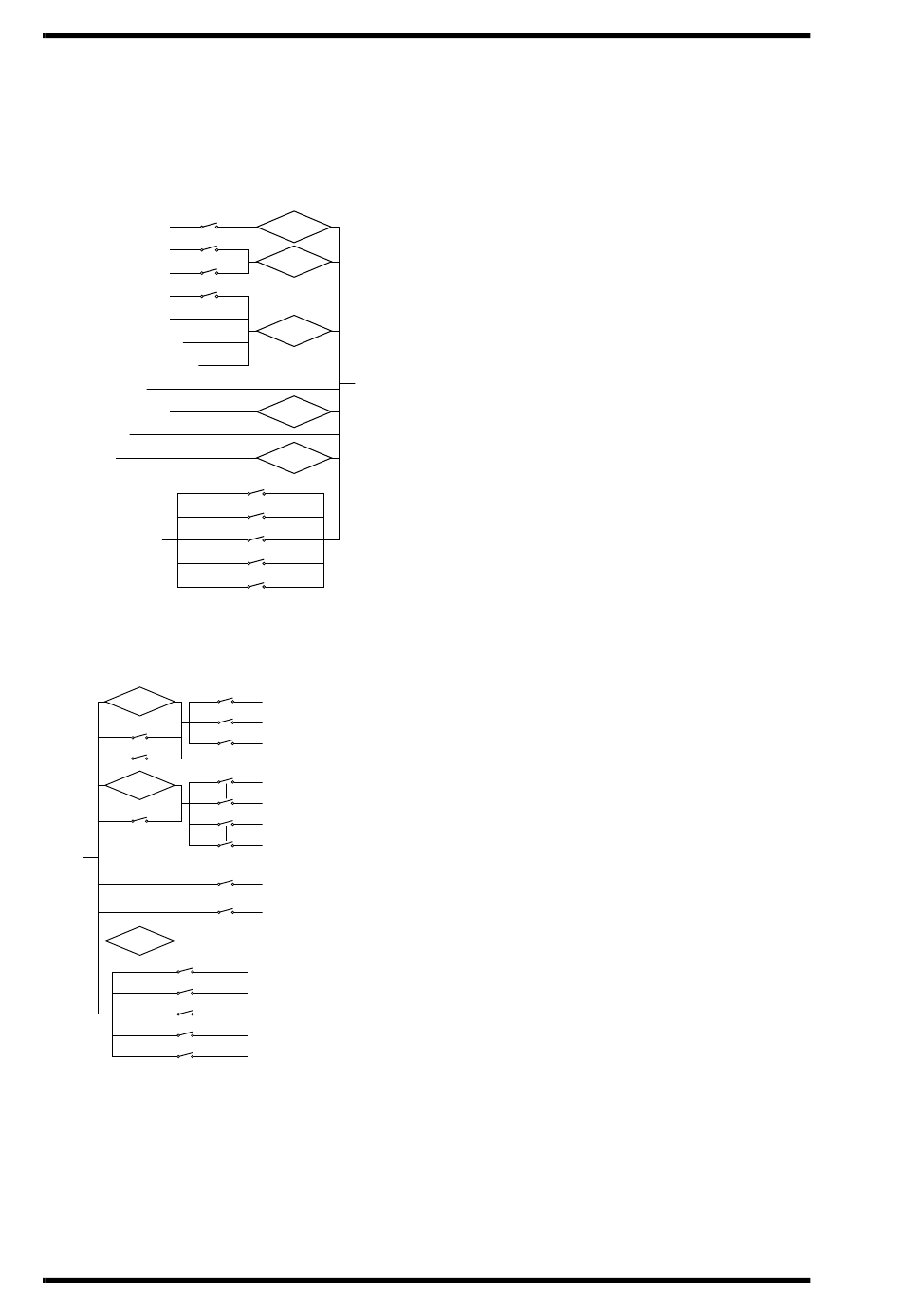

2. Transmissie Conditie
MIDI TRG ON
NOTE ON/OFF $9nH
CTL Rx ON
CONTROL CHANGE $BnH
PGM Rx ON
PROGRAM CHANGE $CnH
PARAM Tx ON
SYSTEM EXCLUSIVE
PARAMETER CHANGE
$F0H, $43H, $1nH
(RESPONSE FOR
PARAMETER REQUEST)
SYSTEM EXCLUSIVE
BULK DUMP $F0H, $43H, $0nH
BULK REQUEST $F0H, $43H, $2nH
ACTIVE SENSE $FEH
USER DEFINE
MMC $F0H, $7FH, nnH, 06H
START $FAH
CONTINUE $FBH
STOP $FCH
MIDI REMOTE
MIDI IN
REAL TIME & MTC ECHO ON
3. Ontvangst Conditie
MIDI TRG ON
MIDI Rx CH?
CTL Rx ON
PGM OMNI ON
PGM Rx ON
CTL OMNI ON
PARAM Rx ON
DEVECE CH?
PARAM OMNI ON
BULK Rx ON
MIDI IN
MTC BASE
MIDI CLOCK BASE
REMOTE CH?
CTL ECHO ON
PGM ECHO ON
PARAM ECHO ON
REAL TIME & MTC ECHO ON
ANDERE ECHO ON
03D—Nederlandstalige Handleiding
FD Tx CH?
MIDI Tx CH?
DEVICE CH?
MIDI OUT
MMC CH?
REMOTE CH?
CTL ECHO ON
PGM ECHO ON
PARAM ECHO ON
ANDERE ECHO ON
$8nH NOTE OFF
$9nH NOTE ON/OFF
$BnH CONTROL CHANGE
$CnH PROGRAM CHANGE
SYSTEM EXCLUSIVE
$F0H, $43H, $1nH
PARAMETER CHANGE
$F0H, $43H, $3nH
PARAMETER REQUEST
SYSTEM EXCLUSIVE
$F0H, $43H, $0nH, BULK DUMP
$F0H, $43H, $2nH, BULK REQUEST
$F1 MTC QUARTER FRAME
$F2H SONG POSITION POINTER
$F8H TIMING CLOCK
$FAH START
$FBH CONTINUE
$FCH STOP
MIDI REMOTE
$BnH CONTROL CHANGE
$CnH PROGRAM CHANGE
$F0H SYSTEM EXCLUSIVE
MIDI IN
4. Parameter Change & Request
Formaat
Parameter Change & Request (basiSformAat)
STATUS
11110000 F0
ID No.
01000011 43
SUB STATUS
0pppnnnn 1n
MODEL ID
00111101 3d
PARAM TYPE
0ttttttt tt
DATA
0ddddddd dd0
:
:
0ddddddd ddn
EOX
11110111 F7
type:
edit buffer (byte operation formaat)
0x08
0x09
system memory (byte operation formaat)
0x0a
functie call
gereserveerd
0x0b
edit buffer (bit operation formaat)
0x48
systeem geheugen (bit operation formaat)
0x49
0x4a
gereserveerd
0x4b
controller (toets) (bit operation formaat)
Parameter Change (byte operation voor type 0x08:edit
buffer)
continuous address mode
STATUS
11110000 F0
ID No.
01000011 43
SUB STATUS
0001nnnn 1n
MODEL ID
00111101 3d
PARAM TYPE
00001000 08
DATA
00vvaaaa aa0
0aaaaaaa aa1
0ddddddd dd
:
:
EOX
11110111 F7
individual address mode
STATUS
11110000 F0
ID No.
01000011 43
SUB STATUS
0001nnnn 1n
MODEL ID
00111101 3d
PARAM TYPE
00001000 08
DATA
01vvaaaa aa0
0aaaaaaa aa1
0ddddddd dd1
01vvaaaa aa2
0aaaaaaa aa3
0ddddddd dd2
:
:
EOX
11110111 F7
System Exclusive Message
fabrikant-ID No. (YAMAHA)
p=mode 1:parameter change of respons
voor request, 3:parameter request
n=0-15 (Device Channel No.1-16)
MODEL ID
(type)
data 0
:
data n (max 33)
End Of Exclusive
System Exclusive Message
Fabrikant- ID No.(YAMAHA)
parameter change of respons n=0-15
(Device Channel No.1-16)
MODEL ID
byte operation voor edit buffer (type)
bit6:0 continuous address mode
v:geldige data 0:1st means, 1:0-3bit,
2:4-6bit, 3:2nd means
address ( H) high 4 bits van 11 bits adres
address ( L) low 7 bits van 11 bits adres
data
: continuous address data
End Of Exclusive
System Exclusive Message
Manufacturer's ID No. (YAMAHA)
parameter change of response n=0-15
(Device Channel No.1-16)
MODEL ID
byte operation voor edit buffer (type)
bit6:1 individuele address mode
v:geldige data 0:ALL, 1:0-3bit, 2:4-6bit,
3:2nd means
address (H) high 4 bits van 11 bits address
address (L) low 7 bits van 11 bits address
data
bit6:1 individuele address mode
v:geldige data 0:1st means, 1:0-3bit,
2:4-6bit, 3:2nd means
address (H) high 4 bits van 11 bits address
address (L) low 7 bits van 11 bits address
data
:
End Of Exclusive
