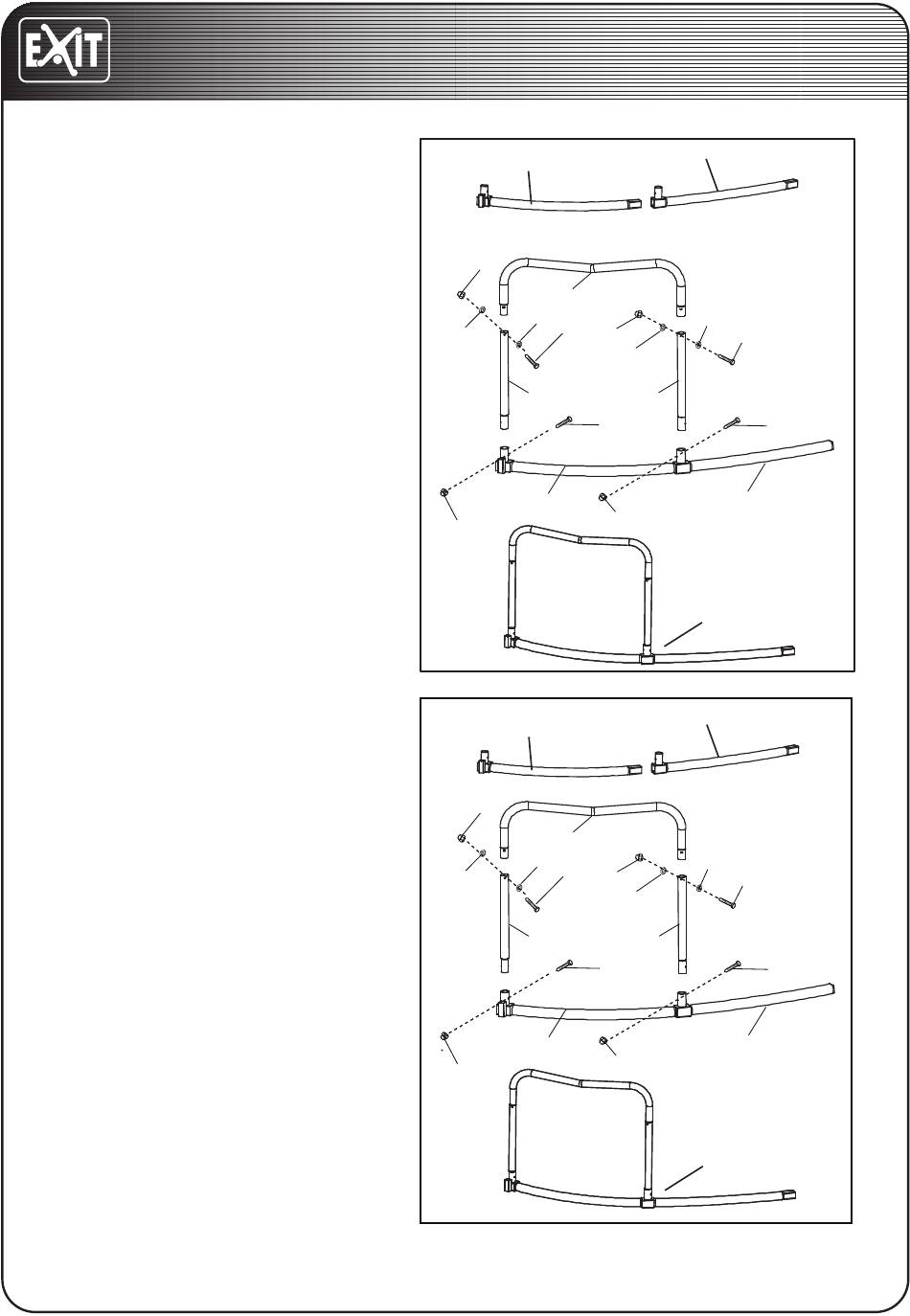

STEP 1
Lay Top Tube A-1 (1) and Top tube A-2
( 2) on the ground in the positions as
shown. make sure the Top Tubes are
turned, so the small holes (spring holes)
are facing the ground. Insert one end of
the Top tube A-2 (2) into the other Top
tube A-1 (1) with T-joint.
The peak of the Leg Brace should point
toward the ground.
Insert the Leg Brace(11) into the Leg
extension(12) secure with M6 Bolt(8)
and M6 Washer(10) and M6 Nut(9)
Insert the leg halfway into the Socket
of Top Tube A-2 (2) pull out on other
leg and insert into the T-joint of Top
Tube A-1(1). press down on both legs
at the same time and fully insert into
the socket and T-joint secure with M6
Bolt (8) and M6 Nut(9).
Repeat step1 additional one time to as-
semble one rest leg sections A.
STEP 2
Lay Top Tube B-1 (3) and Top tube B-2
(4) on the ground in the positions as
shown. make sure the Top Tubes are
turned, so the small holes (spring holes)
are facing the ground. Insert one end of
the Top tube B-2 (4) into the other Top
tube B-1 (3) with T-joint.
The peak of the Leg Brace should point
toward the ground.
Insert the Leg Brace(11) into the Leg
extension(12) secure with M6 Bolt(8)
and M6 Washer(10) and M6 Nut(9)
Insert the leg halfway into the Socket of
Top Tube B-2 (4) pull out on other leg
and insert into the T-joint of Top
Tube B-1(3). Press down on both legs at
the same time and fully insert into the
socket and T-joint secure with M6
Bolt (8) and M6 Nut(9)
Repeat step2 additional one time to as-
semble one rest leg sections B.
JumpArenA
1
2
9
11
10
8
10
12
2
9
2
4
9
11
10
8
10
12
4
9
Trampolines
1
10
9
8
10
12
8
8
1
9
A
3
10
9
8
10
12
8
8
3
9
B
15
