This service information describes the connection of the IntelliBridge to the MAQUET FLOW-i
anesthesia machine.
Data communication
The IntelliBridge EC10 supports RS232 serial data communication with the following specifications
for connection with the external device:
• Baud rate:
• Word length:
RS232 parameters must be set and verified according to the MAQUET FLOW-i anesthesia machine
service manual by authorized personnel.
Instruction for connection
Connect the IntelliBridge EC5 D-Sub 9-pin connector to the RS232 connector of the MAQUET
FLOW-i anesthesia machine as shown in the photo below. Make sure to tighten the screws of the
connector properly.
1

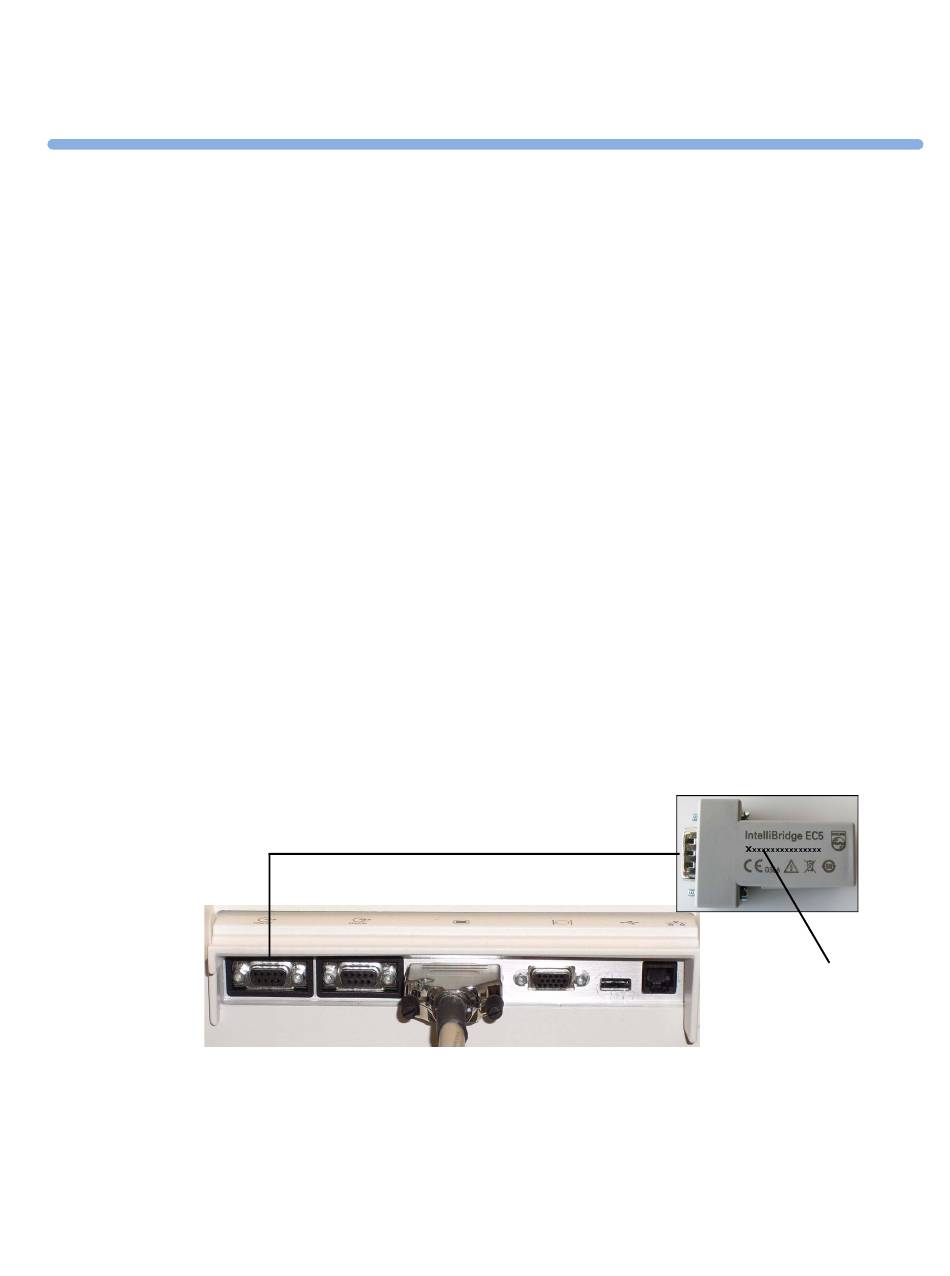

IntelliBridge EC5 connection to RS232 ports
1
2
3
Service Information
7
38400
8 bits
MAQUET FLOW-i anesthesia machine - RS232 (COM) ports
IntelliBridge EC5 ID module
EC5 device label: "Maquet FLOW-i"
• Stop bits:
• Parity/Checking:
2
7
1
Even
3
25
