This service information describes the connection of the IntelliBridge to the Dräger Primus
or Primus IE anesthesia machine.
Data communication
The IntelliBridge EC10 module supports RS232 serial data communication with the following
specifications for connection with the external device:
• Baud rate:
• Word length:
• Stop bits:
• Parity:
N O T E
RS232 parameters must be set and verified according to the Dräger Primus or Primus IE anesthesia
machine service manual by authorized personnel.
Instruction for connection

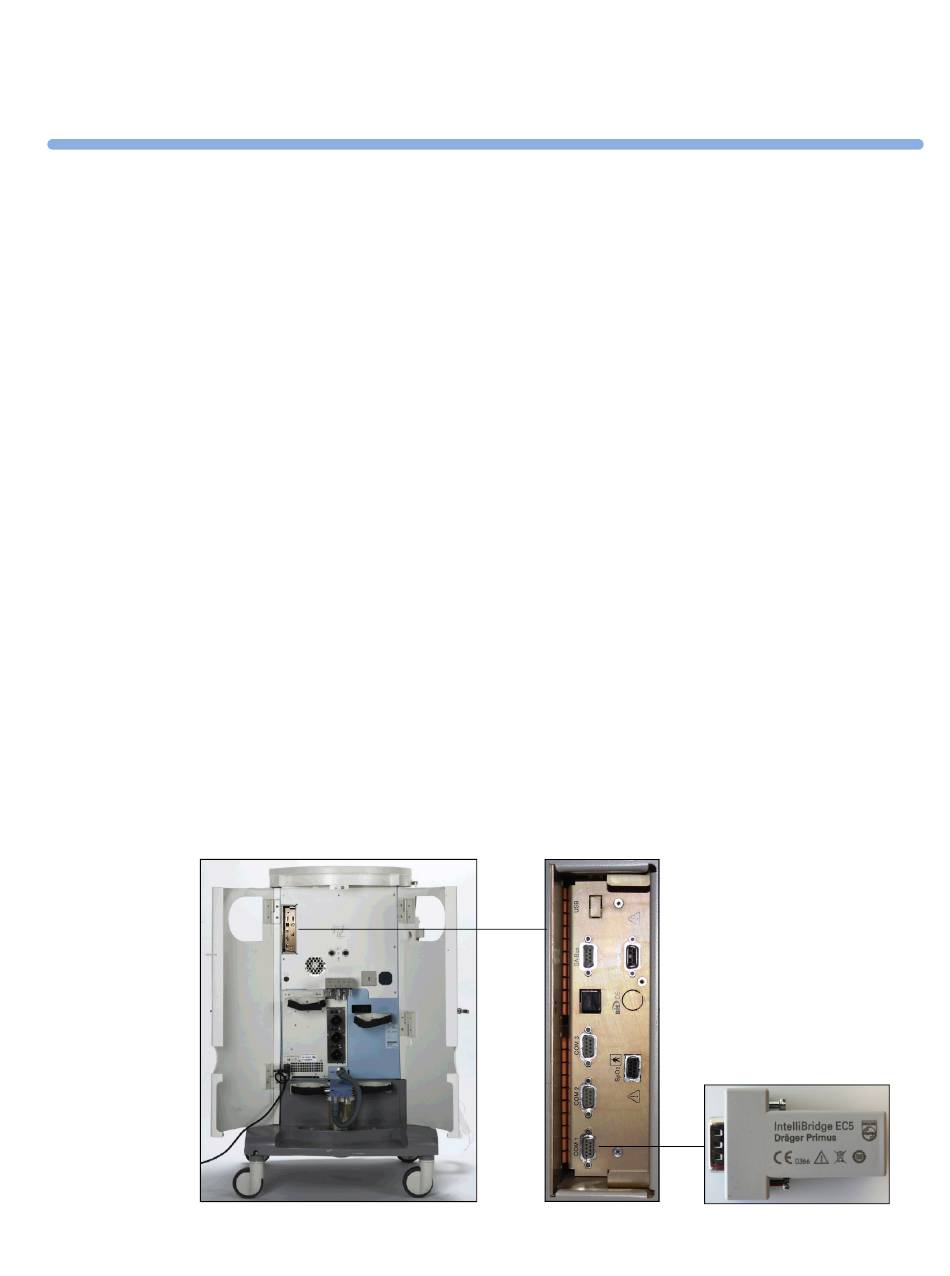

Connect the IntelliVue EC5 D-Sub 9-pin male connector to the RS232 connector COM 1 of the
Dräger Primus or Primus IE anesthesia machine as shown in the photo below. Make sure to tighten
the screws of the connector properly.
Service Information
7
9600
8 bits
1
Even
7
25
