9.0 Accessories
9.1 Additional weight

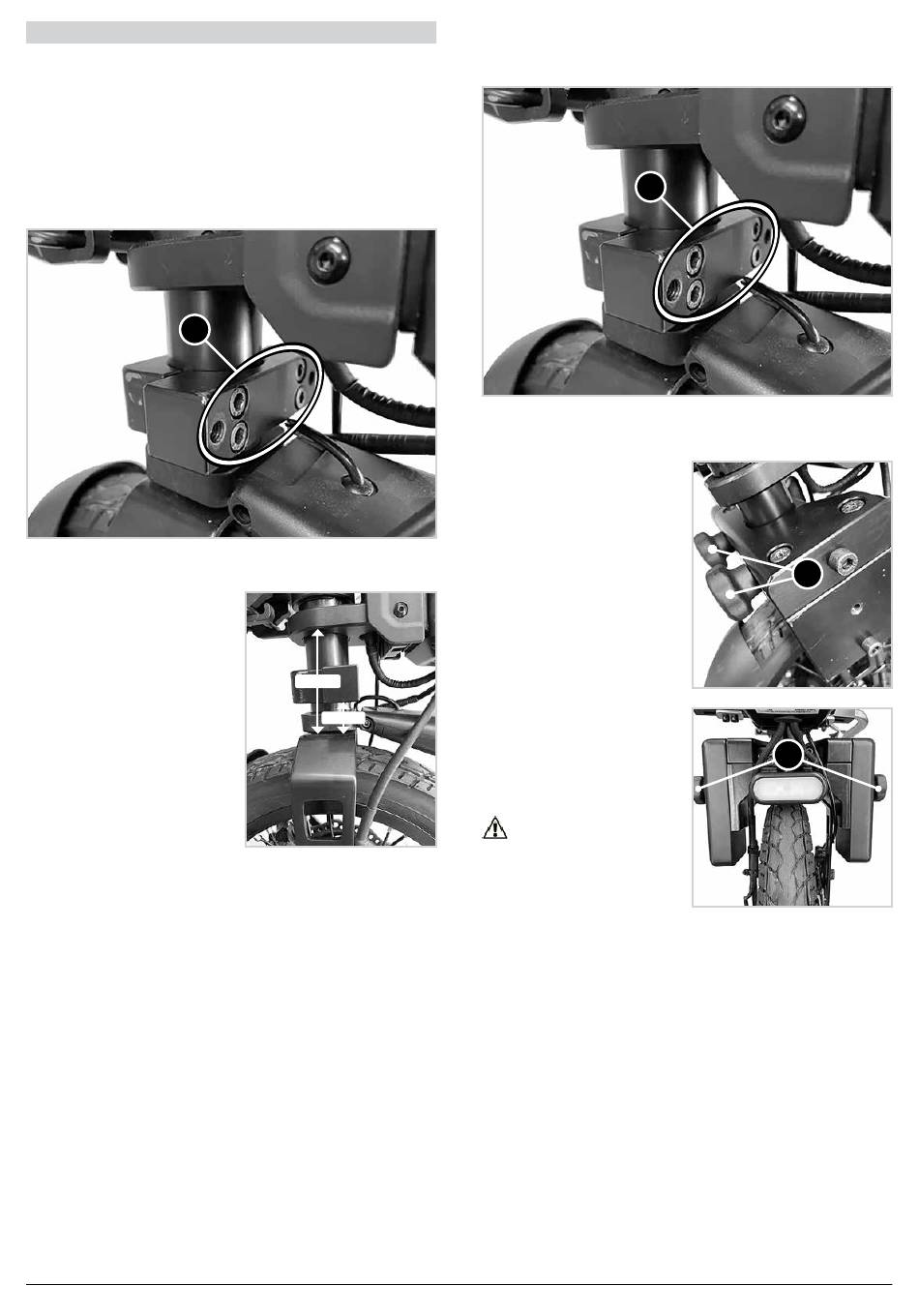

Assembly
• Open the screws on the bracket completely (A).
• Position the wider part of the bracket on the front
• Tighten the 4 screws (A) slightly that the parts still
moving.
A
• Make sure that the
distance between fork and
bracket is higher then
25mm.
• Make sure that there is
50mm distance between
fork and bottom side of the
controller.
Rev. I | English
50mm
25mm
29
• Align the bracket with the fork and tighten the screws
(A) crosswise by 10NM.
A
• Take the inner part of the
additional weight and put
it on the bracket
• Tightening the both hand
screws on the backside
with hand force (B)
• Attach left and right part
of the additional weight
and tighten the hand
screws (C) with hand
force .
• To detach the weight
open the hand screws to
attach put on weight and
tightening the hand
screws again.
WARNING:
Make sure that the
additional weight is not in
contact with any cables. If
they are in contact please
change the cable routing
that there is no contact.
Retighten the Screws (B &
C) before every ride
B
C
Empulse F55
