10.1

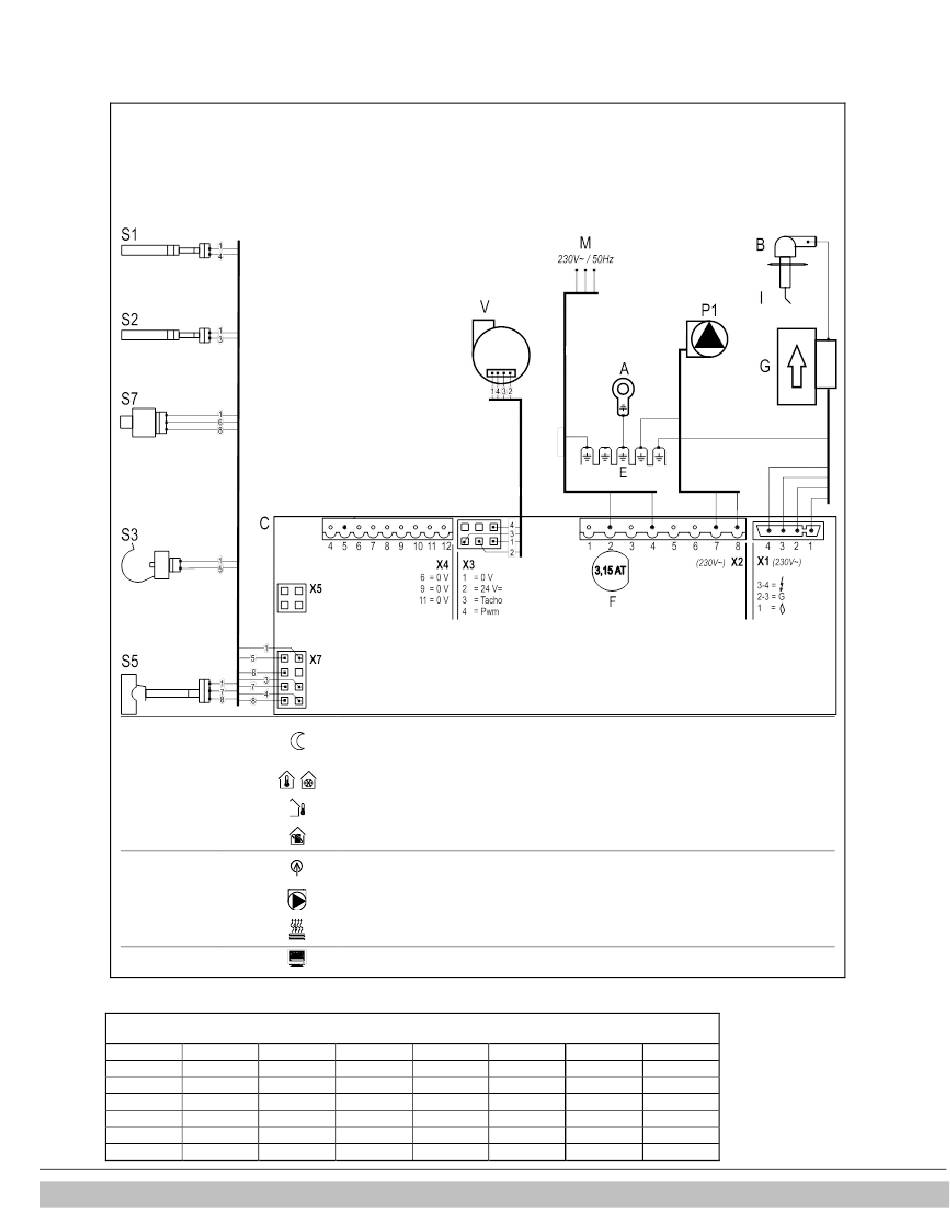

Elektrisch schema RKOMB22AAV1, RKOMB28AAV1 & RKOMB33AAV1
A
Aard aansluiting wisselaar
B
Ontsteekkap
C
Brander automaat
E
Aardaansluitingen
4-5
Connector X4
24V=
6-7
8-9
11-12
Connector X2
2-4
~
230V
7-8
3-5-6
Connector X5
10.2

NTC weerstanden

NTC 12kOhm
T [°C]
R [ohm]
T [°C]
-15
76020
15
-10
58880
20
-5
45950
25
0
36130
30
5
28600
35
10
22800
40
ROTEX Heating Systems GmbH
F
Zekering (2A T)
G
Gasblok + ontsteek module
I
Ontsteek/ionisatie pen
M
Netvoeding
Externe spaarschakelaar (zie ook § 5.3.1)
Aan/Uit kamerthermostaat
(0,1A-24Vdc) en/of vorstthermostaat
Buitenvoeler
(12k ohm / 25°C)
OpenTherm kamerthermostaat
(6-7 moet open zijn)
Netvoeding 230 V (2 = L (bruin), 4 = N (blauw))
CV-pomp
(8 = L(bruin), 7 = N (blauw)
Afsluiter vloerverwarming of MIT
(3 = L(bruin), 5 = Schakel (zwart), 6 = N (blauw)
(bijv. VC4013 Honeywell 230V~)
Computer interface
R [ohm]
T [°C]
R [ohm]
18300
45
5522
14770
50
4609
12000
55
3863
9805
60
3253
8055
65
2752
6653
70
2337
P1
S3
CV pomp
WW sensor
R
Weerstand
S5
Stromingssensor
Aanvoer
S1
S7
CV water druksensor
sensor
S2
Retour sensor
V
Ventilator
T [°C]
R [ohm]
75
1994
80
1717
85
1467
90
1266
95
1096
100
952
111
