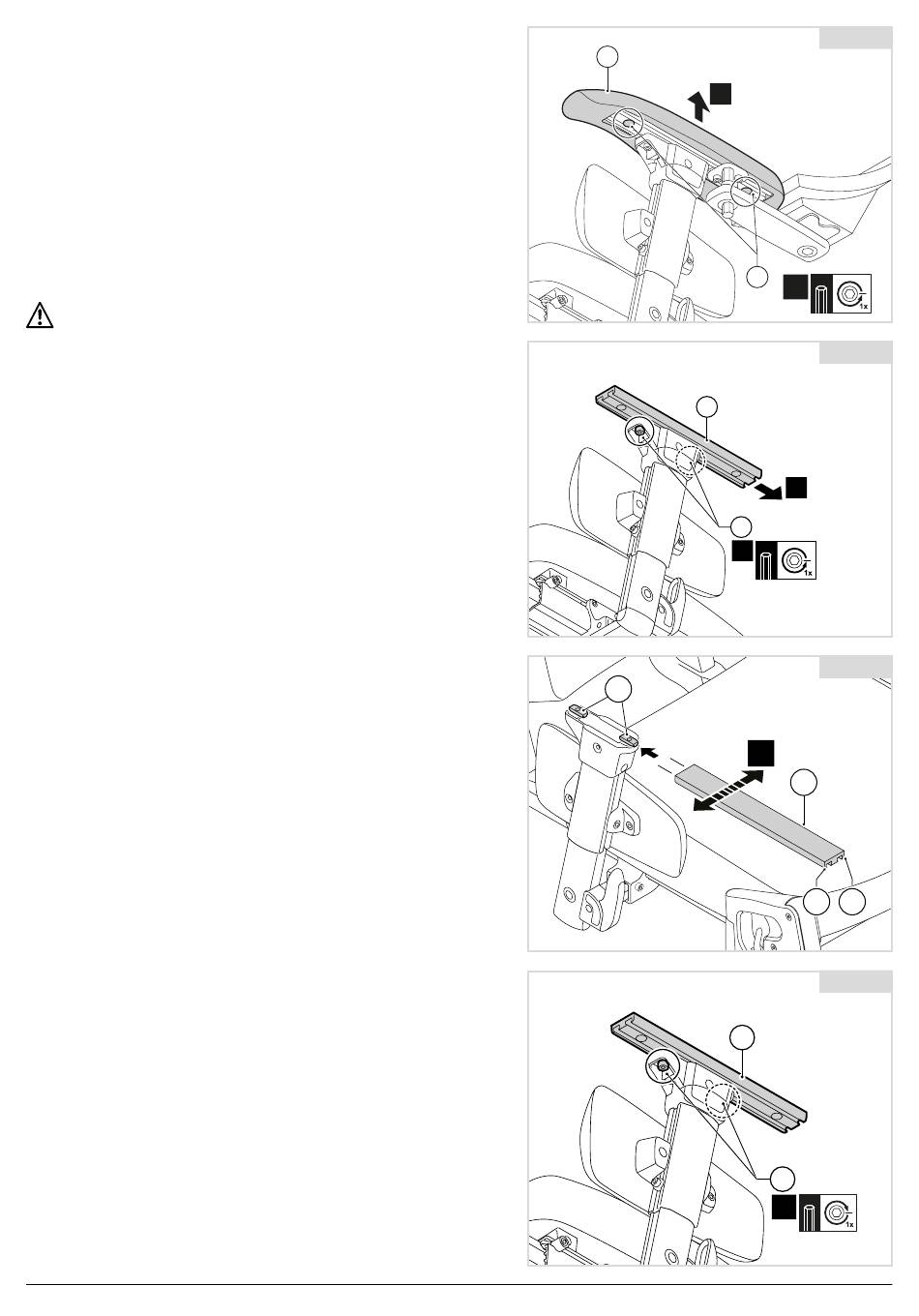

Armrest pad width (figure 4.19-4.22)
To remove:
1. Loosen (A).
2. Remove (B).
3. Loosen (E) by one turn.
4. Remove (F).
To position:
1. Slide (A) together with B or C onto D
NOTE / CAUTION!
Ensure that the ridge on the terminal block falls into the opening
1. Adjust the depth of (A) and tighten (E).
2. Position the controller bracket.
3. Position the armrest.
Sedeo Pro | Rev.F | English
B
2
A
F
E
3
M5
D
5
A
Fig. 4.19
1
M5
Fig. 4.20
4
Fig. 4.21
A
B
C
Fig. 4.22
E
6
M5
13
