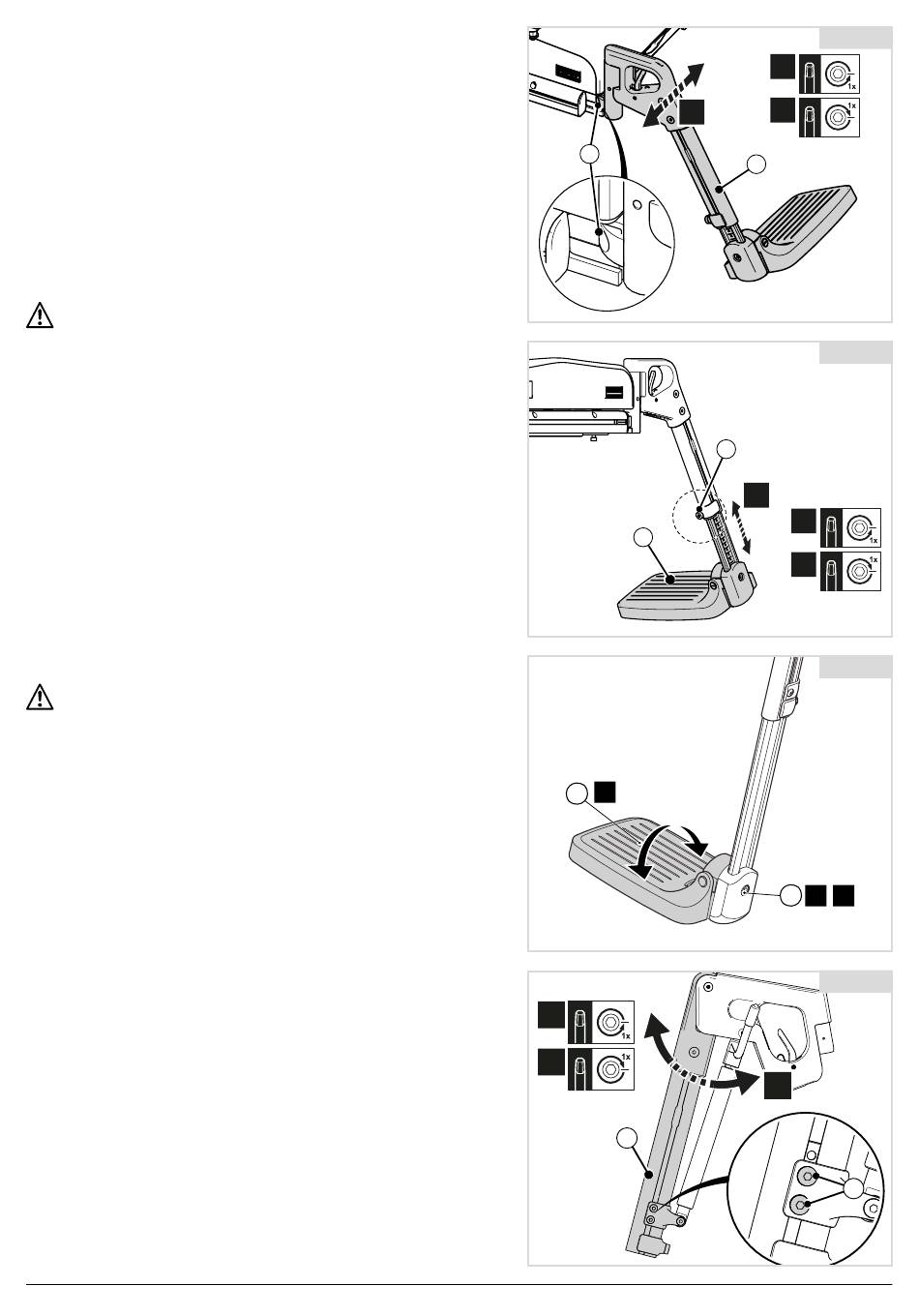

4.13 Pre-set swing away legrests
Legrest width (Fig. 4.50)
1. Loosen (A) by one turn.
2. Adjust (B) to the desired position.
3. Tighten (A).
Lower leg length (Fig. 4.51)
1. Loosen (A) by one turn.
2. Adjust (B) to the desired position.
3. Tighten (A).
NOTE / CAUTION!
Ensure that there is sufficient free space under (B) for the wheelchair
to drive over obstacles.
Ankle angle (Fig. 4.52)
1. Loosen (A) a few turns.
2. Adjust (B) to the desired position.
3. Tighten (A).
Knee angle manual/power elevating legrest (Fig. 4.53)
The position of the footplates can be changed by adjusting the knee
angle.
1. Loosen (A) a few turns.
2. Adjust (B) to the desired position.
3. Tighten (A).
NOTE / CAUTION!
Change the height or knee angle if the footplate touches the castor
wheels.
