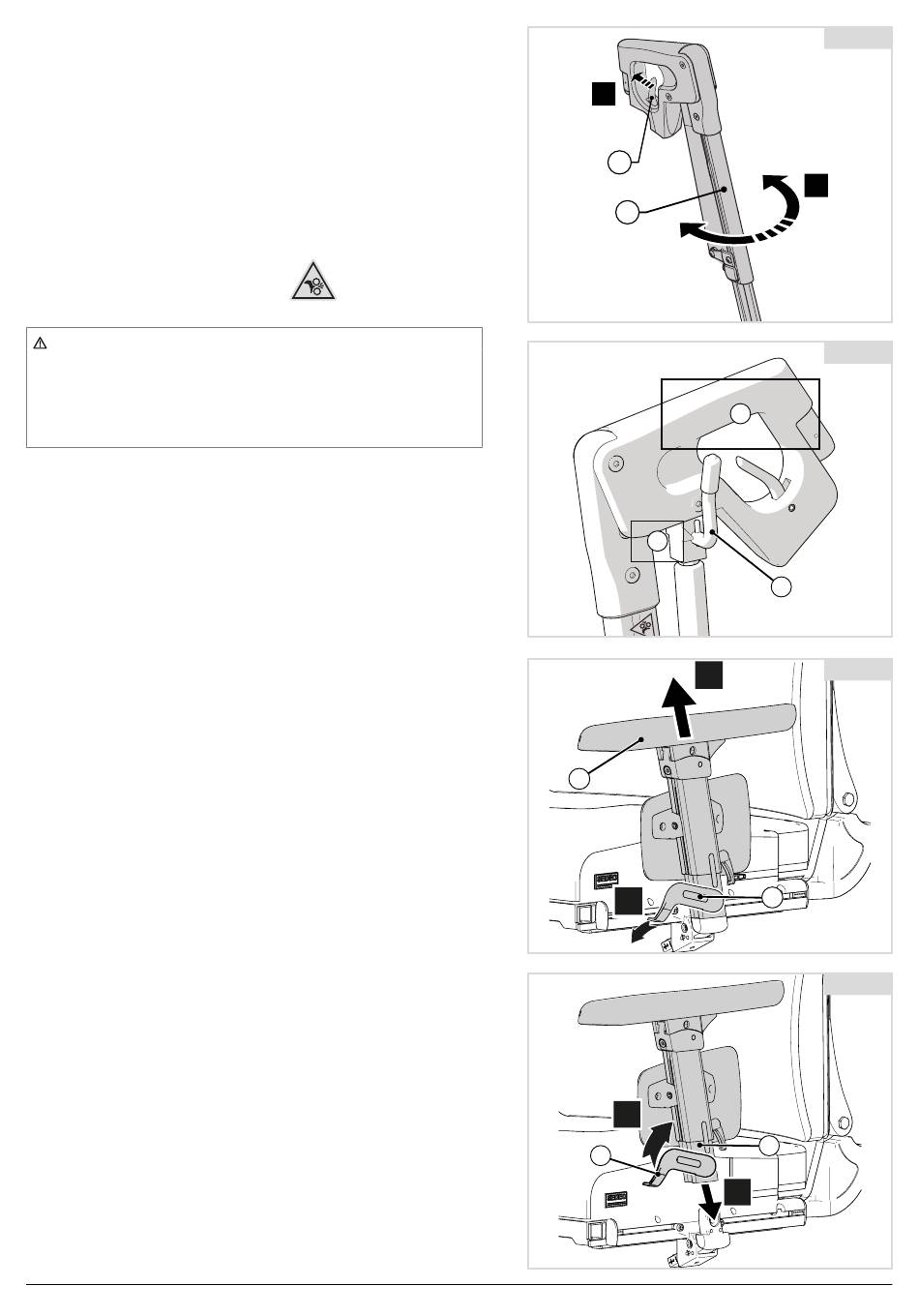

7.6 Swing away legrests (Fig. 7.7)
Removing a swing-away legrest
1. Loosen the calf band.
2. Push the catch (A) to the rear in order to unlock the leg rest.
3. Swing the leg rest outwards.
4. Remove the leg rest (B) from its bracket by lifting.
You should hear a click when replacing the leg rest. This indicates that
the leg rest has locked into place.
Danger of finger entrapment (Fig.7.8)
Warning!
When the Manual Elevating swing away legrest is removed, carry
the legrest at the handle intended for removing/carrying (A).
When carrying at B and at the same time releasing lever C there is a
risk of finger trapping.
7.7 Single post removable armrest
Removing the armrest assembly (Fig. 7.9)
1. Tip (A) downwards.
2. Remove (B).
Positioning the armrest assembly (7.10)
1. Slide (A) onto (B).
2. Push (C) upwards.
