INSTALLATION
Electrical connection
right zones
left zones
right zones
left zones
right zones
left zones
right-hand zones
middle zones
left-hand zones
GB 40

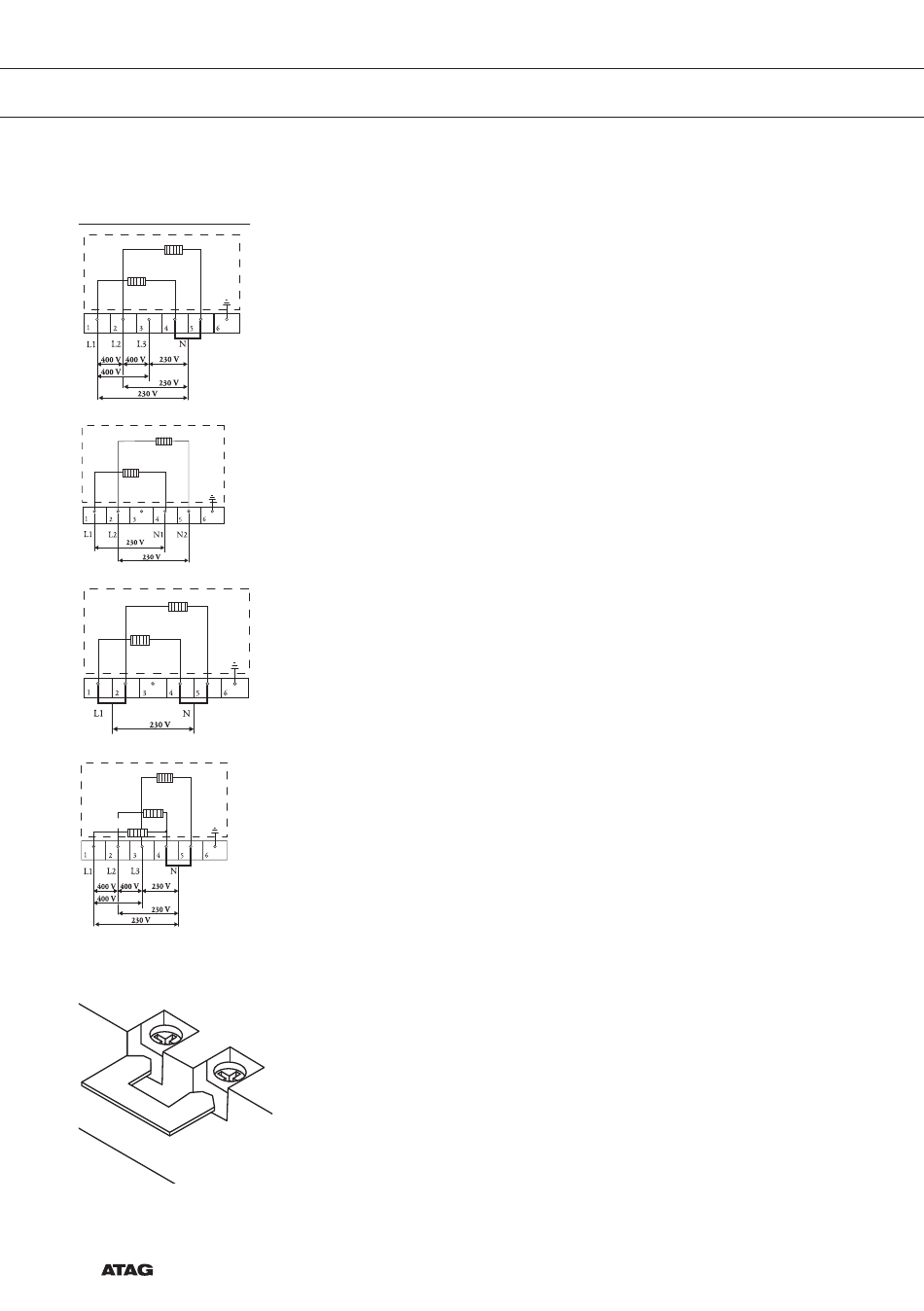

Common connections:
device
• 3 phases with 1 zero connection (3 1N, 400 V ~ / 50 Hz):
inside
▷ The voltage between the phases and the zero is 230V ~. The
voltage between the phases is 400 V ~. Fit a connecting bridge
between connecting points 4-5. Phase 3 carries no load. Your
groups must have fuses of at least
16 A (3x). The connection cable must have a core diameter of at
least 2.5 mm ².
• 2 phase and 2 zero connection (2 2N, 230 V ~ / 50 Hz):
device
inside
▷ The voltage between the phases and the zeros is 230V ~. Your
group must have fuses of at least 16 A (2x). The connection
cable must have a core diameter of at least 2.5 mm².
Special connections:
• Single phase connection (1 1N, 230 V ~ / 50 Hz):
device
inside
▷ The voltage between the phase and the zero is 230V ~. Fit
connecting bridges between connecting points 1-2 and 4-5.
Your group must have a fuse of at least 32 A. The core diameter
of the connecting cable should be at least 6 mm².
Connection for hobs with 5 cooking zones:
appliance
interior
• 3 phases with 1 zero connection (3 1N, 400 V ~ / 50 Hz):
▷ The voltage between the phases and the zero is 230V ~. The
voltage between the phases is 400 V ~. Fit a connecting bridge
between connecting points 4-5.
The groups must have fuses of at least 16 A (3x).
The connection cable must have a core diameter of at least
2,5 mm².
The bridges on the connecting block can be used to create the required
connections, as indicated in these illustrations.
Fix the cable with a pull relief and close the cover.
Connecting point, wall power point and plug must be accessible at all
times.
