INSTALLATION INSTRUCTIONS
Installation dimensions
All manuals and user guides at all-guides.com

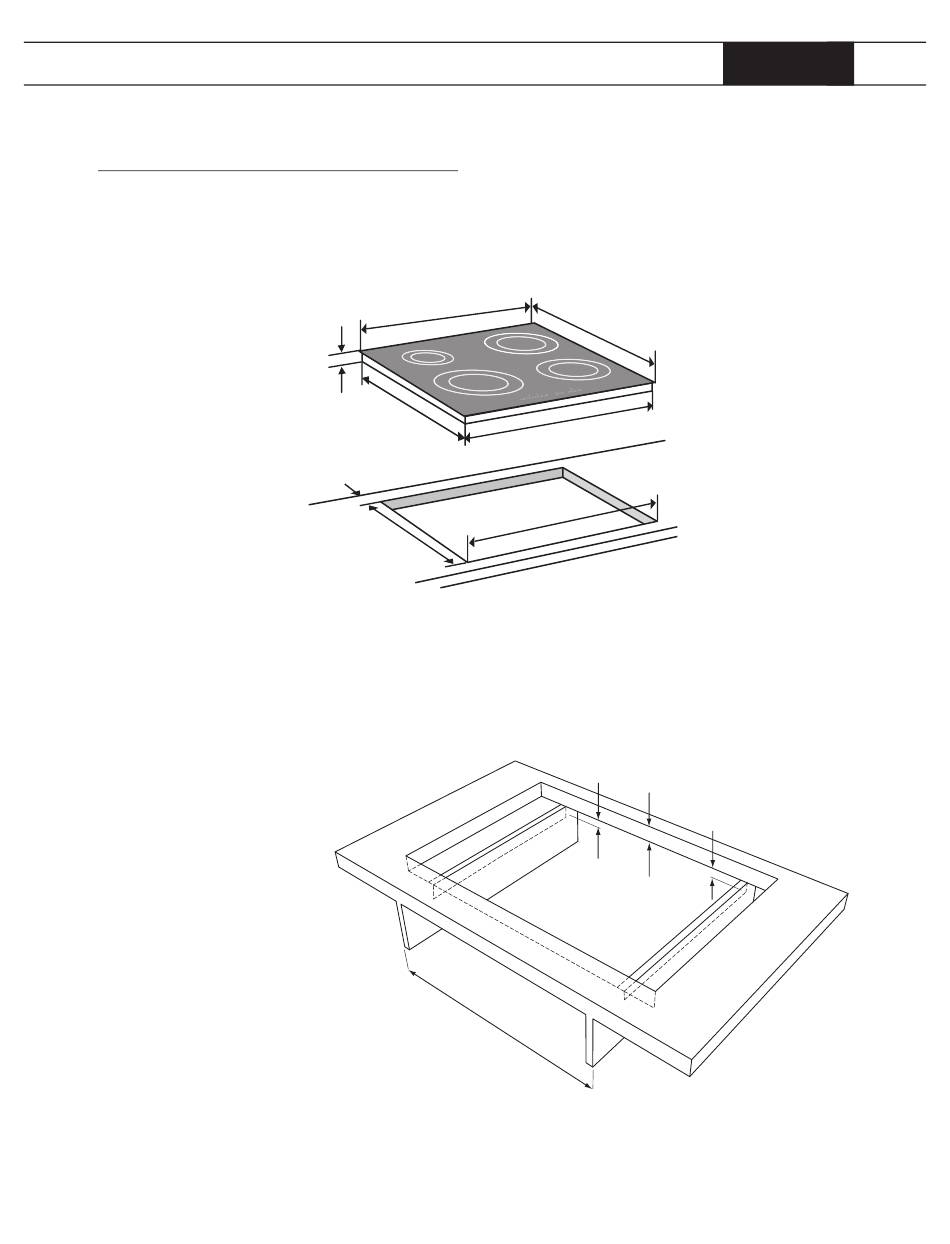

Th e dimensions and recesses are shown in the illustrations beneath.
600
46
484
min.40
490
If the hob is wider than the cupboard, with a worktop less than
46 mm thick, saw a cut-out in both sides of the cupboard, so that
the appliance is free of the cabinet.
Installation dimensions inside
the cabinet
x<46 mm: y = 46 mm - x
x>= 46 mm: y = 0 mm
GB 26
510
554
560
Y
600
General
X
Y
