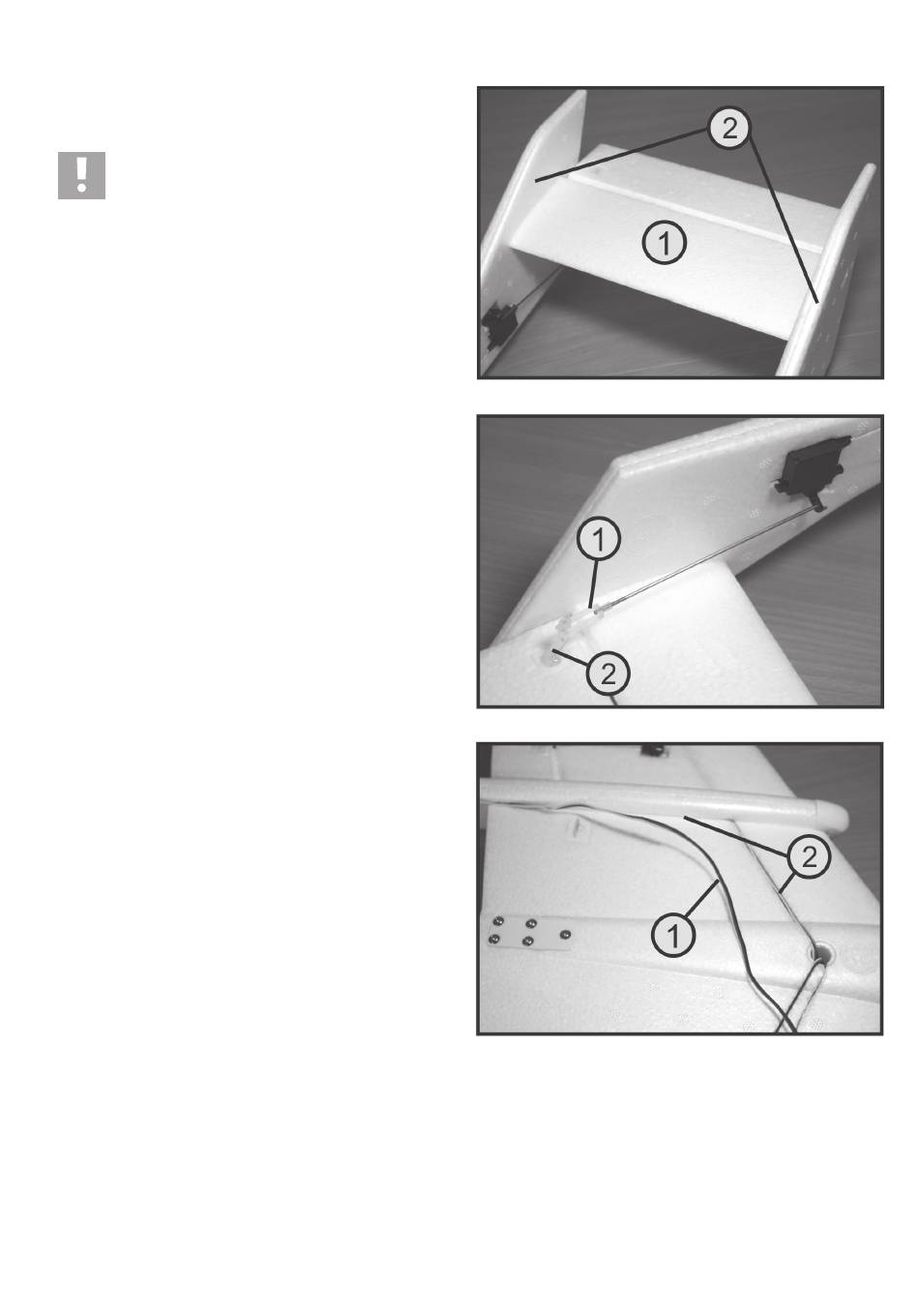

c) Elevator Installation and Linkage
Remove the protective film strips from the elevator(1) sides and the inner sides
of the tail boom (2).
Bend the tail booms slightly apart and glue the elevator between them.
Caution:
The rudder horn of the elevator unit has to point downwards!
Hook the fork head (1) into the middle rudder horn hole(2) .
Install the servo cable of the elevator servo (1) in the gap (2) between the tail
boom and the wing.
Then pull the cable in the wings' cable duct to the feedthrough and push it
through.
34
All manuals and user guides at all-guides.com
Figure 9
Figure 10
Figure 11
