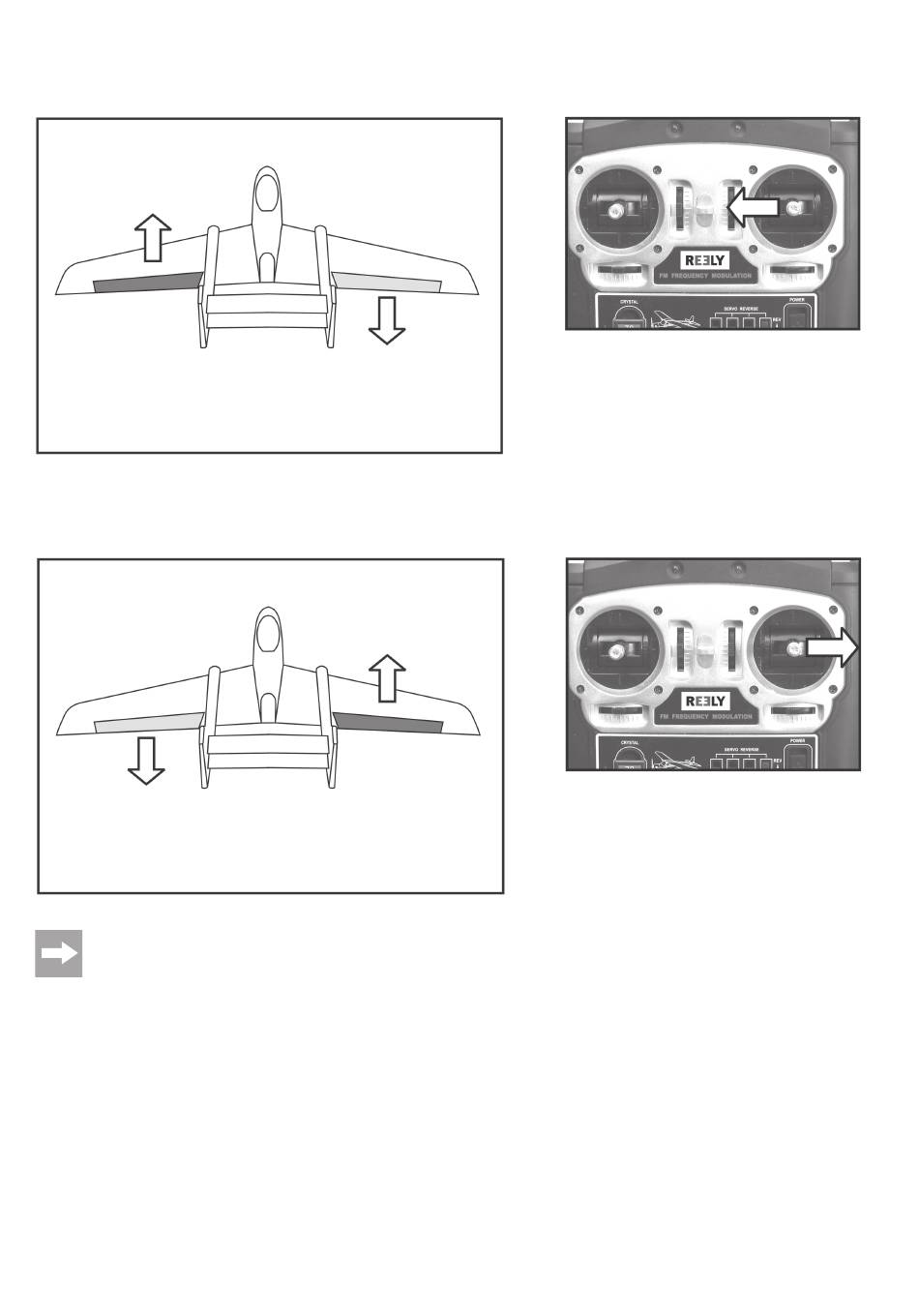

Aileron function:
If the control rod for the elevator and aileron functions (see Fig. 3, Pos. 4) is moved to the left, the left aileron must break out to the top and the right aileron to the
bottom.
If the control rod for the elevator and aileron functions (see Fig. 3, Pos. 4) is moved to the right, the left aileron must break out to the bottom and the right aileron
to the top.
If the aileron reacts opposite to the function described above, you may change the direction of the aileron servo with the reverse switch (see Fig. 3,
Pos. 12).
All manuals and user guides at all-guides.com
Figure 20a
Figure 21a
Figure 20b
Figure 21b
39
