4 User Instructions
Check Before Each Use
1 The suction unit should not be damaged.
2 The suction unit should be clean.
3 All parts should be properly assembled (Canister, Tubes etc.).
4 Check that a suction catheter is attached to the patient
suction tube or suction adapter. Do not use the suction
tube or suction adapter without a suction catheter attached.
5 Perform Device Test after each reassembly (see Chapter 6).
6 Check Battery level: While performing the Device Test the
Battery level should not illuminate RED. If the Battery
level illuminates RED, the Battery should be charged. See
Charging Instructions (Chapter 5).
Note
Always have an extra Canister available in case the first
Canister is filled completely, or the suction unit tips on
to its side and the Filter becomes saturated and stops the
suction/flow.
Warning
If the Canister fills and the shut-off mechanism
activates, and you have no spare Canister ready for
immediate replacement, shut off LCSU 4 and utilize
alternative methods according to local protocol to clear
patient's airway. Continued efforts to suction with a full
canister may cause overflow that will prevent suctioning,
damage the pump, void the unit warranty, and lead to
prolonged downtime.

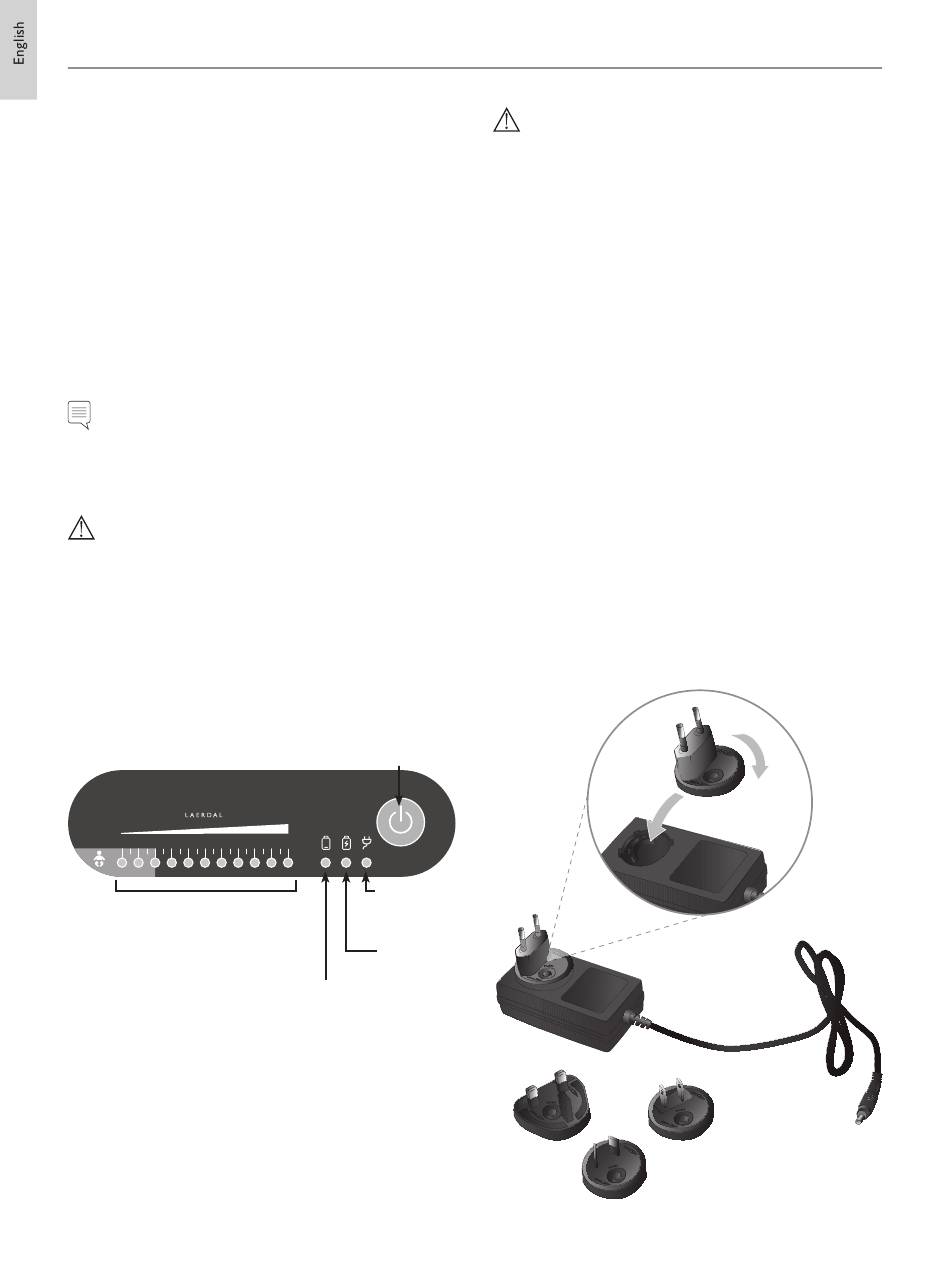

Control Panel and Indicator Symbols
HIGH VACUUM - HIGH FLOW
Compact Suction Unit 4
mmHg
50 100 150 200 250 300 350 400 450 500 550
Suction Level Setting
Suction Level Setting
•
The Scale illuminates 'Green' to indicate the level of
vacuum/suction strength
•
The 'Light Blue' area indicates reduced suction levels for
infants and small children
The LEDs have two brightness levels. Half illuminated
indicates a halfway vacuum level, e.g., 175 is indicated by a fully
illuminated 150 and a half illuminated 200 LED.
8
ON / OFF switch
External
power
connected
Battery
charging
Battery low
Warning
If the Low Battery symbol illuminates, immediately
switch to an external power source to avoid interrupted
operation. If the LCSU 4 does not receive external
power, the Low Battery indicator will remain on and the
unit performance will drop rapidly leading to complete
LCSU 4 shutdown.
Power Source Options
Internal Battery Operation
LCSU 4 is equipped with an internal Battery, NiMH 12 volt
1.6 Ah.
The LCSU 4 will run on battery power, unless connected to
external power. Unplugging the external power source whilst
running will stop the unit from operating. To restart, press the
on/off switch.
External Power Source
LCSU 4 can be run from external power by use of the AC/
DC Adapter Charger included. Plug the DC connector of the
AC/DC Adapter Charger into the LCSU 4 12V DC Power
Input Connection. Plug the AC plug to mains power socket. It
is normal that the adapter becomes warm when in use.
AC/DC Adapter Charger (Cat. No. 886111)
