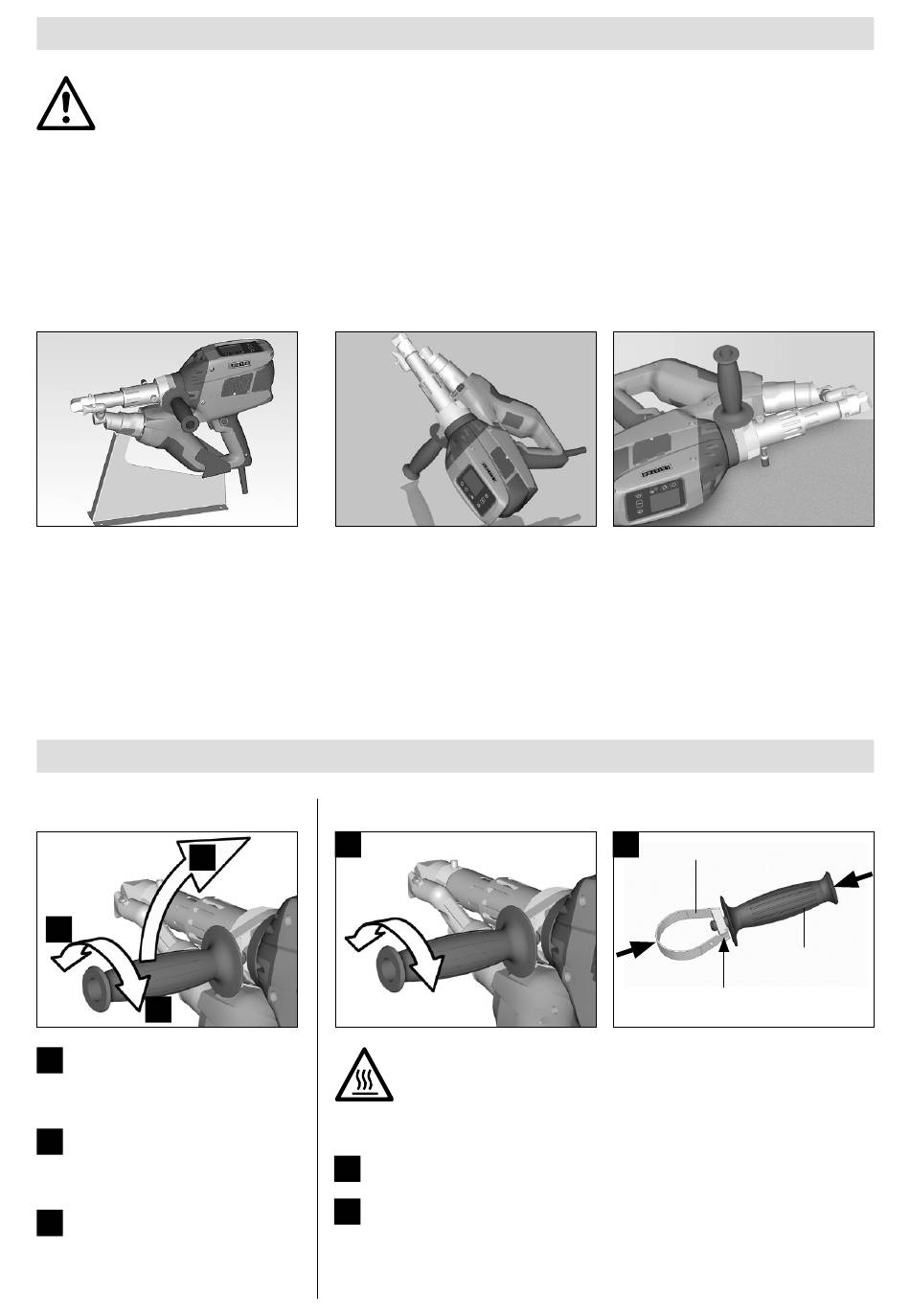

Work environment / Safety
Before putting into operation, check power supply cord (13) and connector as well as extension
cable for electrical and mechanical damages.
The extrusion welder must not be used in areas where there is danger of explosion or flammable
materials. Ensure a safe posture during work. The power cable and filler rod must be free to move
and must not obstruct the user or third parties during work.
Place extrusion welder on a fire resistant base. Hot metal parts and hot streams of air must be
kept at a safe distance from the base and walls.
Workplace
Leister provides a stand for
commissioning and holding
the extrusion welder
Guide handle
Setting the guide handle
1
3
Loosen clamp by turning
1
the guide handle (6) anti-
clockwise
Move the guide handle (6)
2
into the desired operating
position.
Tighten clamp again by turning
3
guide handle (6) clockwise
30
When not welding, the drive should be switched off with the drive on/off
switch (2).
Place the extrusion welder with correspondingly set and firmly tightened
guide handle (6) on a stable, fireproof base or buffer bolt (32) as shown
in the illustration.
Removing/Fitting the handle
1
2
Removing the handle
1
2
To fit the handle, follow the steps in reverse order.
Risk of burning! Let the device cool
Turn the handle (6) anticlockwise to loosen the clamp.
Press on the handle (6) and the gripper clamp (20) to open the lock
(see arrows). Remove the handle (6) using the gripper clamp (20).
2
Gripper clamp (20)
Handle (6)
Lock
