The colours shown are not subject to international
standards. Always check the correct connection.
In the event that the earthing system is IT follow
the configuration steps in 6. Configuring IT network
section.
3. Screw
In the event that the supply scheme does not include a neutral line connection with a voltage lower than
145 V, follow the next configuration steps:
Bi-phase setup (2P)
From left to right:
L1 (Current line)
N (Current line)
Protective earth
4. Closure of the device (I-7)
Step 4.1: Reconnect the ribbon cable to the cover.
Step 4.2: Close the front cover, taking special care
with the fitting and ensuring that the O-ring remains
in place.
Step 4.3: Secure the cover by tightening the Torx
screw.
1. Screw
2. Screw

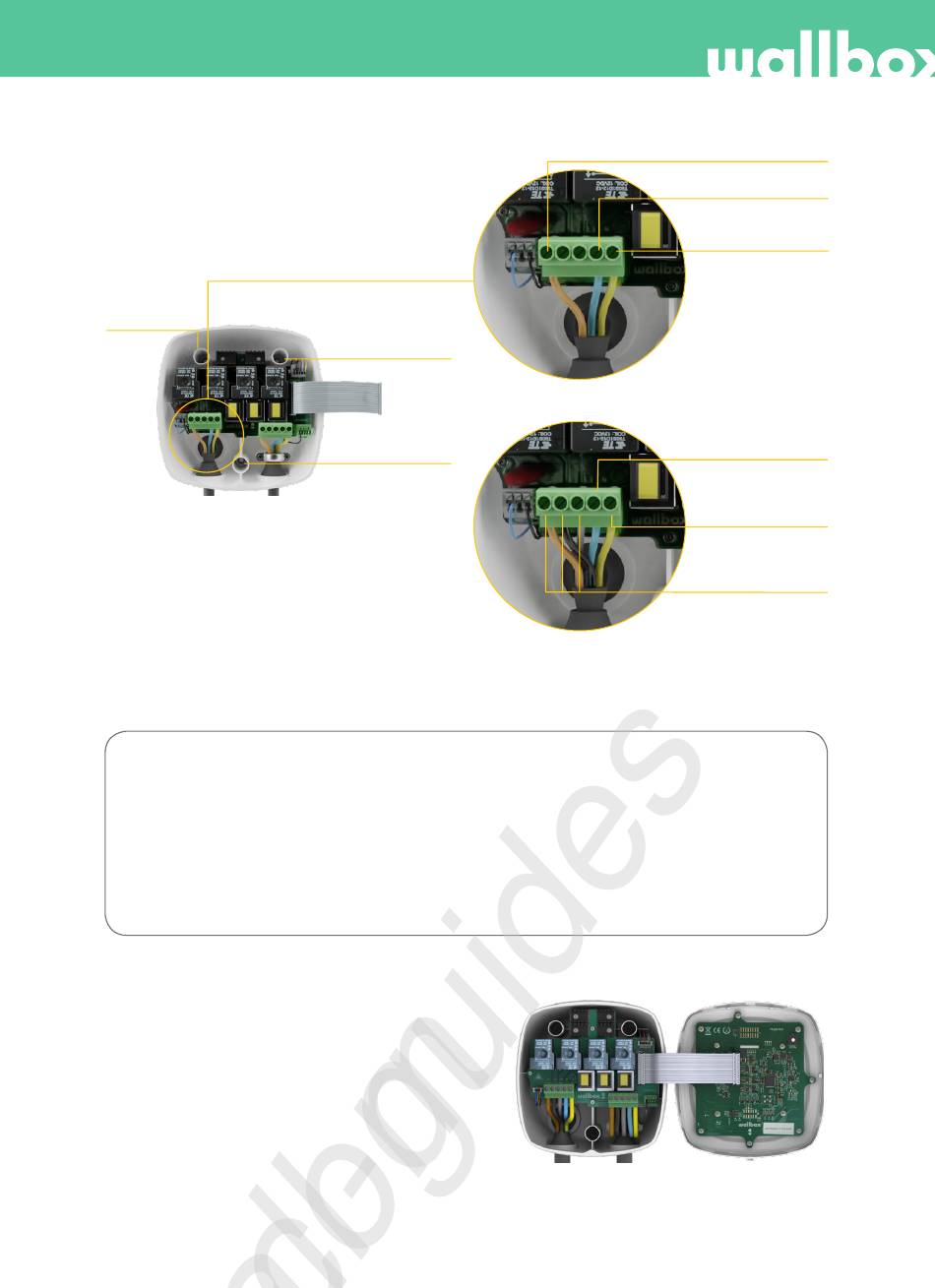

I-6. 1
I-6.2: Single-phase setup (1P)
I-6.3: Three-phase setup (3P)
I-7
L1 (Current line)
N (Neutral line)
Protective earth
N (Neutral line)
Protective earth
L1, L2, L3
(Current lines)
