technical features
Product Technical Sheet
Supplier name
Manufacturer's model ID
Temperature control class
Energy efficiency contribution (%) for space heating
If an ATAG external sensor is added:
Temperature control class
Energy efficiency contribution (%) for space heating
In a system with 3 zones with 1 ATAG Oz and 1 rATAG Cube:
Temperature control class
Energy efficiency contribution (%) for space heating

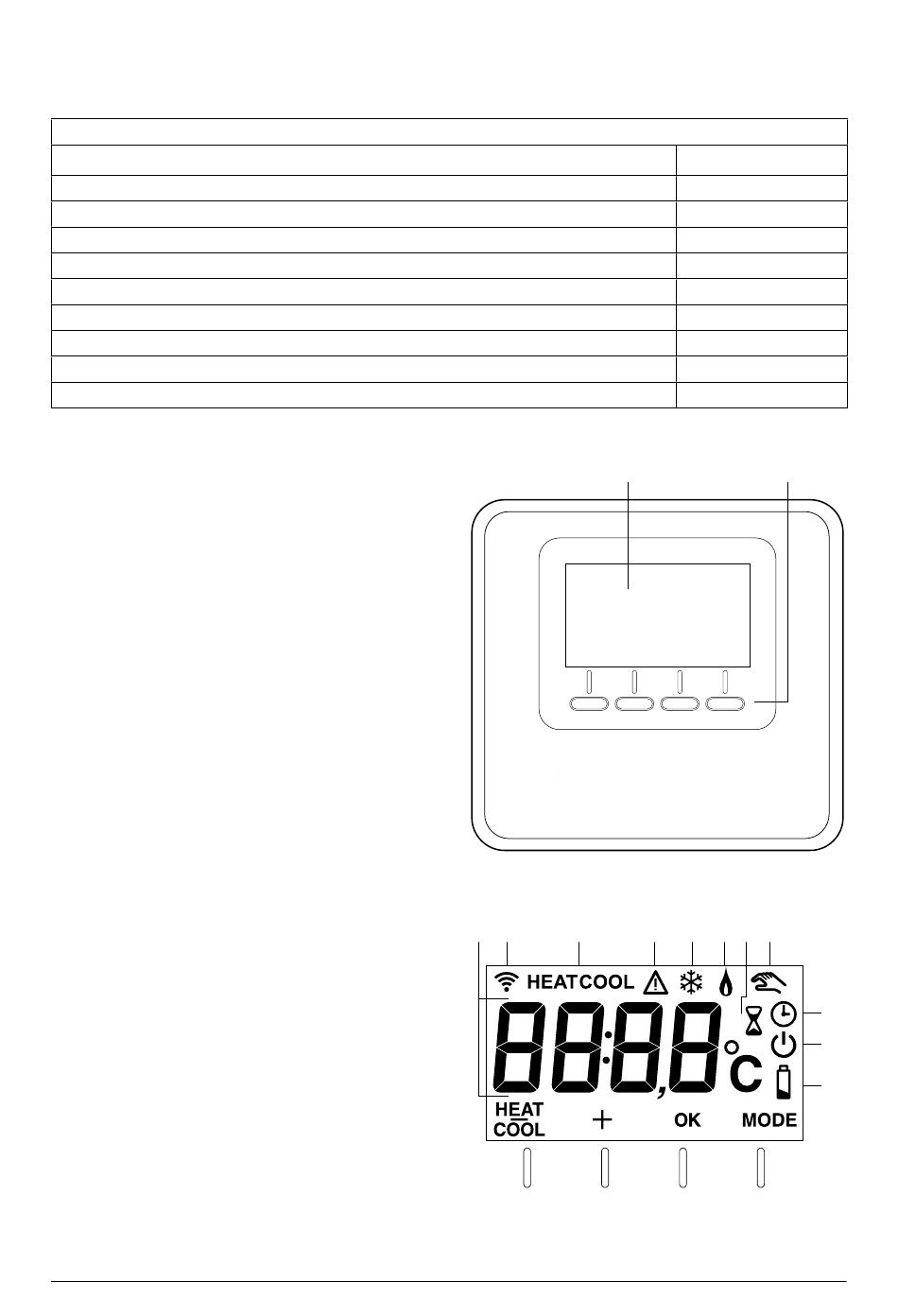

Room sensor:
1. display
2. keys
Display:
A. Detected room temperature
B. WiFi device detected on bus
C. Heating/cooling mode indication
D. Fault
E. Cooling/anti-freeze mode in con-
trolled zone
F. Heat request
G. Timer-based modification of
room temperature set-point in the
schedule programming (when ena-
bled)
H. Manual mode active
I. Programmed mode active
(heating/cooling as scheduled on the
system interface)
L. Controlled zone OFF
M. Battery low charge
N. Mode key ("MODE")
O. Confirm key (OK)
P. Increase temperature setting key (+)
Q. Decrease temperature setting key (-)
Set mode to heating (HEAT) or cool-
ing (COOL).
4 - GB
1
Q
P
A
B
C
Q
P
ATAG
CUBE
V
+3%
VI
+4%
VIII
+5%
2
O
N
D E
F
G
H
O
N
I
L
M
