Transmitter Controls
1 Transmitter aerial
2 Toggle switch „Gyro"
3 Toggle switch „Throttle hold"
4 Control stick for nod and roll function (Mode 2)
5 Trim button for nod function
6 Trim button for roll function
7 On/off switch
8 „INC (+)" button
9 „DEC (-)" button
10 „CLEAR (-)" button
11 Display
The precise functions of the four toggle switches and the associated setting options are described in chapter
14.
All manuals and user guides at all-guides.com

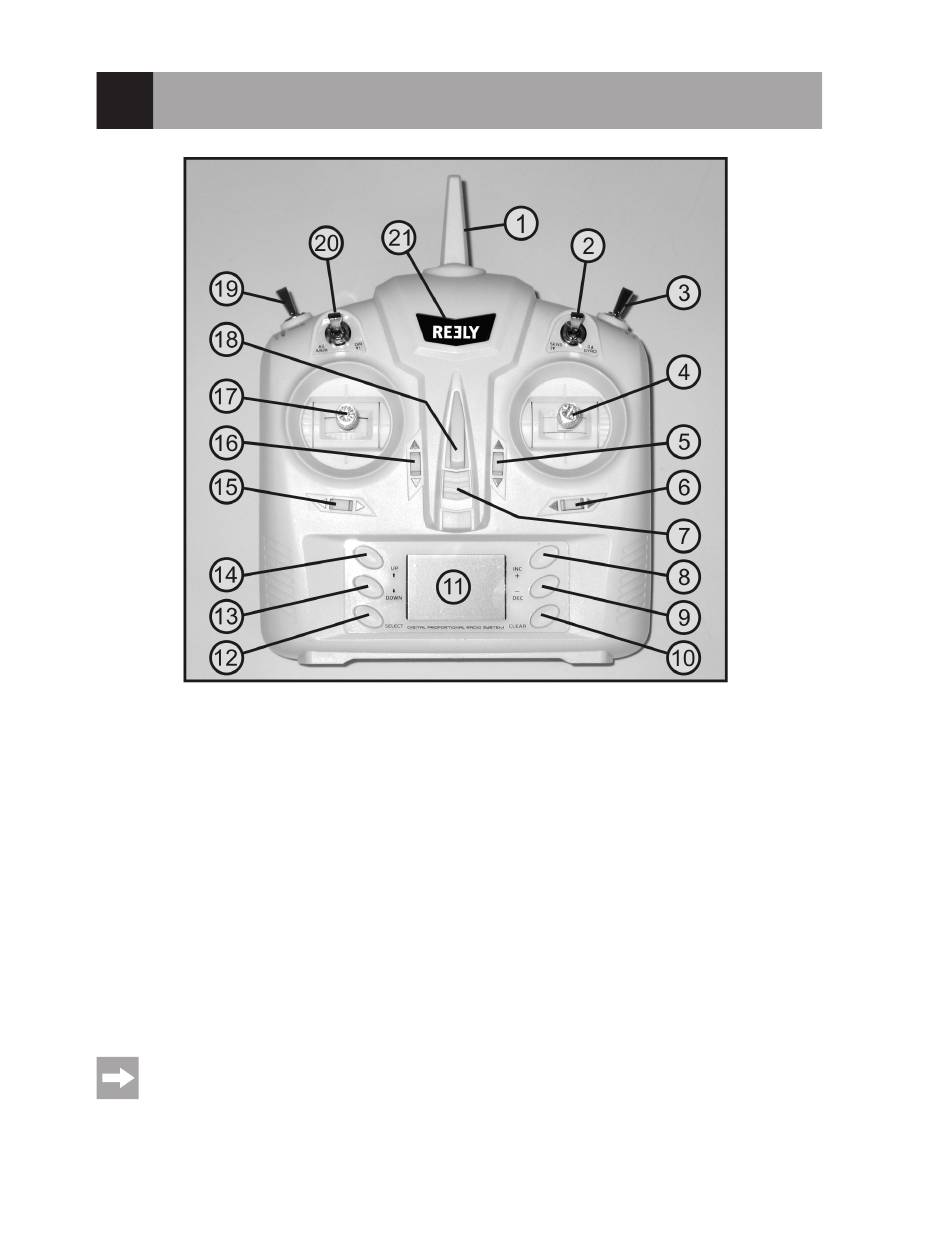

Figure 1: View from the front
12 „SELECT (-)" button
13 „DOWN" button
14 „UP" button
15 Trim button for tail function
16 Trim button for pitch function
17 Control stick for pitch and tail function (Mode 2)
18 Carrying belt eyelet
19 Toggle switch „Flight Mode"
20 Toggle switch „Dual Rate"
21 LED Display
