What is Included
•
Ovation E-910FC
•
Seetronic powerkon IP65 power cable
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
Connection
AC Live
AC Neutral
AC Ground
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Power Linking
It is possible to power link Ovation E-910FC products. See the table below for the current draw at each voltage and
frequency:
Current Draw
Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.
Mounting
Before mounting this product, read the
mounting clamps can support the weight of the product. For the Chauvet line of mounting clamps, go to:
http://trusst.com/productcategory/truss-clamps/.

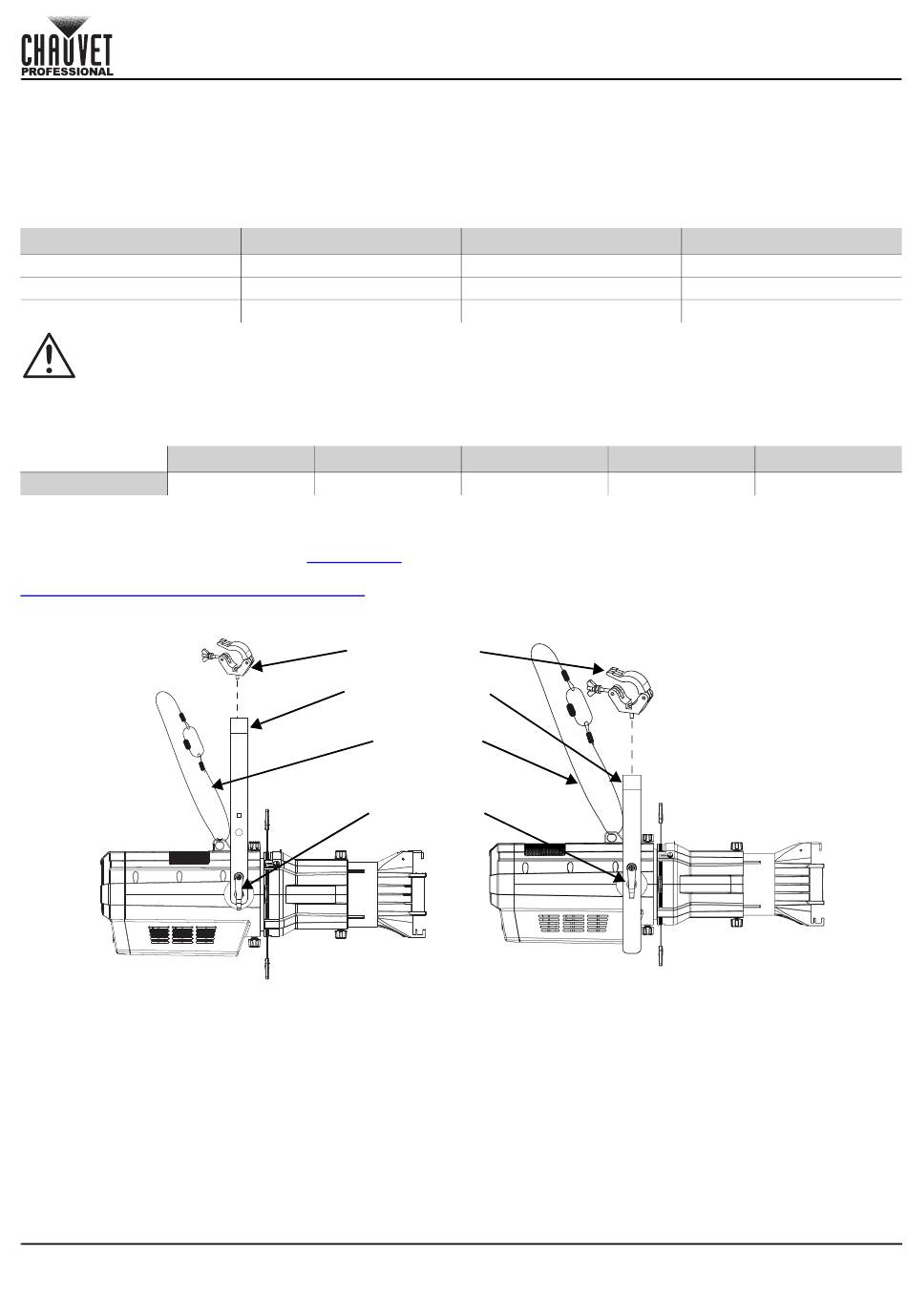

Mounting Diagram
Lens Tubes
The following lens tubes are available for purchase:
•
19°, 26°, 36°, and 50° with gel frame (6.25 in/159 mm accessories)
•
14°, 15–30° and 25°–50° zoom gel frame (7.5 in/191 mm accessories)
Ovation E-910FC QRG Rev. 21
QUICK REFERENCE GUIDE
Wire (U.S.)
Black
White
Green/Yellow
100 V, 60 Hz
120 V, 60 Hz
2.17 A
1.79 A
Safety
Notes. Use at least one mounting point per product. Make sure the
Mounting clamp
Mounting bracket
Bracket adjustment
•
Soft-focus filter
•
Quick Reference Guide
Wire (Europe)
Brown
Green/Yellow
208 V, 60 Hz
1.03 A
Safety cable
hand shank
Blue
230 V, 50 Hz
0.94 A
Alternate Short Mounting
EN
Screw Color
Yellow/Brass
Silver
Green
240 V, 50 Hz
0.90 A
