02 ENG_Paddle_8390_0207
9
Operation, Setting Speed
(depending on equipment)
Set the recommended speed with the knurled
wheel (7).
Grinding disc, cutting disc, cup grinding
wheel: high speed setting
Brush: middle speed setting
Surface dressing discs: low to middle speed
setting
Apply only light pressure to the tool when working
at low speeds.
10 Operation, Fitting Tools
Before any tool changing operation,
always remove the plug from the mains
supply socket and check that the angle
grinder is switched off and that the
spindle has come to a halt.
Locking the spindle
Press in the spindle-lock button (2) and turn the
spindle by hand until the spindle-lock button can
be felt to engage in position.
10.1

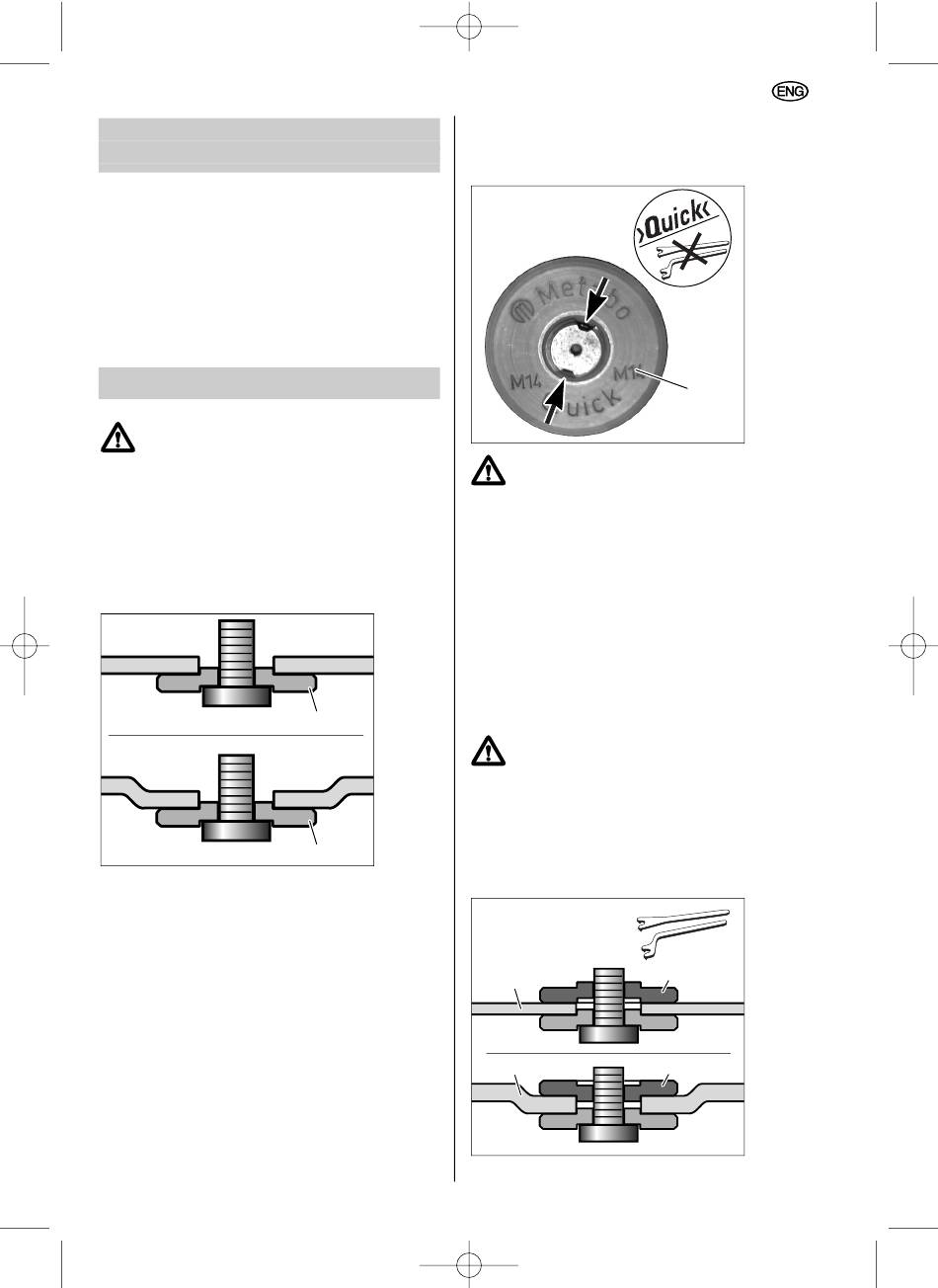

Fitting cutting and grinding discs
Locate the inner flange (10) on the spindle, as
illustrated, ensuring that the inner flange cannot
turn on the spindle.
Position the cutting disc or the grinding disc on
the inner flange, as illustrated, ensuring that the
cutting disc is supported evenly by the inner
flange. When cutting, the sheet metal flange on
the cutter disc should be resting on the inner
flange.
08.11.2007
15:40 Uhr
All manuals and user guides at all-guides.com
10
10
Seite 17
10.2
Securing/releasing the Quick clamping
nut (depending on equipment)
Securing
For tools which are thicker than 8 mm
(5/16") in the clamping area, use the
clamping nut (12) with the pin spanner (13)
instead of the Quick clamping nut (11).
Fit the Quick clamping nut (11) in the grooves on
the spindle as illustrated. Lock the spindle in
position. Turn the Quick clamping nut (11)
clockwise by hand until tight. Tighten the Quick
clamping nut by turning the grinding wheel firmly
in a clockwise direction.
Releasing
After switch-off, the angle grinder runs on for
approx. 5 seconds. Press the spindle-lock button
(2) shortly before the grinding tool comes to a
final halt and the Quick clamping nut releases
itself.
Using the spindle-lock button (2) to stop
the spindle is only permitted if the
Quick clamping nut is in use!
Screw the Quick clamping nut off.
10.3
Securing/releasing the clamping nut
(depending on equipment)
Securing
A
B
Turn the clamping nut (10) onto the spindle:
ENGLISH
11
12
12
17
