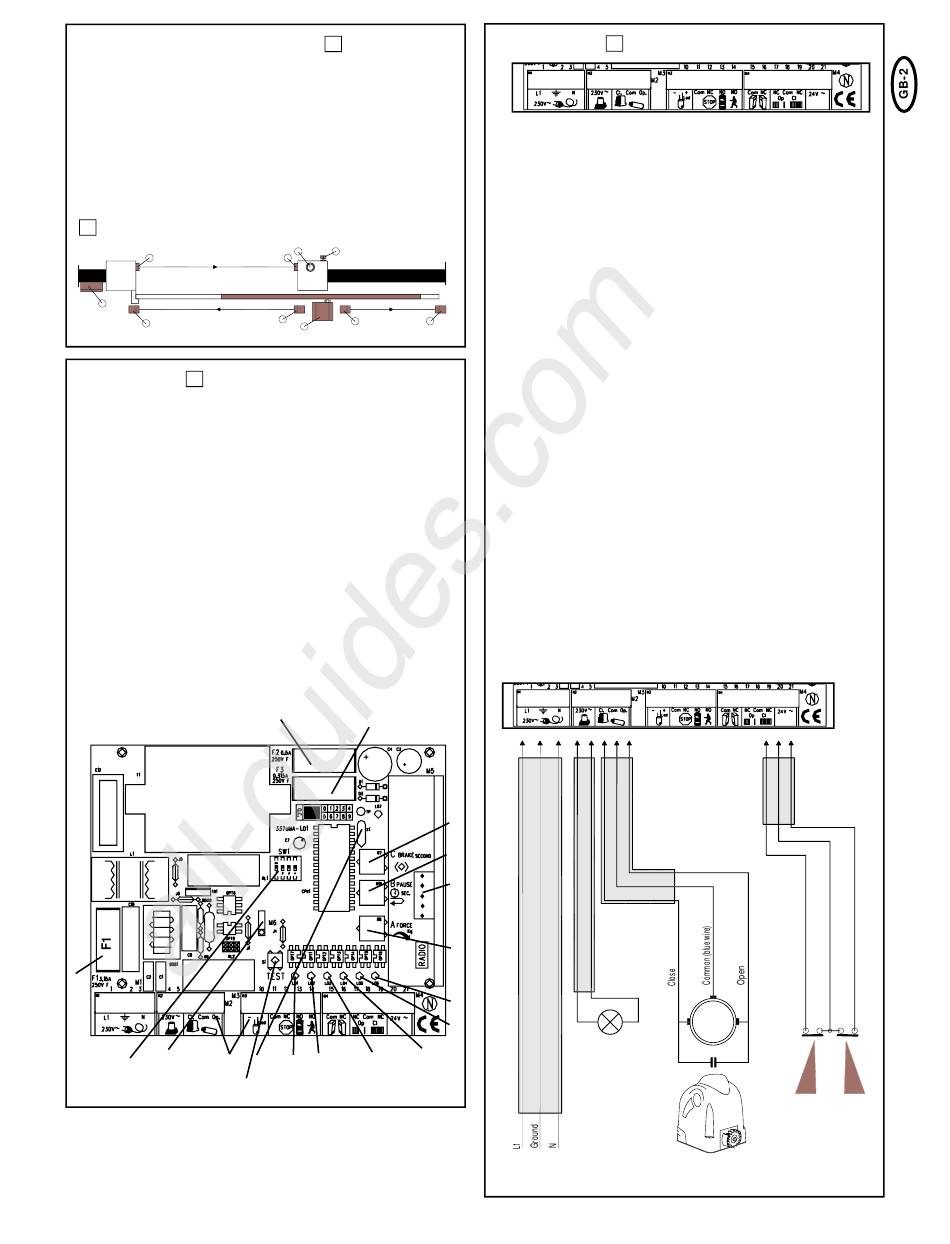

TYPICAL SYSTEM CONFIGURATION
(1) Drive with control unit
(2) Control unit (if installed externally)
(3) Light barrier transmitter
(4) Light barrier receiver
(5) Flashing lamp
(6) Antenna (optional)
(7) Key-operated switch (optional)
(8) Light barrier (optional)
(9) Light barrier (optional)
1
3 3
2 2
8 8
2
INSTALLATION
(1) F1
Main fuse (230 V)
(2) F2
Additional fuse 24 V AC
(3) F3
Central fuse (logic circuitry)
(4) C
Brake
(5) B
Pause (gate pauses when open)
(6) M5
Receptacle for radio (model 801719)
(7) A
Opening and closing force
(8) LED 5
Limit switch monitoring
(9) LED 6
Limit switch monitoring
(10) LED 4
Light barrier (monitoring)
(11) LED 3
B button input
(12) LED 2
A button input
(13) LED 1
STOP (emergency stop)
(14) LED 7
Diagnostics (general)
(15) M1 ÷ M4
Terminal connection
(16) M6
Accessory connection (not required)
(17) SW1
Program switch (DIP switch)
(18) TEST
Test button (opens gate completely)
1
16
17
15
18
All manuals and user guides at all-guides.com
1
5 5
7 7
4 4
8 8
9 9
9 9
1 1
2
3
F2
F3
10
11
13
12
14
3
CONNECTIONS
M1
1- L
2- Earth
3- N (neutral conductor)
4- L
5- L
M2
6- L Close
7- N (neutral conductor)
8- L Open
M3
9- LED –
10- LED +
11- COM (common)
12- STOP (normally closed)
13- Button A (normally open)
14- Button B (normally open)
15- COM (common)
16- LS contact (normally closed) Light barrier connection
M4
17- OPEN (normally closed)
18- COM (common)
19- CLOSE (normally closed)
20- L
21- L
4
5
6
7
3x1,5mm
8
9
Flashing Lamp
3x1,5mm
230V~ ±10% 50Hz
FEEDER CABLE
230Volt
L 230V/ 50Hz +/- 10%
Supply for control unit, drive,
accessories
230Volt~
Flashing lamp (230Volt~)
Drive connection 230 V AC, 700 VA
max.
Capacitor is connected
across 6 and 8
Gate status LED
Shows whether gate is OPEN or
CLOSED
Pedestrian button
A = open gate completely
B = open gate partially
Limit switch connection
Pre-installed for "right hand"
Accessories apply 24 V AC ±5%
500 mA
3x1,5mm
M
Opening
limit-stop
LIMIT SWITCH
Closing
limit-stop
