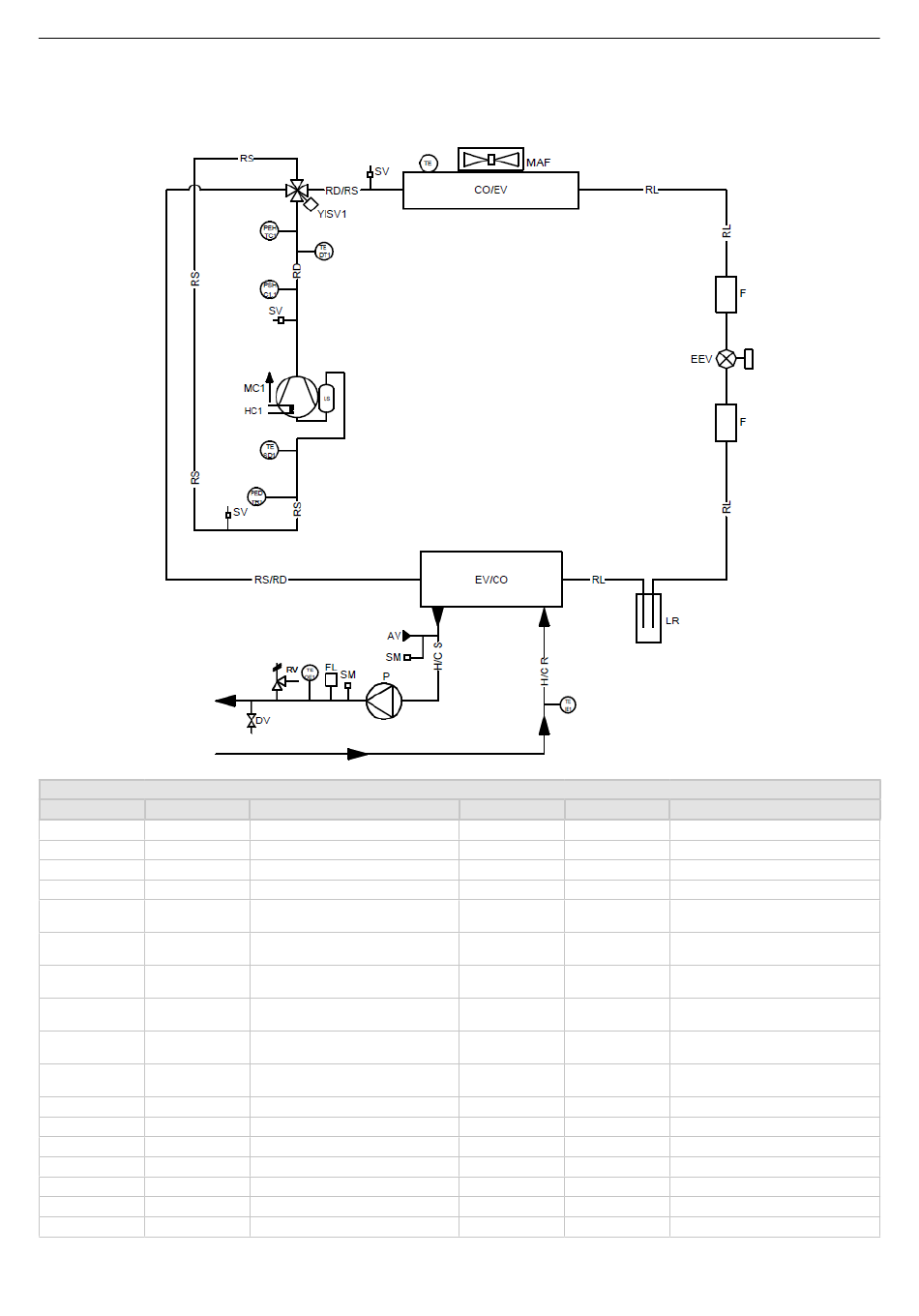

5.8 FUNCTIESCHEMA'S
5.8.1 i-32V5 04 / 06 / 08 / SL08
CODE
NUM.
MC
1
CO/EV
EV/CO
EEV
YISV
1
LR
F
SV
HC
1
MAF
MF
LS
RS
RD
RL
RD/RS
RS/RD
22
DESCRIPTION
COMPRESSOR
CONDENSER (IN CHILLER MODE)
EVAPORATOR (INCHILLER MODE)
ELECTRONIC EXPANSION VALVE
4-WAY CYCLE REVERSING VALVE
LIQUID RECEIVER
FILTER
FILLING CONNECTION
CRANCKASE HEATER
AXIAL FAN
MUFFLER
LIQUID SEPARATOR
INTAKE LINE
DELIVERY LINE
LIQUID LINE
DELIVERY INTAKE/LINE
INTAKE/DELIVERY LINE
i-32V5
Omkeerbare lucht/water warmtepompen met axiale ventilatoren
LEGEND
CODE
NUM.
H/CS
H/CR
PEH TC
PED TR
TE
TE SD
TE DT
PSH C
1.1
TE IE
TE OE
DV
RV
FL
P
AV
SM
DESCRIPTION
UTILITY WATER OUTLET
UTILITY WATER INLET
1
HIGH PRESSURE TRANSDUCER
1
LOW PRESSURE TRANSDUCER
OUTDOOR AIR TEMPERATURE-
PROBE
INTAKE LINE TEMPERATURE
1
PROBE
COMPRESSOR DISCHARGE TEMPE-
1
RATURE PROBE
AUTOMATIC RESET HIGH-PRESSU-
RE SWITCH
UTILITY INLET TEMPERATURE
1
PROBE
UTILITY OUTLET TEMPERATURE
1
PROBE
DRAIN VALVE
SAFETY VALVE
FLOW SWITCH
PUMP
AUTOMATIC AIR VENTING VALVE
SERVICE SLEEVE
