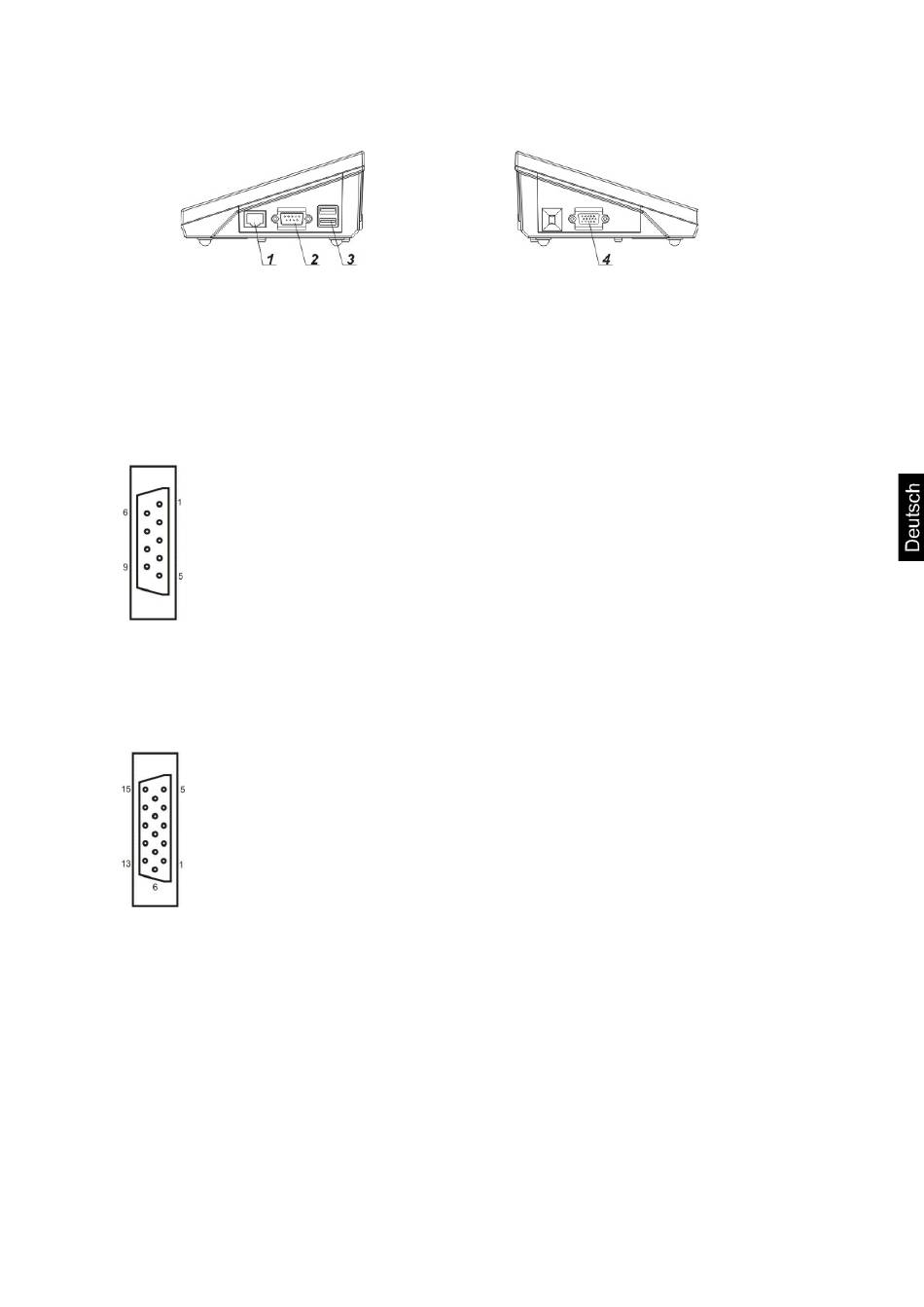

1.2 Contacten/interfaces:
1. Ethernet
2. RS-232 (COM1)
3. USB-poort
Pinvaststelling (aanzicht vooraan):
RS-232 DB9/M (stekker, 9-pin)
Pin2 – RxD
Pin3 – TxD
Pin5 – GND
Digital I/O, RS-232 DSUB15/F (contact, 15-pin)
Pin1 – GNDWE
Pin2 – OUT1
Pin3 – OUT2
Pin4 – COMM
Pin5 – 6÷9 VDC
Pin6 – IN4
Pin7 – IN3
Pin8 – TxD2
Pin9 – 5 VDC
Pin10 – GNDRS
Pin11 – IN2
Pin12 – IN1
Pin13 – RxD2
Pin14 – OUT4
Pin15 – OUT3
16
4. Digital I/O (COM2)
AET/PET/ILT-BA-nl-1631
