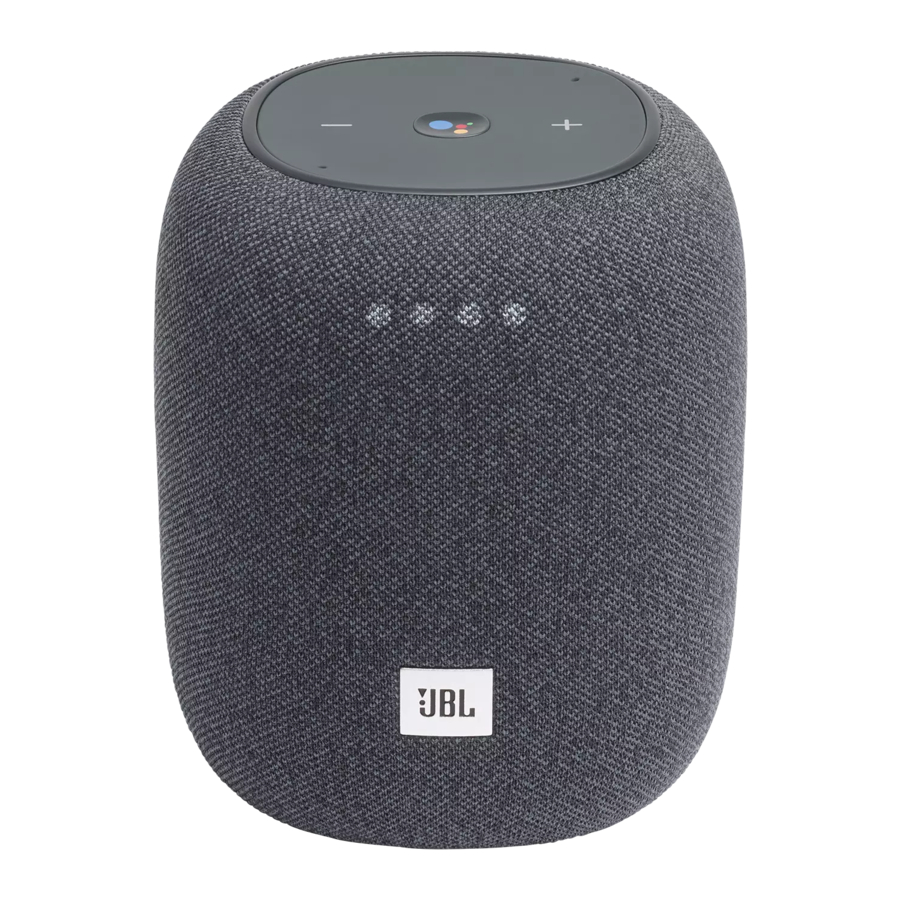

JBL Harman Link Music - Snelstartgids voor Wi-Fi-luidspreker
Inhoud

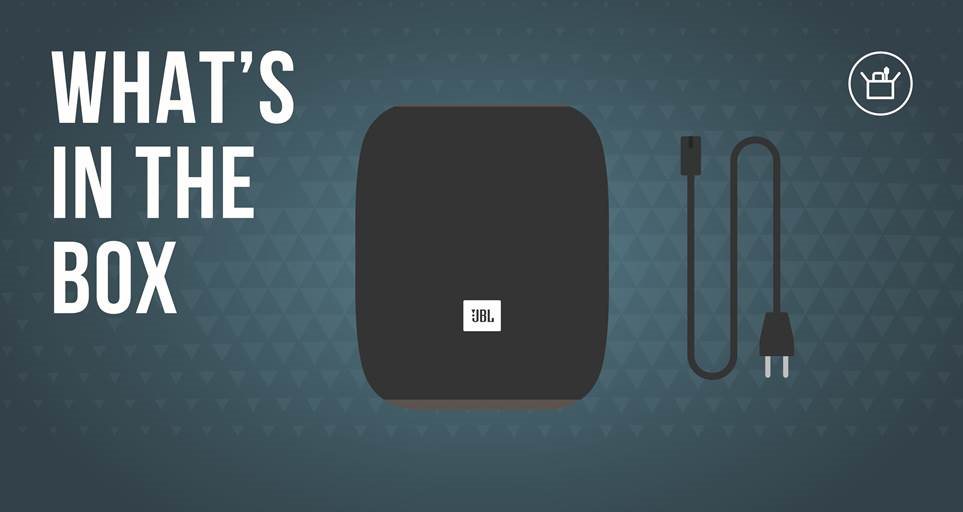

WAT ZIT ER IN DE DOOS

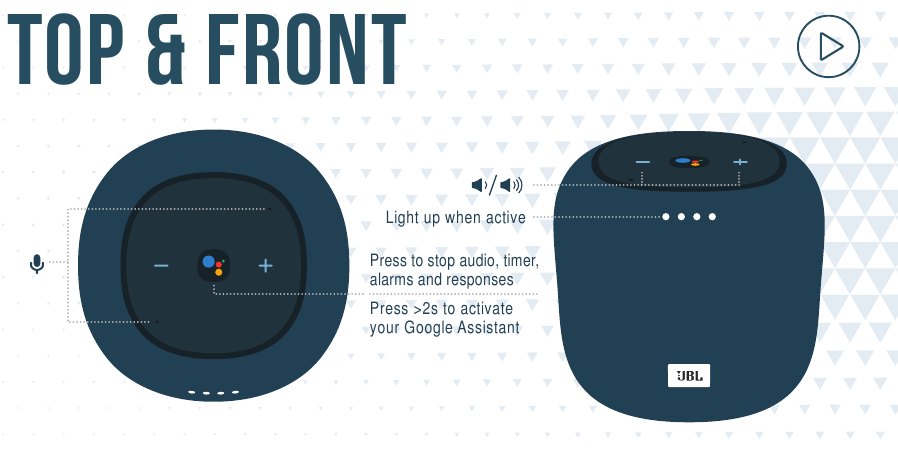

Bovenkant & voorkant

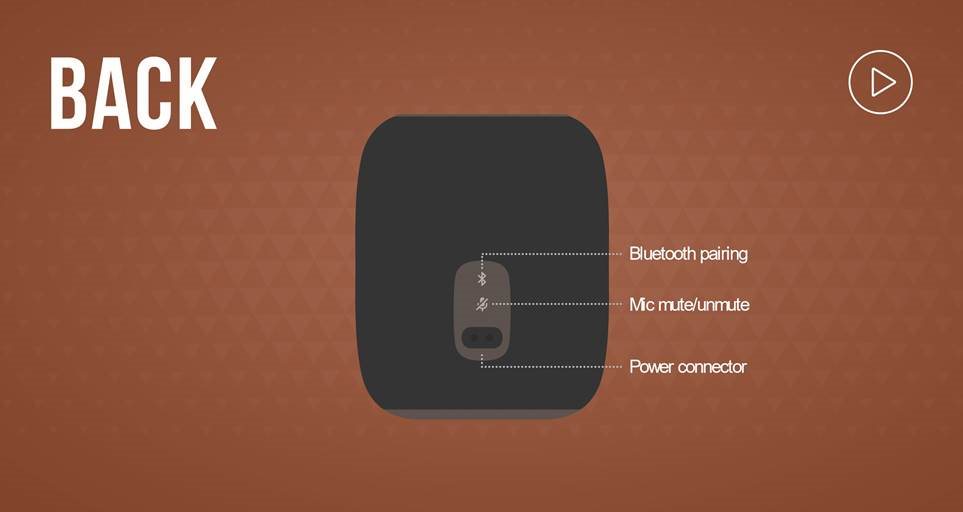

Achterkant

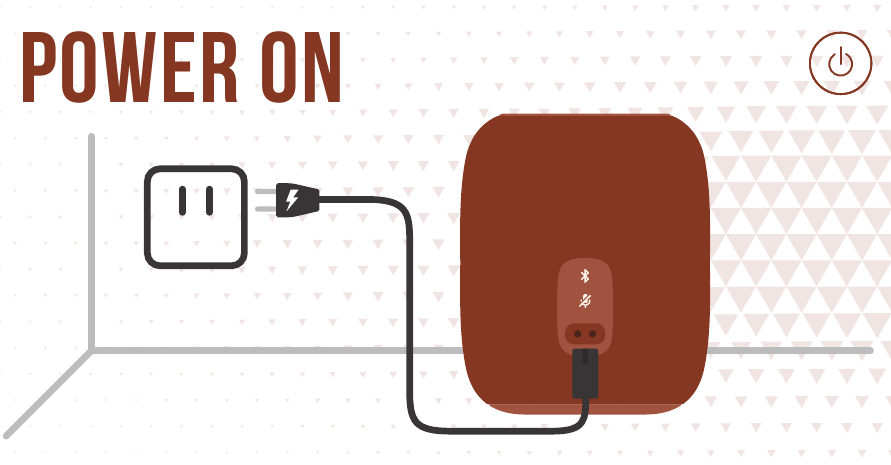

Inschakelen

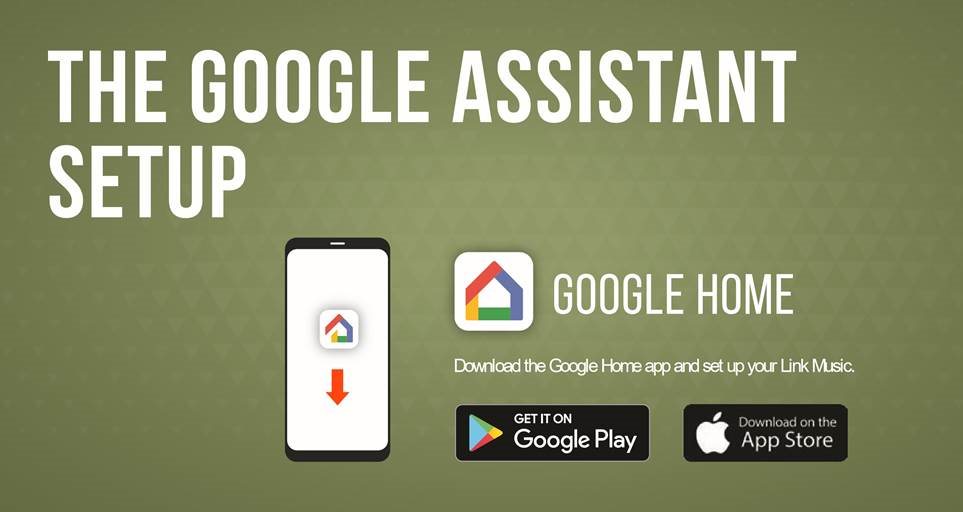

De Google Assistant instellen

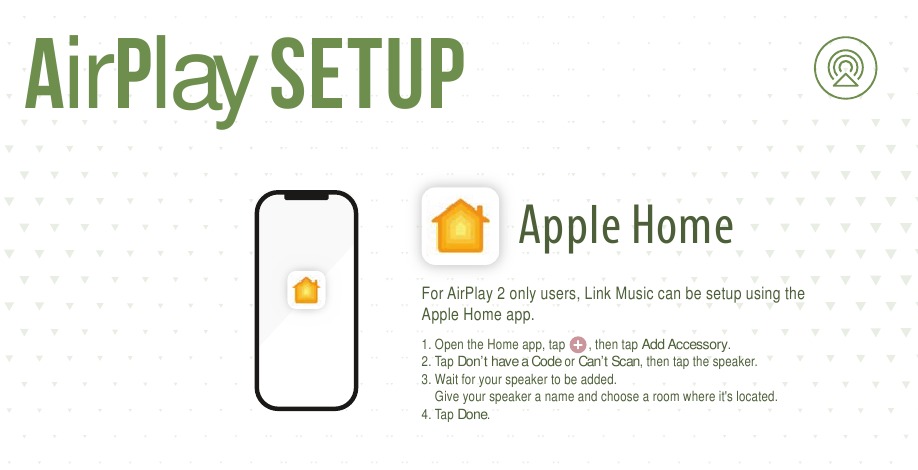

AirPlay instellen

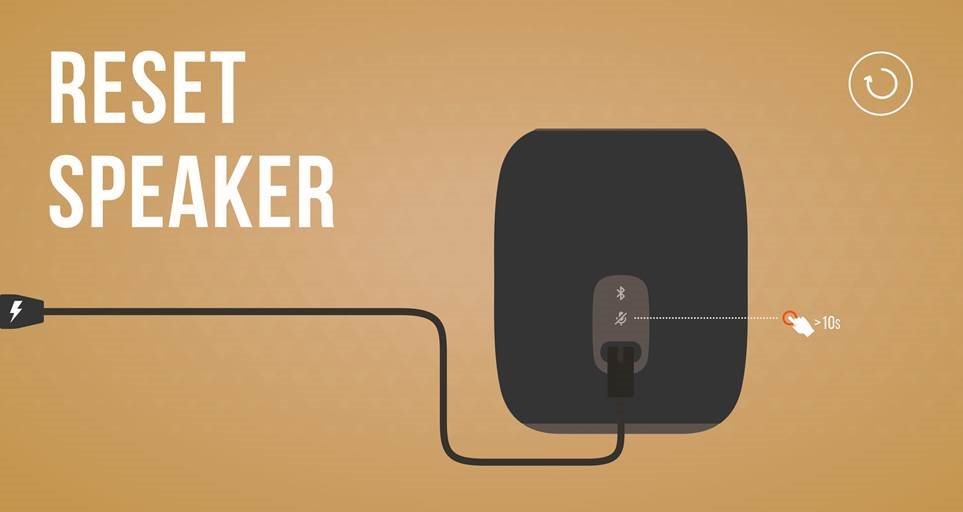

Luidspreker resetten
TECHNISCHE SPECIFICATIES
| Transducer: | 1 x 64mm |
| Output power: | 1 x 20W RMS |
| Frequency response: | 60Hz − 20kHz |
| Signal-to-noise ratio: | >80dB |
| Power input: | 100-240V-50/60Hz |
| Wireless network: | 802.11 a/b/g/n/ac (2.4/5GHz) |
| Bluetooth version: | 4.2 |
| Bluetooth transmitter frequency range: | 2402 − 2480MHz |
| Bluetooth transmitter power: | <12dBm |
| Bluetooth transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| 5G Wi-Fi transmitter frequency range: | 5.150~5.350GHz, 5.470~5.725GHz, 5.725~5.825GHz |
| 5G Wi-Fi transmitter power: | <20dBm (EIRP) |
| 5G Wi-Fi modulation: | OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| 5G Wi-Fi network compatibility: | IEEE 802.11 a/n/ac |
| 2.4G Wi-Fi transmitter frequency range: | 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels) |
| 2.4G Wi-Fi transmitter power: | <19dBm (EIRP) |
| 2.4G Wi-Fi modulation | OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM |
| 2.4G Wi-Fi network compatibility: | IEEE 802.11b/g/n |
| Supported audio formats: | HE-AAC, LC-AAC, MP3, Vorbis, WAV (LPCM), FLAC, Opus |
| Dimensions (Dia x H): | 112 x 134 mm |
| Weight: | 730g |
Referenties
Download handleiding
Hier kunt u de volledige pdf-versie van de handleiding downloaden. Deze kan aanvullende veiligheidsinstructies, garantie-informatie, FCC-regels, enz. bevatten.
Download JBL Harman Link Music - Snelstartgids voor Wi-Fi-luidspreker
