INSTALLATION INSTRUCTIONS
The installation must be performed by a qualified electrical contractor.

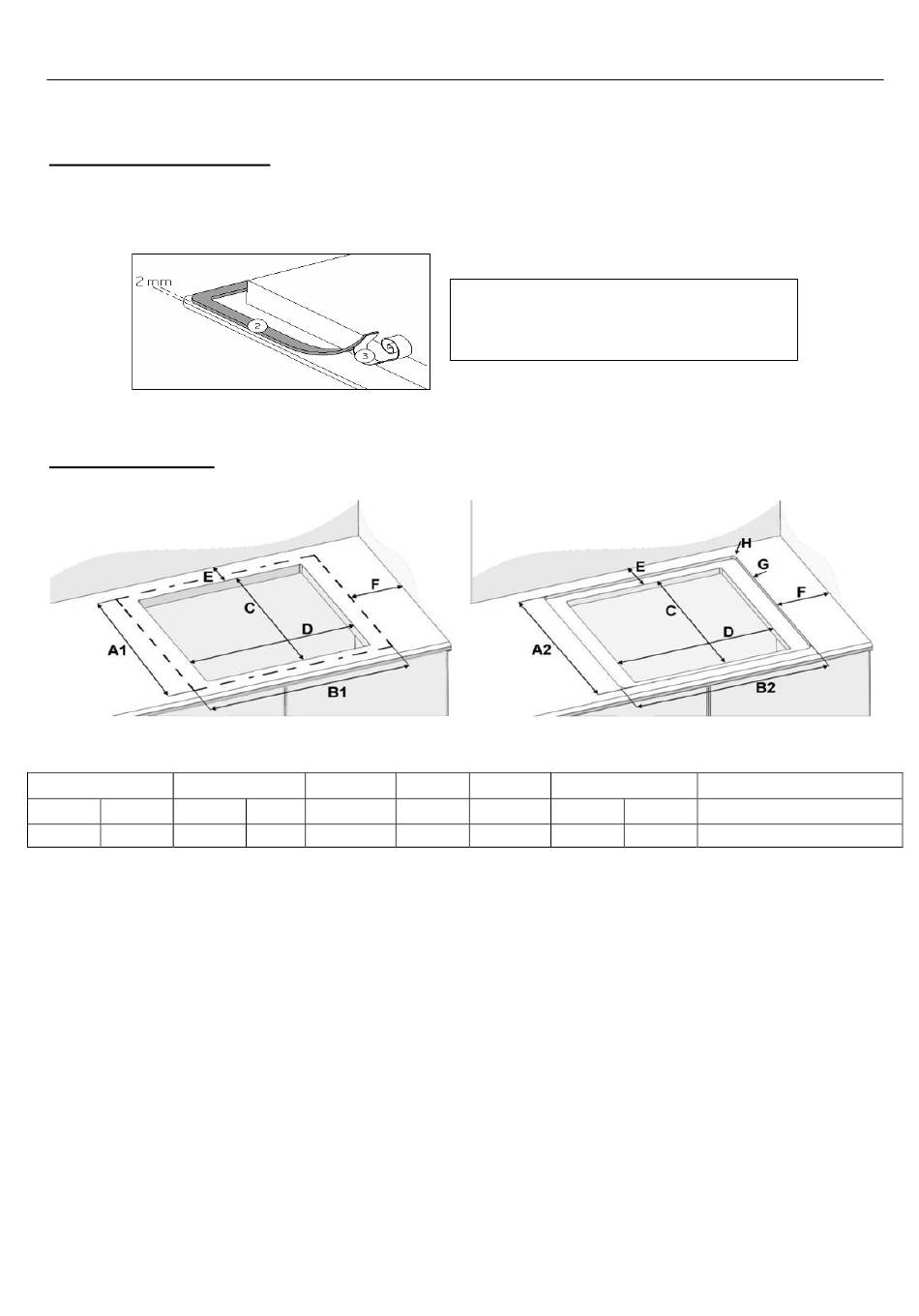

How to stick the gasket:
The gasket supplied with the hob prevents the intrusion of liquids into the cabinet below.
It's installation has to be done carefully, in conformity with the following drawing.
itting - installing:
F
• The cut out sizes are:
Glas size
Cut-out size
A1
B1
C
520
780
490
Rear
Side
D
E
F
(min)
(min)
750
60
40
Stick the gasket (2) two millimetres from the
external edge of the glass, after removing the
protection tape (3).
Radius
Cut size
H
A2
8
526
69
Deep
B2
G
786
5
