6
11
5
7

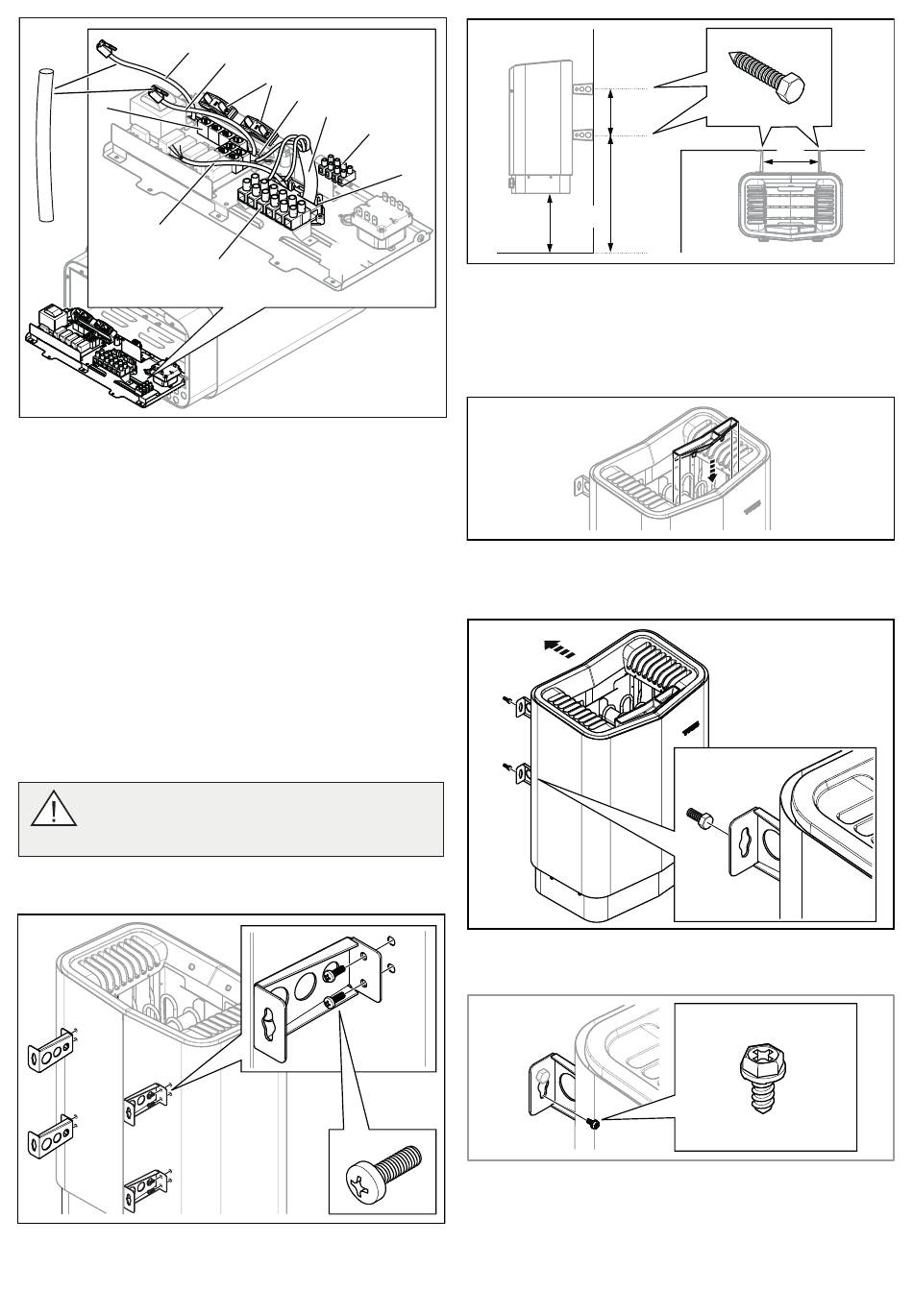

Figure 9: Circuit board
1.
Electrical cable
2.
Terminal for connection of
electrical cable
3.
Cable grommet (x5)
4.
Control panel cable
5.
Modular contacts for connec-
tion of control panel, sensor
etc.
4.
Run the cables for the control panel and the temperature
sensor through the cable grommets (see Figure 9). Connect
the control panel cable to one of the four RS485 contacts
(positions 5-8) (see Figure 18).
5.
Connect the sensor cable to the NTC contact on the circuit
board (position 1) (see Figure 18).
6.
Connect the light cable (if relevant), see Figure 9, according
to the wiring diagram Figure 17.
7.
Close the cover and tighten the screws (see Figure 8).
NB: If all the screws on the back are unscrewed
simultaneously, the back plate may come loose.
For this reason, attach the four brackets to the
heater one at a time.
8.
Unscrew the fi rst two screws on the back of the heater and
screw one of the four brackets into place. Repeat the proce-
dure until all of the brackets are fi tted see Fig. 10.
Figure 10: Attaching the brackets to the heater
9.
Position the bracket screws according to the specifi ed dimen-
sioning see Fig. 11.
4
9
3
1
8
2
6.
Sensor cable
7.
Light cable (if relevant)
8.
Terminal for connection of light
(if relevant)
9.
Strain relief connector for ca-
bles to modular contacts (x2)
10. Strain relief connector for
electrical cable
11. Protection hose for RJ10
cables
10
2
Figure 11: Dimensioning
1. 262 mm
2. 270 mm
3. 532 mm
4. 206 mm
10. Fit herb bowl/air humidifi er (see Fig. 12).
Figure 12: Fitting the fragrance holder/air humidifi er
11.
Hang the heater on the screws see Fig. 13.
Figure 13: Hang the heater up.
12.
Lock the heater into place with the lock screw see Fig. 14.
Figure 14: Lock screw for bracket
13. Install the sensor on the wall see Fig 15. The thermistor wire
may also be passed through the wall. Seal any holes in the
wall behind the sensor, see Figure 16. The thermistor wire
may be extended outside the sauna using low voltage wire
(2-lead).
4
1
3
13
