Figure 15: Installing the sensor
CONNECTION/WIRING DIAGRAM
TAB
400-415 V 3N~ (C)
Output
Amperage
Conductor
kW
amp
area mm²
6,6
10
1,5
8
12
2,5
10,5
16
2,5
* 10,5 kW is not approved for singel phase in Europe
4
5
6
2
3 x 0.75 mm
RJ10 4P4C
RJ10 4P4C
*
Control panel Pure - max 100m

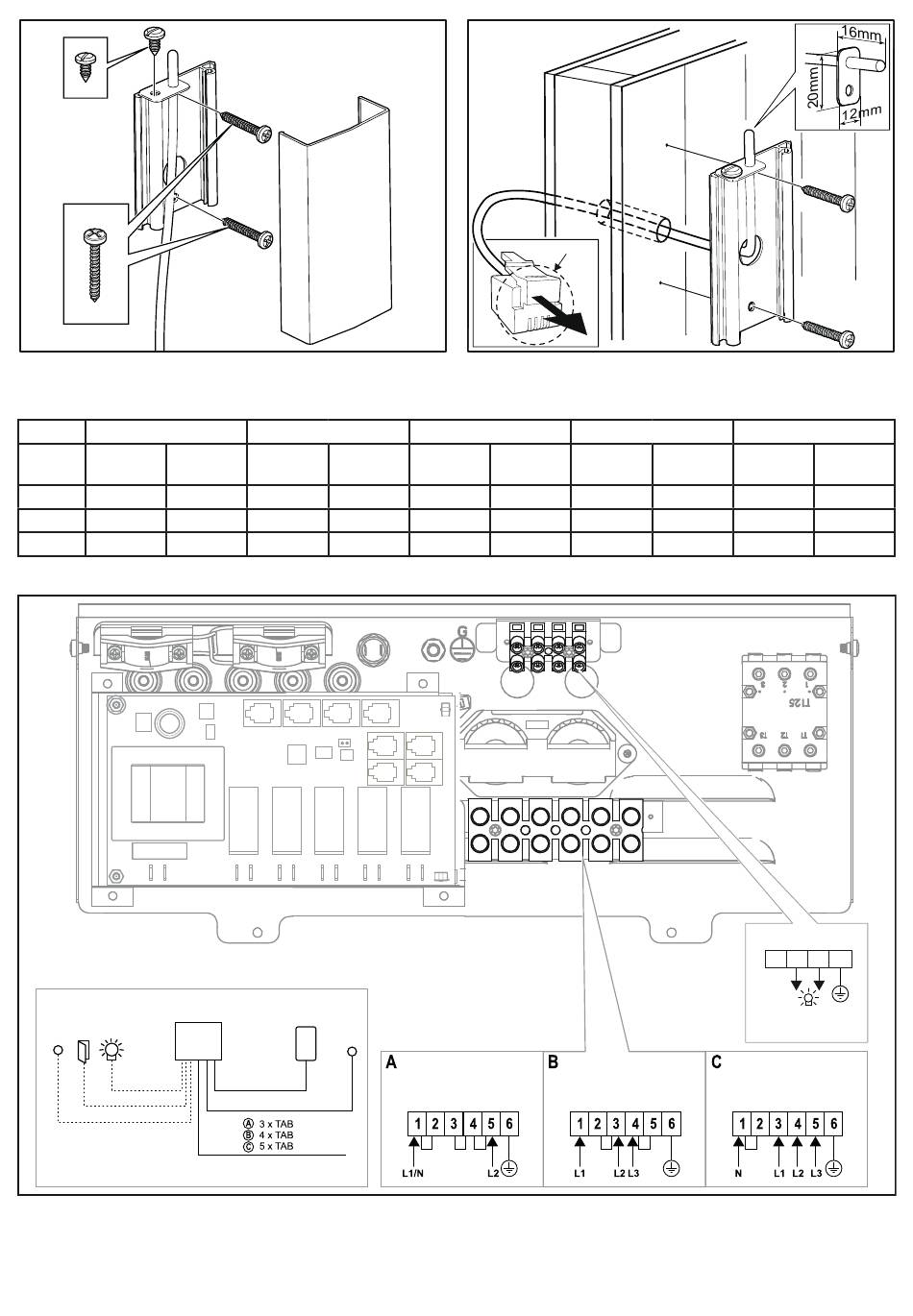

Figure 17: Wiring diagram
1. Heater
2. Sensor (connect to NTC position 1)
3. Control panel (connect to positions 5-8)
4. External switch (option)
200-208 V 3~ (B)
Amperage
Conductor
amp
area mm²
19
4
23
6
32
10
2
1
3
*
RJ10 4P4C
RJ10 4P4C
5. Door contact (option)
6. Light/terminal for connection of light
7. Terminal for connection of electrical cable
Min. Ø13mm
Figure 16: Wiring through the wall.
230 V 3~ (B)
Amperage
Conductor
amp
area mm²
17
4
20
4
28
10
7
6,6-8,0 kW
200-240 V 1N~/2~
200-208 V~ (A) *
Amperage
Conductor
amp
area mm²
33
10
40
16
-
-
6,6-8,0-10,5 kW
6,6-8,0-10,5 kW
200-230 V 3~
400-415 V 3N~
230-240 V~ (A) *
Amperage
Conductor
amp
area mm²
29
10
35
10
-
-
6
B
B G
Max 100W
200 - 240 V~
