8. Hook the bracket firmly around the win
dow frame in the lowest position possible.
9. Push the Way-out firmly against the win
dow frame
(Figure
10. Pull the bracket as far towards you as pos
sible
(Figure
72, pos 1) so it clamps prop
erly.
11. Tighten the screw cap
12. Close the window as far as possible.
13. Screw the clamping screw all the way back
(Figure
73, pos. 1).
14. Place the clamp bracket as close to the
window frame as possible. Make sure the
screw holes match up.
15. Screw the clamp bracket to the
main rail using the two knob screws
(Figure
73, pos. 2).
16. Screw the clamping screw carefully to the
window frame
72), pos. 2).
(Figure
72, pos. 3).
(Figure
74, pos. 1).

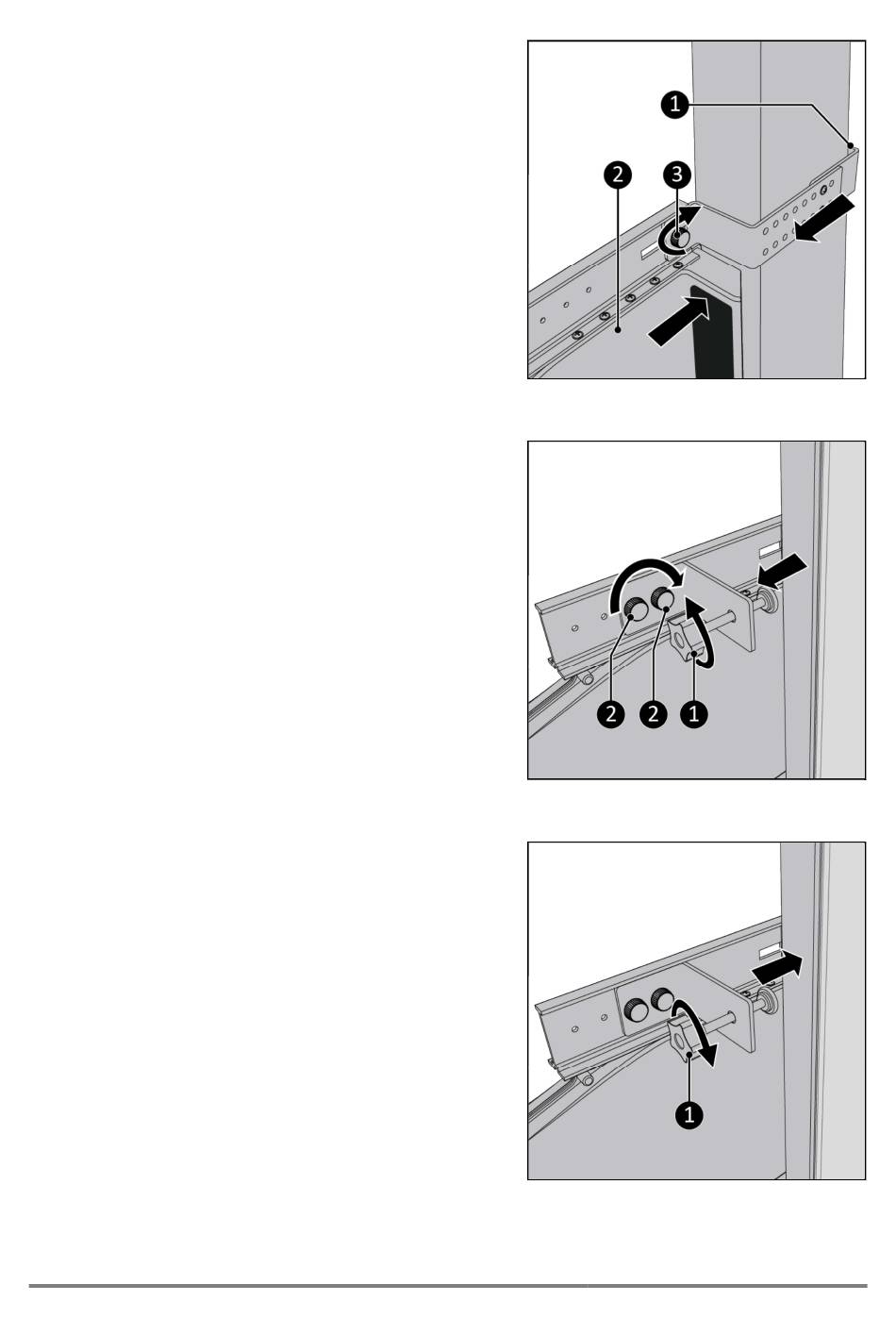

Figure 72.
Figure 73.
Figure 74.
