16. Screw the clamping screw carefully to the
window frame
17. Fill up the open spaces
with the delivered isolation foam
(Figure
84, pos. 2), cut the foam if neces
sary*.
18. Continue in chapter 'assembly air condi
tioning hose'.
* Extra isolation foam (product
code: 875201) can be ordered via
www.eurom.nl
D. Assembly outward-swinging window rightwards
1. Make sure you have done the steps in chapter 'Assembly preparations'.
(Figure
83, pos. 1).
(Figure
84, pos. 1)
.

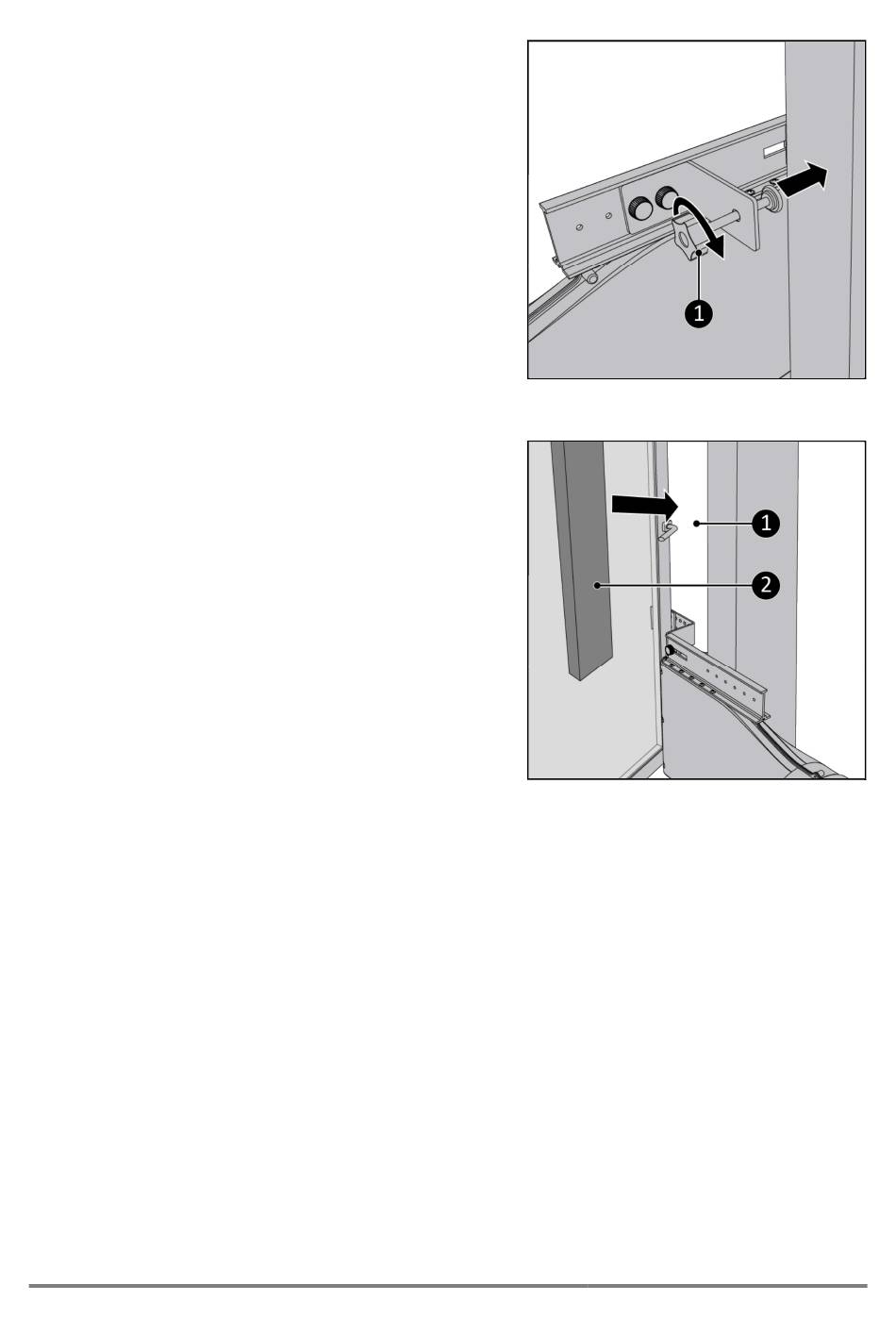

Figure 83.
Figure 84.
43
