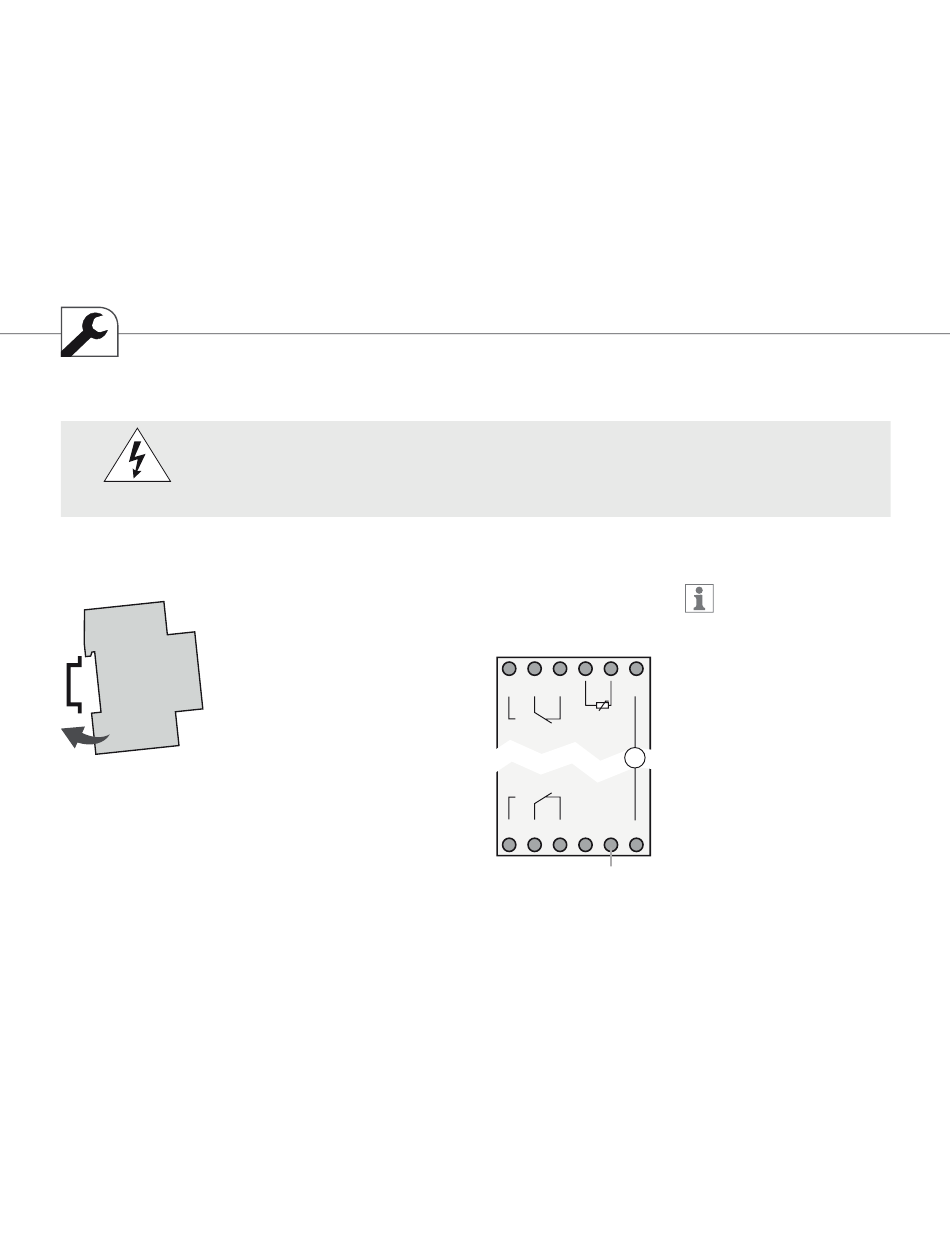

Installation and mounting
WARNING
Mounting on DIN rail
Put the device slightly inclined on top of the rail
Then push it backwards until it engages
50
All manuals and user guides at all-guides.com
Danger! Risk of electric shock!
Connection and mounting must be realized by a professional electrician!
Z
Z
Connection diagram
CH1 = channel 1
CH2 = channel 2
_
5
6
7
+
L
DCF/GPS
Ch2
M ~
Ch1
1
2
3
S
N
External input
LAN module and
timer must be oper-
ated in the same
phase
The distance
between the two
devices must not
be more than 50
meters
