OBJ_BUCH-1051-001.book Page 20 Tuesday, August 11, 2009 11:39 AM
20 | English
Declaration of Conformity
We declare under our sole responsibility that
the product described under "Technical Data" is
in conformity with the following standards or
standardization documents: EN 60745 accord-
ing to the provisions of the directives
2004/108/EC, 98/37/EC (until 28 Dec 2009),
2006/42/EC (from 29 Dec 2009).
Technical file at:
Robert Bosch GmbH, PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
22.07.2009
Assembly
Battery Charging
Use only the battery chargers listed on the
accessories page. Only these battery charg-
ers are matched to the lithium ion battery of
your power tool.
Note: The battery is supplied partially charged.
To ensure full capacity of the battery, complete-
ly charge the battery in the battery charger be-
fore using your power tool for the first time.
The lithium ion battery can be charged at any
time without reducing its service life. Interrupt-
ing the charging procedure does not damage the
battery.
The Li-ion battery is protected against deep dis-
charging by the "Electronic Cell Protection
(ECP)". When the battery is empty, the machine
is switched off by means of a protective circuit:
The inserted tool no longer rotates.
Do not continue to press the
WARNING
On/Off switch after the ma-
chine has been automatically switched off. The
battery can be damaged.
2 609 140 647 | (11.8.09)
The battery is equipped with a NTC temperature
control which allows charging only within a tem-
perature range of between 0 °C and 45 °C. A
long battery service life is achieved in this man-
ner.
Observe the notes for disposal.

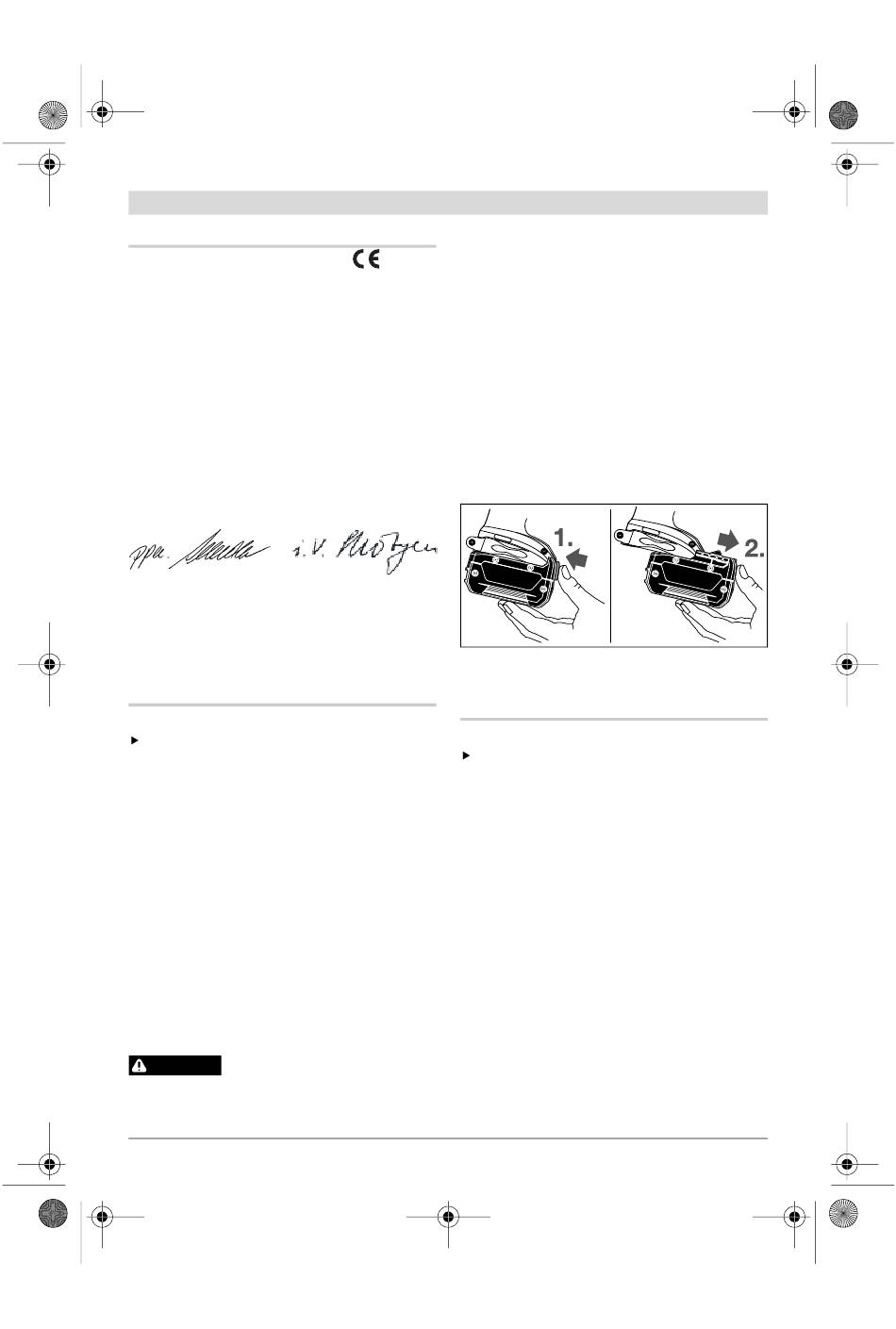

Removing the Battery
The battery 7 is equipped with two locking lev-
els that should prevent the battery from falling
out when pushing the battery unlocking button
8 unintentionally. As long as the battery is in-
serted in the power tool, it is held in position by
means of a spring.
To remove the battery 7, press the unlocking
button 8 and pull out the battery toward the
front. Do not exert any force.
Changing the Tool (see figure A)
Before any work on the machine (e. g.,
maintenance, tool change, etc.) as well as
during transport and storage, set the rota-
tional direction switch to the centre posi-
tion. Unintentional actuation of the On/Off
switch can lead to injuries.
Inserting
Pull the locking sleeve 2 forward, push the in-
sert tool to the stop into the tool holder 1 and
release the locking sleeve 2 to lock the insert
tool.
Use only screwdriver bits with ball catch 12
(DIN 3126-E6.3). Other screwdriver bits 14 can
be used with a universal bit holder with ball
catch 13.
Removing
Pull the locking sleeve 2 forward and remove the
insert tool.
Bosch Power Tools
