Refrigerator operation

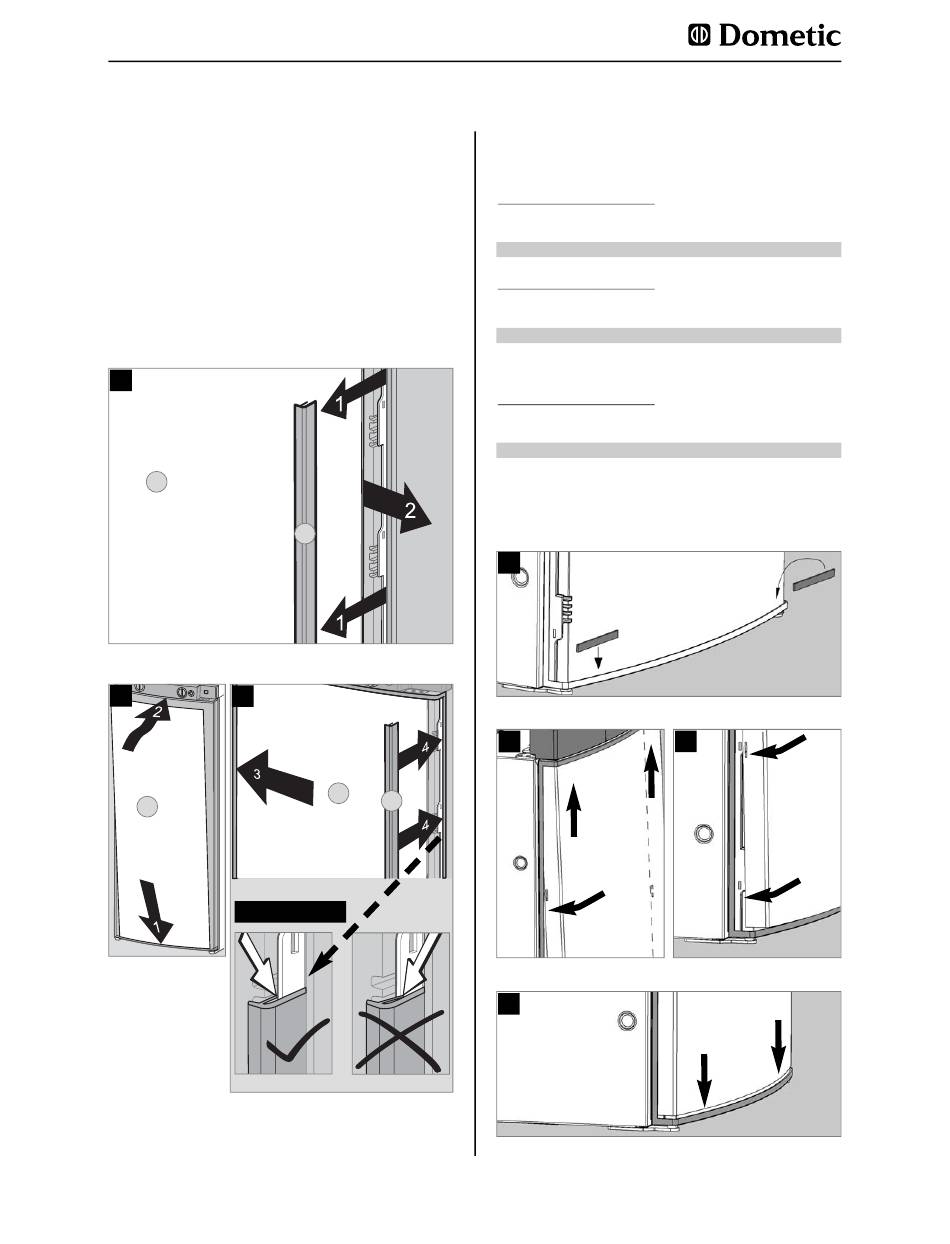

4.19 Changing the decor panel
Model RMS 84xx, RM 8xxx, RM(S)L 8xxx
(with frame)
n
Remove the lateral ledge (1)
(ledge is attached, not screwed).
n
Shift decor panel (2) away from the door
and insert the new decor panel. Re-attach
ledge (1) .
1
2
2
3
2
CAUTION!
Fig 45
All manuals and user guides at all-guides.com
the door
1.
2.
1
1.
Fig. 44
2
1
Fig. 46
26
Decor panel dimensions (frame) :
RMS 84xx, RM 8xxx
Casing width
486 mm
Height
Width
743 +/- 0.5 mm
472.5 +/- 0.5 mm max. 1.7 mm
Casing width
523 mm
Height
Width
743 +/- 0.5 mm
508 +/- 0.5 mm
RM(S)L 8xxx
Casing width
523 mm
Height
Width
1169.5 +0/-1 mm 507.5 +0/-1 mm
Model RMx(L) 8xxx
(Inserting of frameless decor panel)
1
2
Fig. 48
4
Thickness
Thickness
max. 1.7 mm
Thickness
max. 1.7 mm
Fig. 47
3
Fig. 49
Fig. 50
