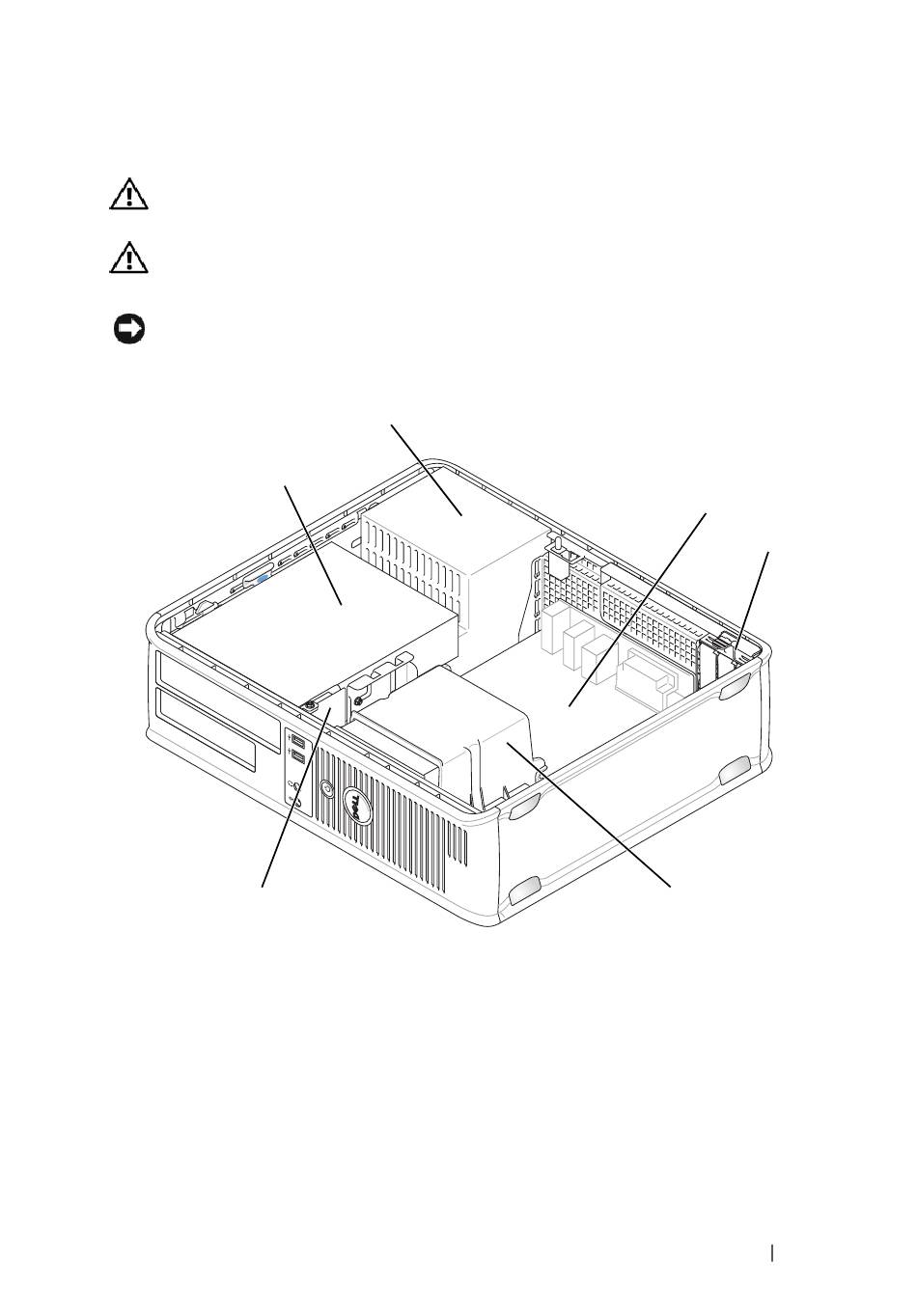

Inside View of Your Computer
CAUTION:
Before you begin any of the procedures in this section, follow the
safety instructions in the Product Information Guide.
CAUTION:
To avoid electrical shock, always unplug your computer from the
electrical outlet before removing the computer cover.
NOTICE:
Be careful when opening the computer cover to ensure that you do not
accidentally disconnect cables from the system board.
1
6
1
drives bay
(CD/DVD, floppy, and hard drive)
3
system board
5
heat sink assembly
2
2
power supply
4
card slots
6
front I/O panel
Quick Reference Guide
3
4
5
