Installation
Connecting the electricity
Risk of fatal electric shock!
Improper assembly and installation of the device can lead to life-threatening electrical
WARNING!
voltages.
−
Only allow a qualified electrician to install and connect the device.
Personnel:
•
Qualified electrician
Material:
•
DIN rail (15 mm x 7.5 mm)
•
DIN rail (15 mm x 12.5 mm)
Prerequisite:
•
The terminals for the wires must have a cross-section between 1 mm² and 2.5 mm².

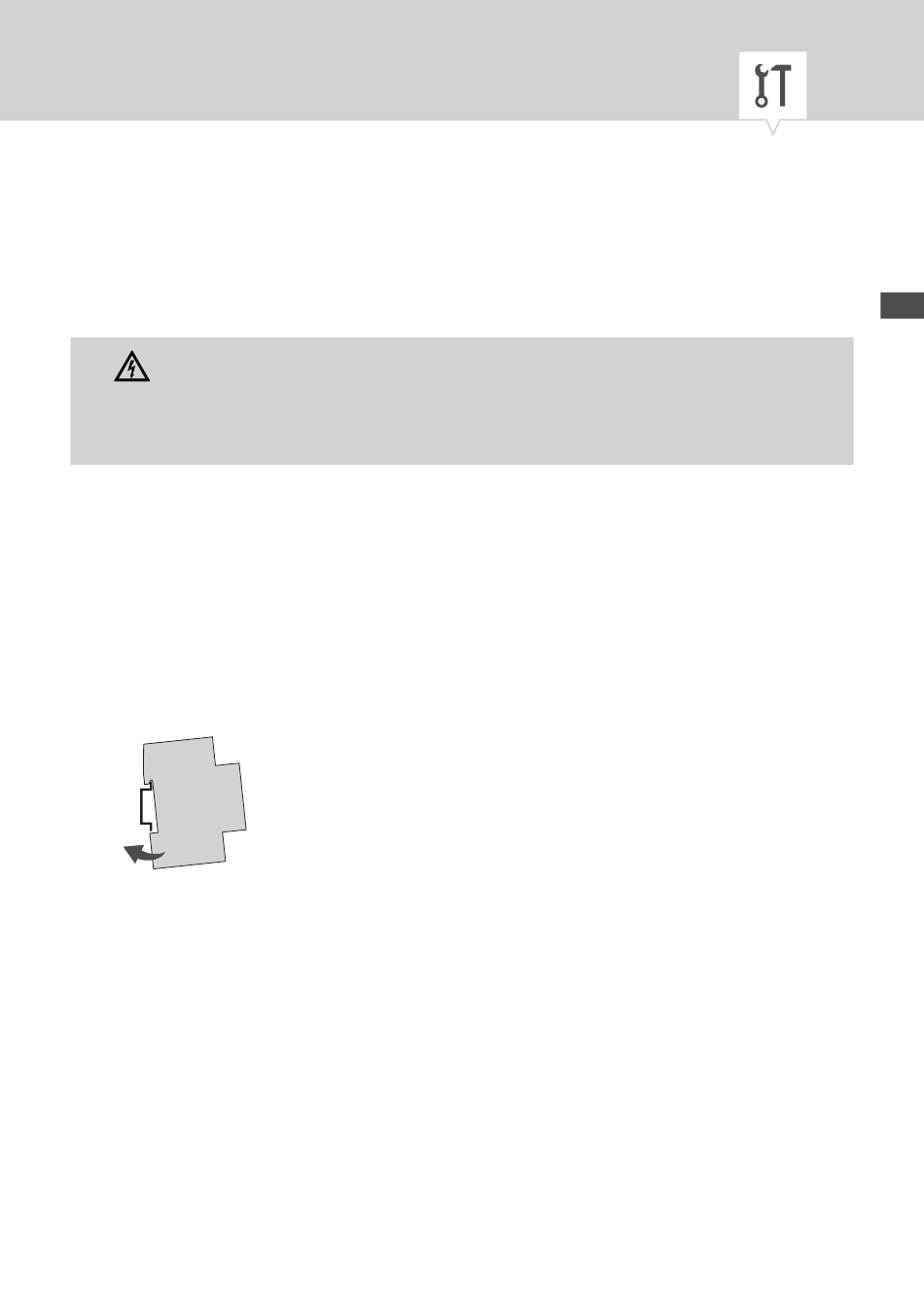

Fig. 4: Installation on a DIN rail
1.
Place the DIN-rail timer on the DIN rail (Fig. 4) from above and press it back until it locks into place.
