• Place the desired cutting plate next to the cutting blade, fitting protrusions
in the slot (fig.5).
• Support or press the center of the cutting plate with one finger then screw
the fixing ring tight with another hand (fig.6). Do not over tighten.
• Place the hopper plate on the head and fix it into position.
• Locate the unit on a firm place.
• The air passage at the bottom and the side of the motor housing should
be kept free and not blocked.
Cutting Blade Assembly
Mincer
1.Insert the worm shaft into the cutter housing, the plastic end first.

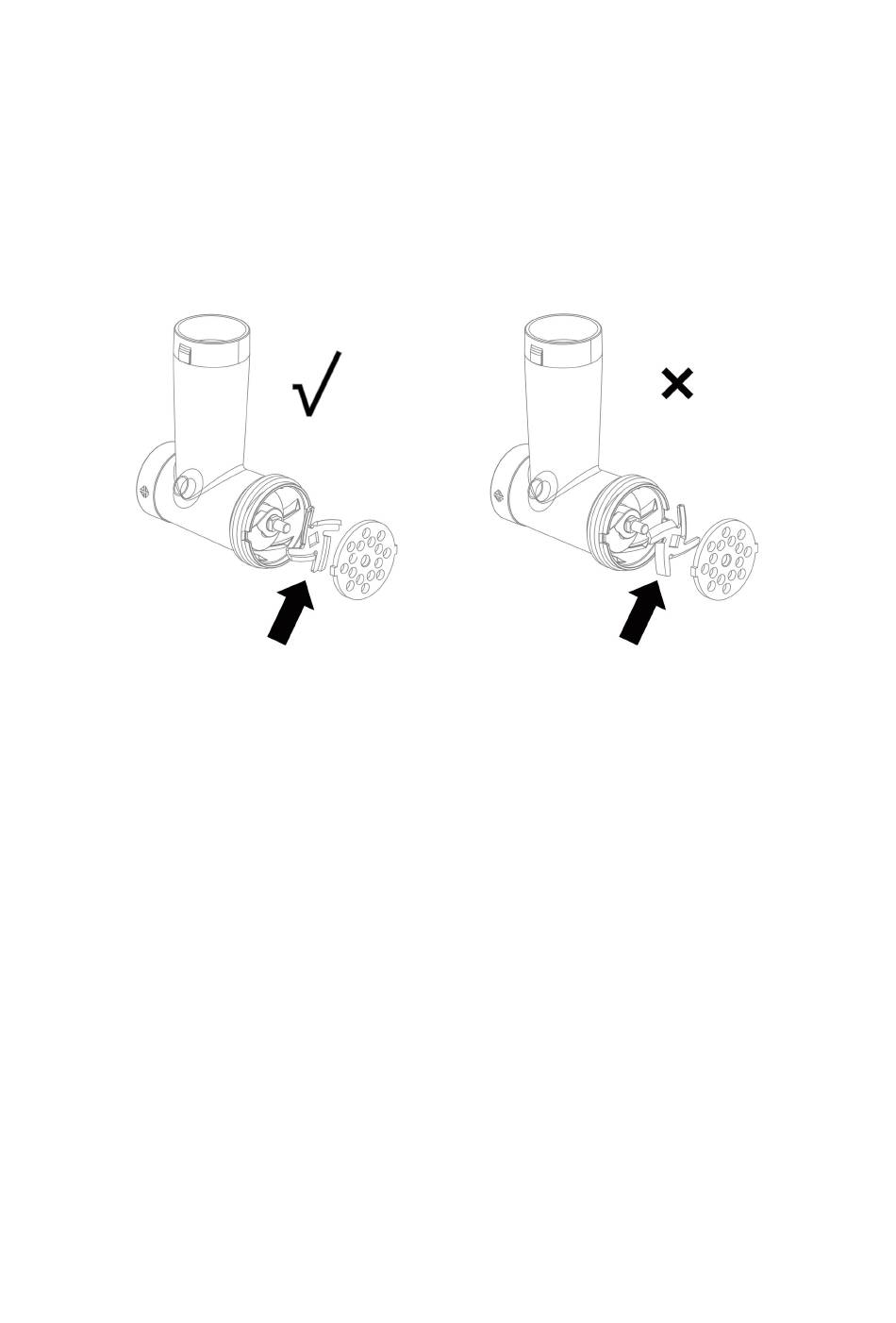

Place the cutter unit onto the worm shaft. (The cutting edges should be at
the front) Place the medium grinding disc or coarse grinding disc
(depending on the consistency you prefer) onto the worm shaft. (Make
sure the notch of the grinding disc fit onto the projections of the mincer
head.) Turn the screw ring in the direction of the arrow on the cutter
housing until it is properly fastened.
2.Attach the cutter housing to the motor unit.
3.Place the tray on the upright part of the cutter housing.
4. Now the appliance is ready for mincing.
Cut the meat into 10cm-long, 2cm-thick strips. Remove bones, pieces of
gristle and sinews as much as possible. (Never use frozen meat!)
Put the meat in the tray. Use the pusher to gently push the meat into the
