Your Secuquick softline
2.1.

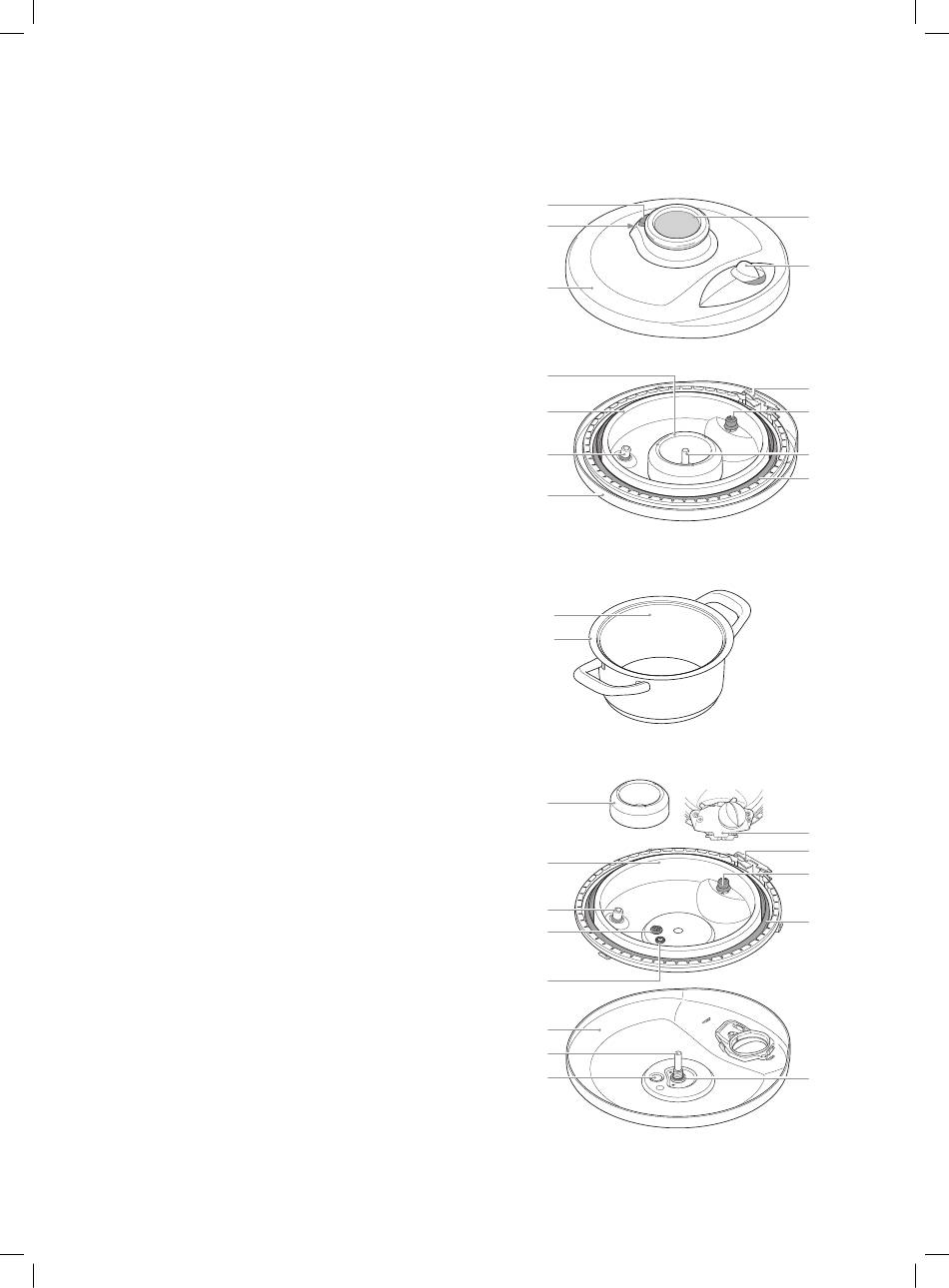

Design
1.
The Secuquick softline
2.
Visiotherm S
3.
Yellow steam-venting button
4.
Rotary knob
5.
Steam outlet
6.
Bell nut
7.
Bottom cover
8.
Top cover
9.
Sealing ring
10.
Temperature sensor
11.
Cover closure lock
12.
Safety valve 2
14.
Safety valve 3
Pot for use with the Secuquick softline
20.
Pot
21.
Pouring rim
The Secuquick softline disassembled
6.
Bell nut
7.
Bottom cover
8.
Top cover
9.
Sealing ring
10.
Temperature sensor
11.
Cover closure lock
12.
Safety valve 2
13.
O-ring for safety valve 2
14.
Safety valve 3
15.
Sealing cap for safety valve 3
16.
Sealing washer for operating pressure valve
17.
Steam-venting valve
18.
Operating pressure valve (safety valve 1)
19.
O-Ring on temperature sensor
24.
Gearbox
