▶ Keep other people away from the working area, especially children.
3
Description
3.1

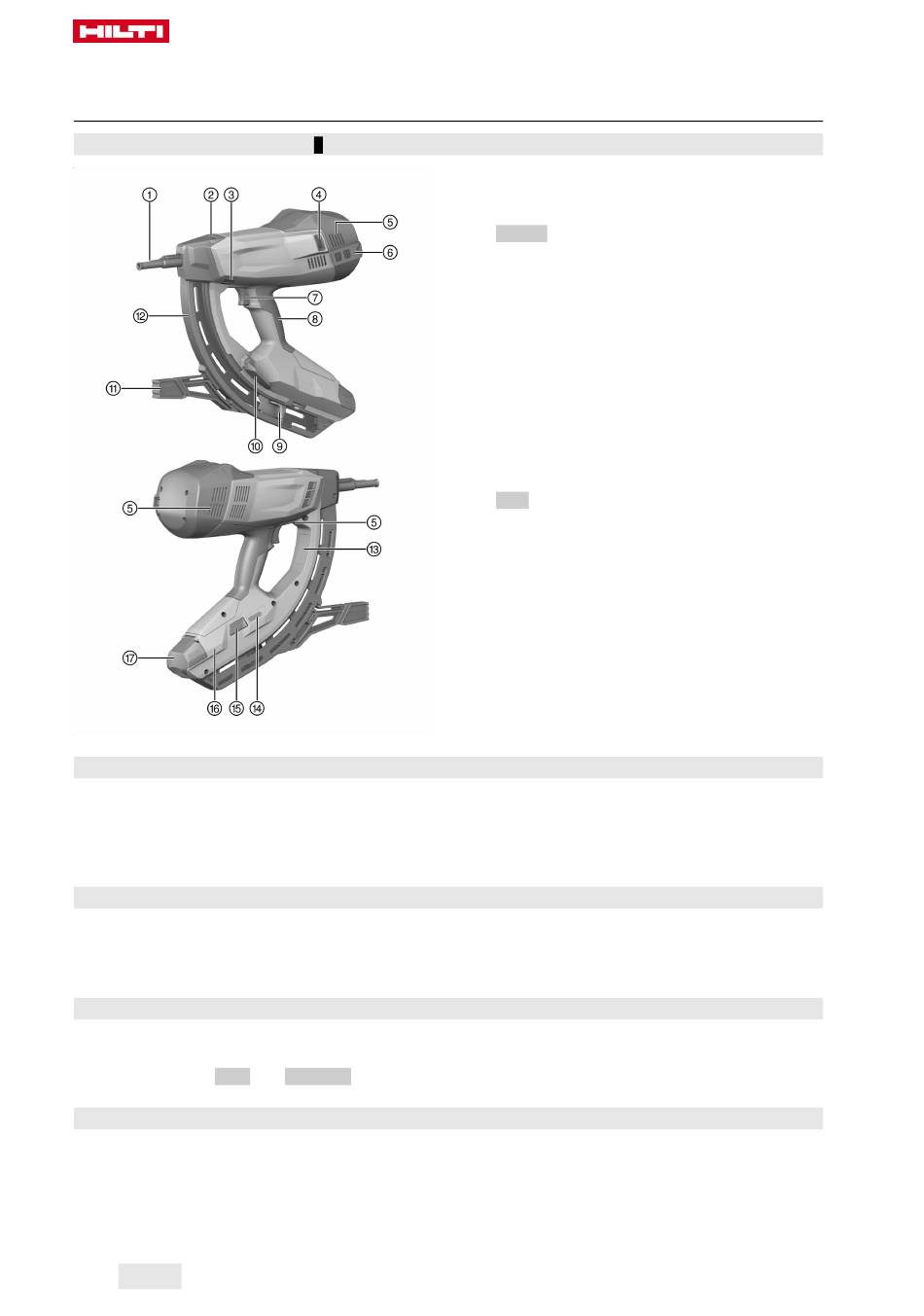

Overview of the product
3.2
Intended use
The product described is a gas-actuated fastening tool ("fastening tool"). It is designed to drive suitable
fasteners into concrete, steel, sand-lime block, concrete-block masonry, rendered masonry and other
materials suitable for use of the direct fastening technique.
The fastening tool is for hand-held use or use with the pole tool extension (accessory) only.
3.3
Items supplied
Gas-actuated fastening tool with fastener guide, toolbox, operating instructions.
Other system products approved for use with this product can be found at your local Hilti Center or online
at: www.hilti.group
3.4
Fastener guide
The fastener guide holds the studs or, respectively, guides the nails and, when the tool is fired, thus directs the
fasteners into the supporting material at the desired position. Application-specific fastener guides (IF or ME)
are available for the GX 3 and GX 3-ME fastening tools (see type identification plate for exact designation).
3.5
Fasteners
Two types of fastener can be driven by the fastening tool: nails and threaded studs. Additional fastening
components, which can be inserted in the fastener guide, are also available for various applications.
18
English
1
@
;
=
%
&
(
)
+
§
/
:
∙
$
£
|
¡
Q
Fastener guide
Slider for fastener driving depth adjustment
and for releasing the fastener guide
RESET button
Inlet/outlet valve
Cooling air slots
Belt hook
Trigger
Grip
Nail pusher
Magazine lockbutton
Support leg
Magazine
Type identification plate
Gas can status indicator
GAS button
Gas can compartment
Gas can compartment cover
