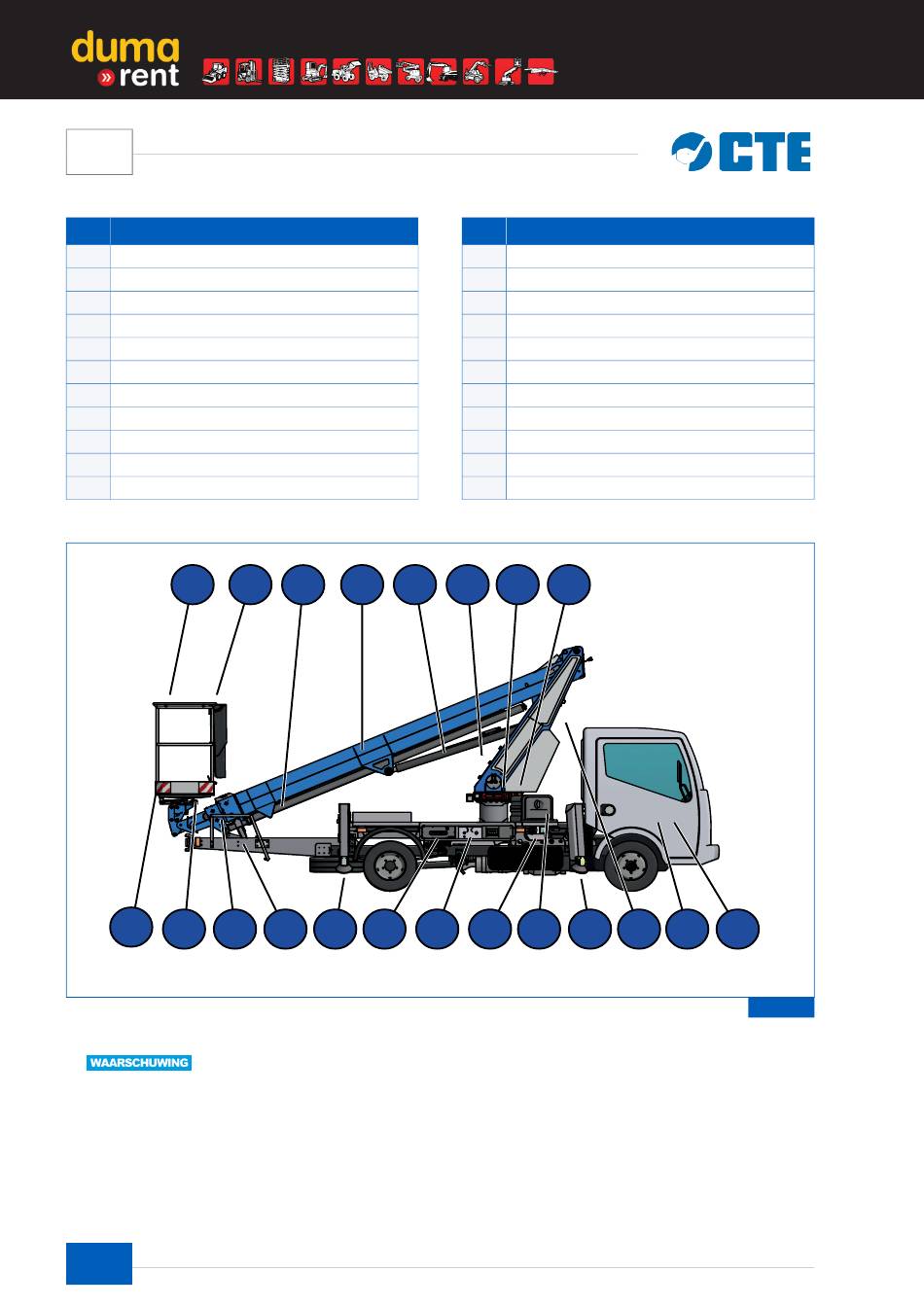

Hoofdstuk 3
NL
BESCHRIJVING EN TECHNISCHE GEGEVENS
3.4
Descrizione dei gruppi principali
Nr.
BeSCHrIJVINg
1
Paneel cabine
2
Knop aftakas
3
Toren
4
Voorste stabilisator
5
Bedieningspaneel op de grond
6
Stopcontact 220V
7
Schakelbord aan de grond
8
Bedieningshendels stabilisatoren
9
Achterste stabilisator
10
Steun arm
11
Telescopisch verlengstuk
14
15
13
11
12
De op de afbeelding weergegeven configuratie van de machine kan mogelijk variëren.
4
18
16
17
10
9
8
7
Nr.
BeSCHrIJVINg
12
Draagplaat werkplatform
13
Cilinder rotatie werkplatform
14
Werkplatform / eenheid korf
15
Bedieningspaneel op het werkplatform
16
Cilinder uitschuiving
17
Arm
18
Hefcilinder arm
19
Verdeler noodbediening
20
Draaitafel
21
Bedieningspaneel op de grond
19
20
21
6
5
4
Hoogwerker
COD. UM0287_01_NL | REV. 01 | ED: 06/19
www.duma-rent.com
3
2
1
3.3
Afb.
B-LIFT 18 HV
