Steps

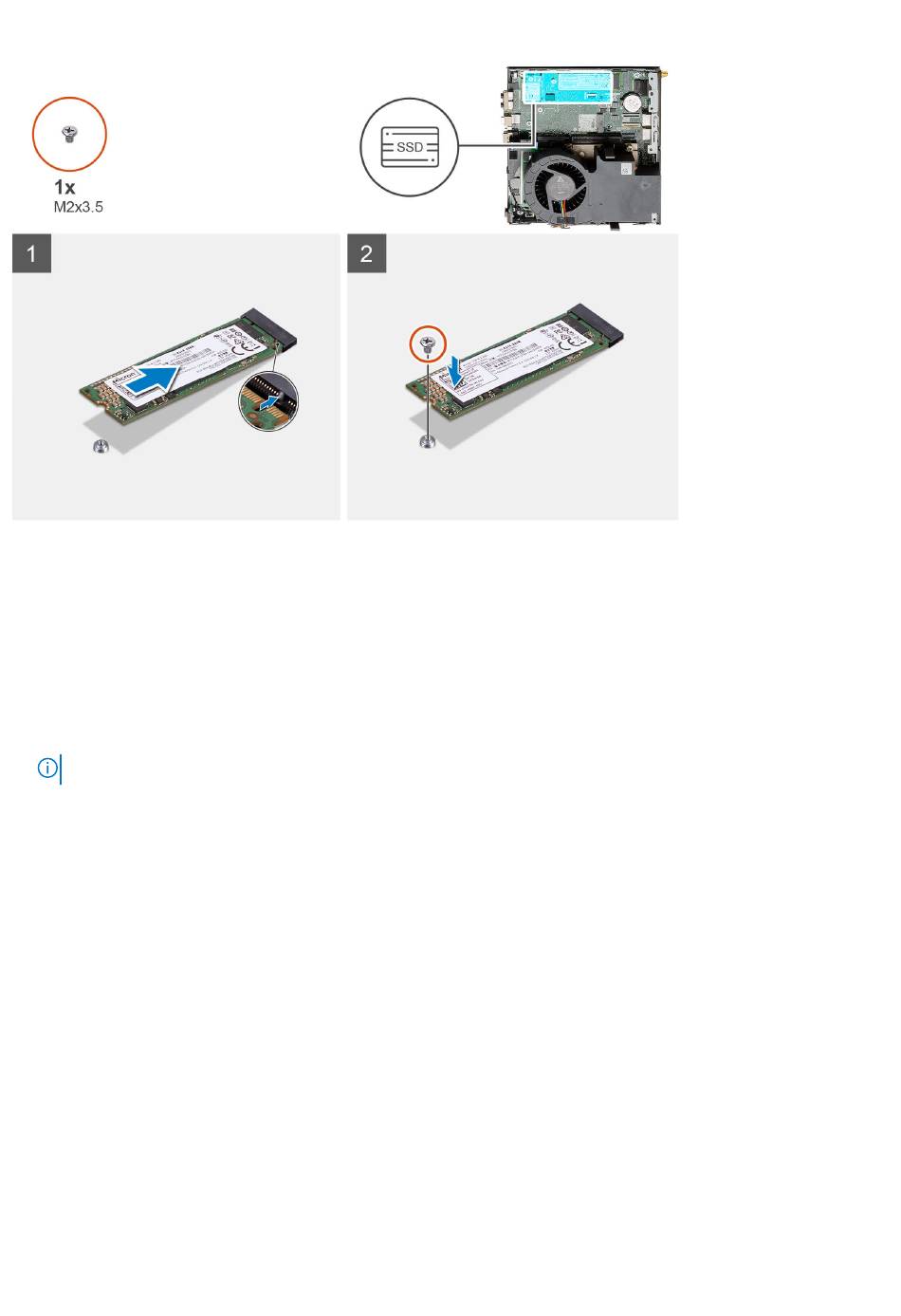

1. Align the notch on the solid-state drive with the tab on the solid-state drive connector on the system board.
2. Insert the solid-state drive at a 45-degree angle into the solid-state drive connector.
3. Replace the screw (M2x3.5) that secures the M.2 2280 PCIe solid-state drive to the system board.
Next steps
1. Install the
hard-drive
assembly.
2. Install the
riser
card.
3. Install the
fan
assembly.
NOTE:
This step is valid for system configuration that is shipped with 80 W CPU.
4. Install the
front
bezel.
5. Install the
top cover (side
6. Install the
side
cover.
7. Follow the procedure in
WLAN-kaart
Removing the WLAN card
Prerequisites
1. Follow the procedure in
2. Remove the
side
cover.
3. Remove the
top cover (side
4. Remove the
front
bezel.
5. Remove the
hard-drive
About this task
The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.
bezel).
after working inside your
computer.
before working inside your
bezel).
assembly.
computer.
