Dell Ultra Speed-schijf
Removing the Dell Ultra Speed Drive
Prerequisites
1. Follow the procedure in
2. Remove the
side
cover.
3. Remove the
top cover (side bezel)
4. Remove the
front
bezel.
5. Remove the
fan
assembly.
NOTE:
This step is valid for system configuration that is shipped with 80 W CPU.
6. Remove the
riser
card.
About this task

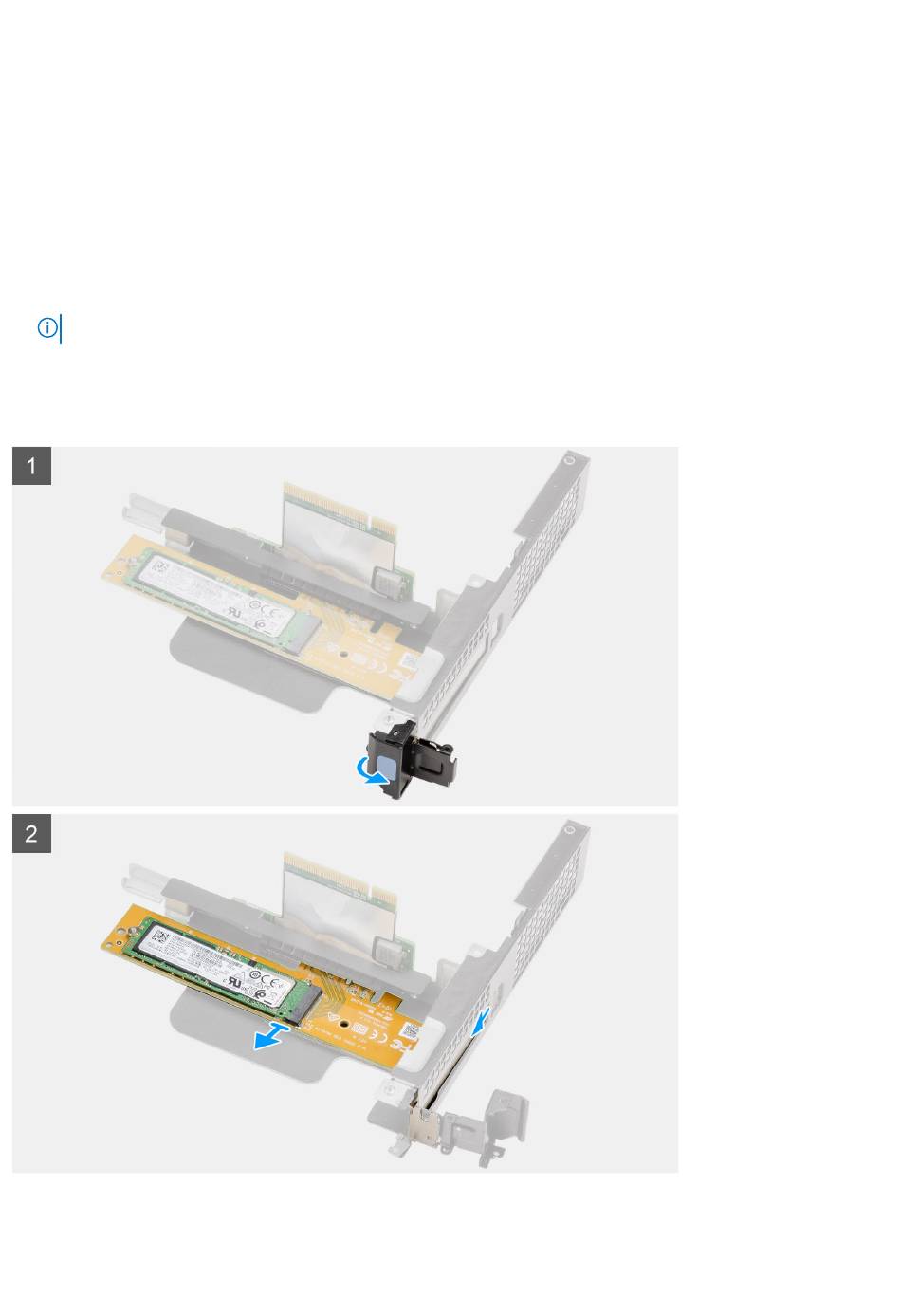

The following images indicate the location of the Dell Ultra Speed Drive and provide a visual representation of the removal procedure.
50
Demonteren en hermonteren
before working inside your
computer.
