Koelplaat
Removing the heat sink
Prerequisites
1. Follow the procedure in
2. Remove the
side
cover.
3. Remove the
top cover (side
4. Remove the
front
bezel.
5. Remove the
fan
assembly.
About this task

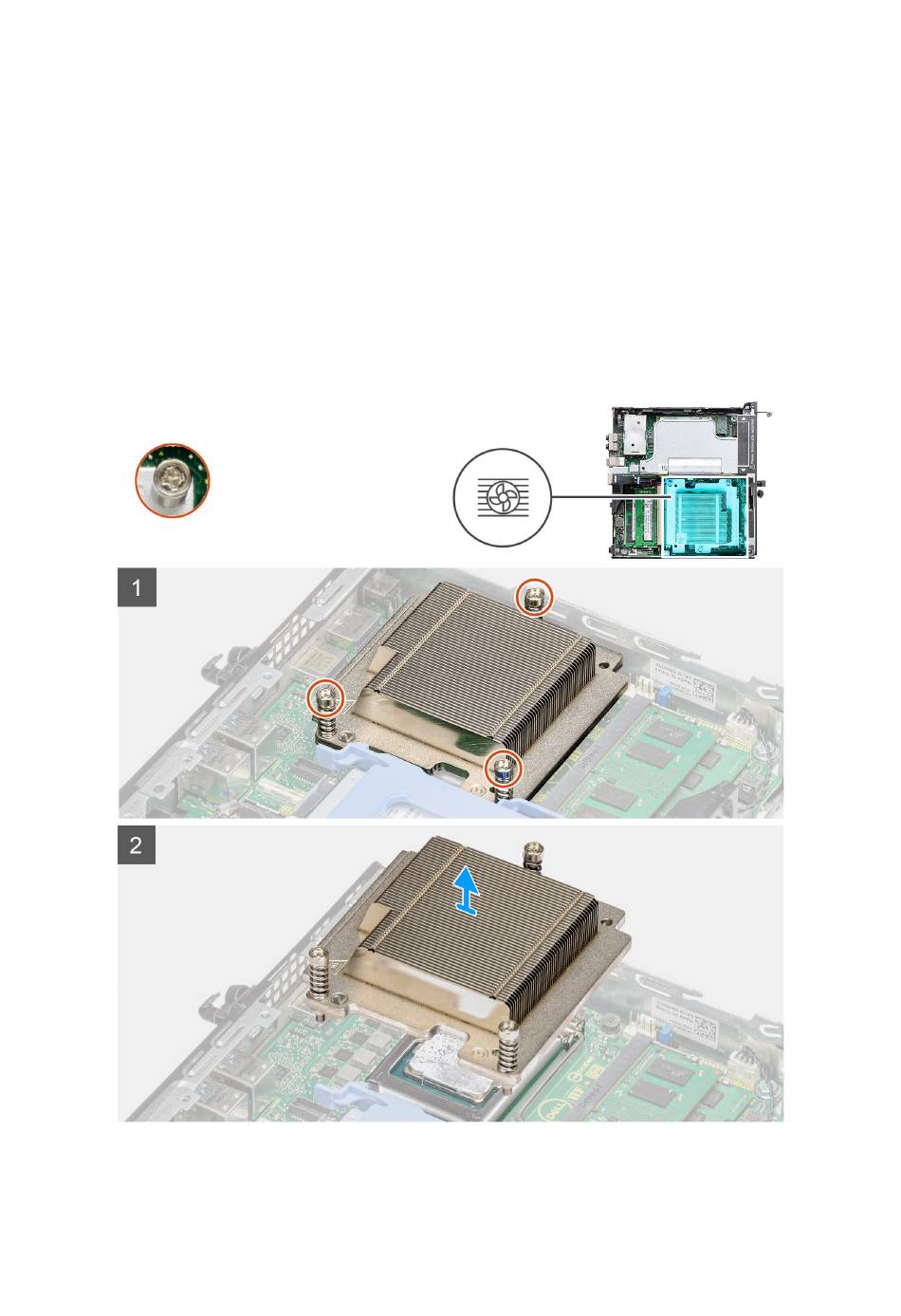

The following images indicate the location of the heat sink and provide a visual representation of the removal procedure.
Figure 4. Heat sink shipped with system configuration shipped with 65 W CPU
56
Demonteren en hermonteren
before working inside your
bezel).
computer.
