and an obstruction is recommended so as to be able to remove
the door and gain access to the technical compartment.
If the surface is not flat, unscrew the foot that is not touching and adjust
its height until it contacts the surface so as to ensure the stability of the
system. The system must in fact be placed in a safe and stable position,
ensuring that its axis is vertical: it must not be in an inclined position.
2.1.1 Hydraulic connections
Make the connection at input to the system through the mouth on Face
F marked "IN" in Fig.7 (suction connection). Then remove the respective
cap with the aid of the accessory tool or with a screwdriver.
Make the connection at output from the system through the mouth on
Face F marked "OUT" in Fig.8 (delivery connection). Then remove the
respective cap with the aid of the accessory tool or with a screwdriver.
All the hydraulic connections of the system to the plant to which it can be
connected are of the threaded female type 1" GAS, made of brass.

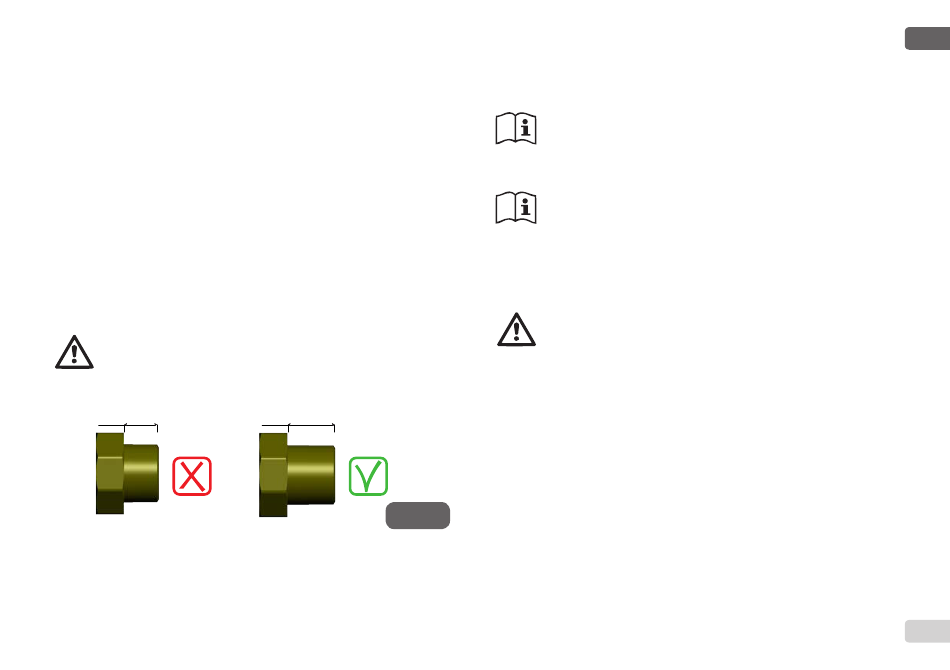

If you intend to connect the product to the plant with fittings that
have a diameter larger than the normal 1" pipe (for example the
ring nut in the case of fittings in 3 pieces), make sure that the 1"
Gas male thread of the coupling protrudes at least 25mm from
the above diameter (see Fig.8)
< 25 mm
With reference to its position with respect to the water to be pumped, the
installation of the system may be defined "above head" or "below head".
In particular the installation is defined "above head" when the pump is
placed at a level higher than the water to be pumped (e.g. pump on the
surface and water in a well); vice versa it is "below head" when the pump
> 25 mm
Figure 8
is placed at a level lower than the water to be pumped (e.g. overhead
cistern and pump below).
If the vertical installation of the system is of the "over head"
type, it is recommended to fit a non-return valve in the suction
section of the system; this is to allow the operation of loading
the system (par. 2.1.2).
If the installation is of the "over head" type, install the suction
pipe from the water source to the pump in such a way as to
avoid the formation of goosenecks or siphons. Do not place the
suction pipe above the pump level (to avoid the formation of air
bubbles in the suction pipe). The suction pipe must draw at its
entrance at a depth of at least 30cm below the water level and
must be watertight along its whole length, as far as the entrance
to the electropump.
The suction and delivery pipes must be fitted so that they do not
exert any mechanical pressure on the pump.
2.1.2 Loading Operation
Installation above head and below head
Installation "above head" (par. 2.1.1): access the technical compart-
ment and, with the aid of the accessory tool (Fig.3_point 5) or with a
screwdriver, remove the filling cap (Fig.3_point 6). Fill the system with
clean water through the loading door, taking care to let the air out. If the
non-return valve on the suction pipe (recommended in paragraph 2.1.1)
has been placed close to the system entry door, the quantity of water
with which to fill the system should be 2.2 litres. It is recommended to fit
the non-return valve at the end of the suction pipe (foot valve) so as to
be able to fill it quickly too during the loading operation. In this case the
quantity of water necessary for the loading operation will depend on the
length of the suction pipe (2.2 litres + ...).
Installation "below head" (par. 2.1.1): if there are no check valves
between the water deposit and the system (or if they are open), it loads
GB
ENGLISH
66
