EN
3.5.

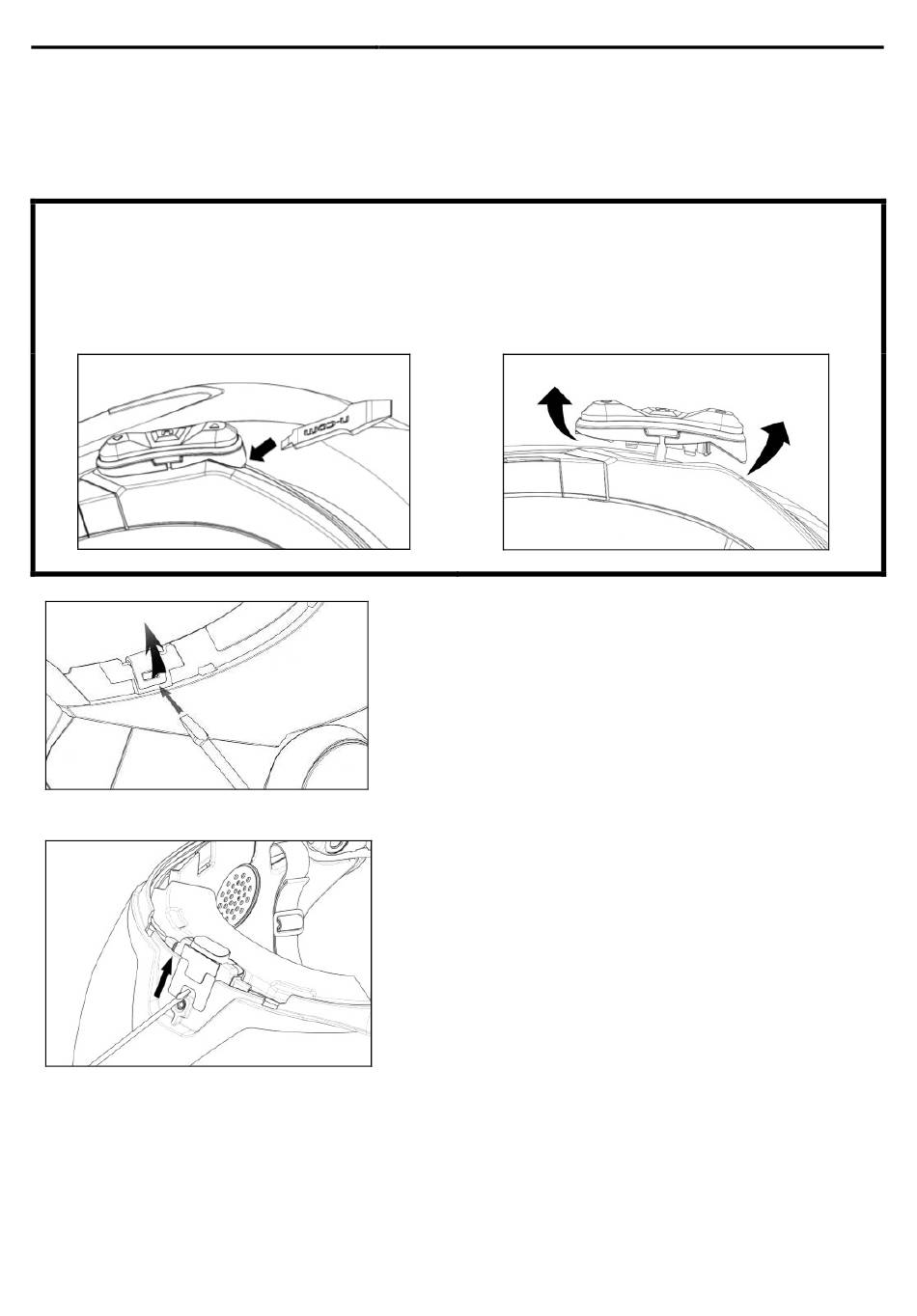

Removing the B101 system from the helmet
Proceed as follows to remove the B101 system from the helmet:
• Remove the cheek padding and the shell gasket.
• Remove the keypad from the shell.
FOR N87, N80-8, N100-5 HELMENTS ONLY – removing the keypad
Remove the keypad from the shell, as indicated in Fig. 26.
•
Rotate the keypad in a counterclockwise direction (Fig. 27).
•
Remove the cheek padding and the shell gasket.
•
Fig. 26
Fig. 28
Fig. 29
14
Fig. 27
Unhook the right clip from the shell,
•
levering upward using a flat head screw
(or a similar tool), as shown in figure 28.
Completely remove the B101 system from
•
helmet using a flat head screwdriver (or
similar tool) and re-install the cheek
padding and the edge gasket.
