AGFA DX-D 300 U-arm Gebruikershandleiding pagina 32

Verberg thumbnails Zie ook voor DX-D 300 U-arm:
Inhoudsopgave

Advertenties

DX-D 300 U-Arm
Gebruikershandleiding

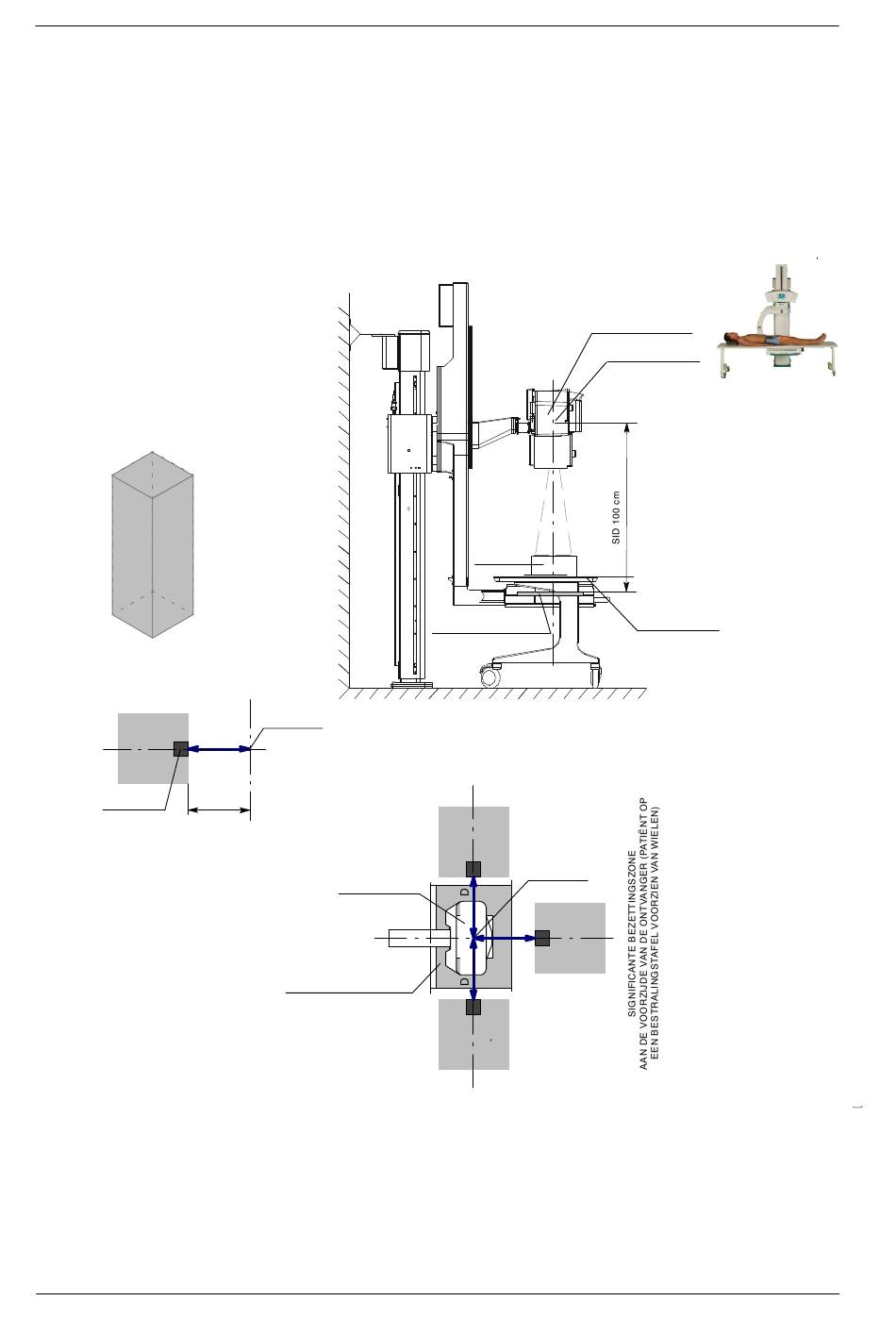

Illustratie 2-2
Radiografsch onderzoek met ontvanger onder de tafel (ontvanger in horizontale stand)
s
S = SIGNIFICANTE BEZETTINGSZONE
MINIMUMZONE 60 x 60 cm
MINIMUMHOOGTE BOVEN DE VLOER 200 cm
s
Dosimeter
d = AFSTAND VAN DE AS VAN DE
RÖNTGENSTRAAL TOT DE DOSIMETER
24
Brandpunt
AAN DE RECHTER ZIJDE VAN DE ONTVANGER (PATIËNT OP
EEN BESTRALINGSTAFEL VOORZIEN VAN WIELEN)
D
RÖNTGENBUIS
BESTRALINGSTAFEL
AAN DE LINKERZIJDE VAN DE ONTVANGER
(PATIËNT OP EEN BESTRALINGSTAFEL VOORZIEN VAN WIELEN)
Fantoom
Röntgenstraalontvanger
SIGNIFICANTE BEZETTINGSZONE
S5
Brandpunt
D
S3
S4
SIGNIFICANTE BEZETTINGSZONE
RÖNTGENBUIS
Brandpunt
Patiëntensteun
0174A NL 20230322
