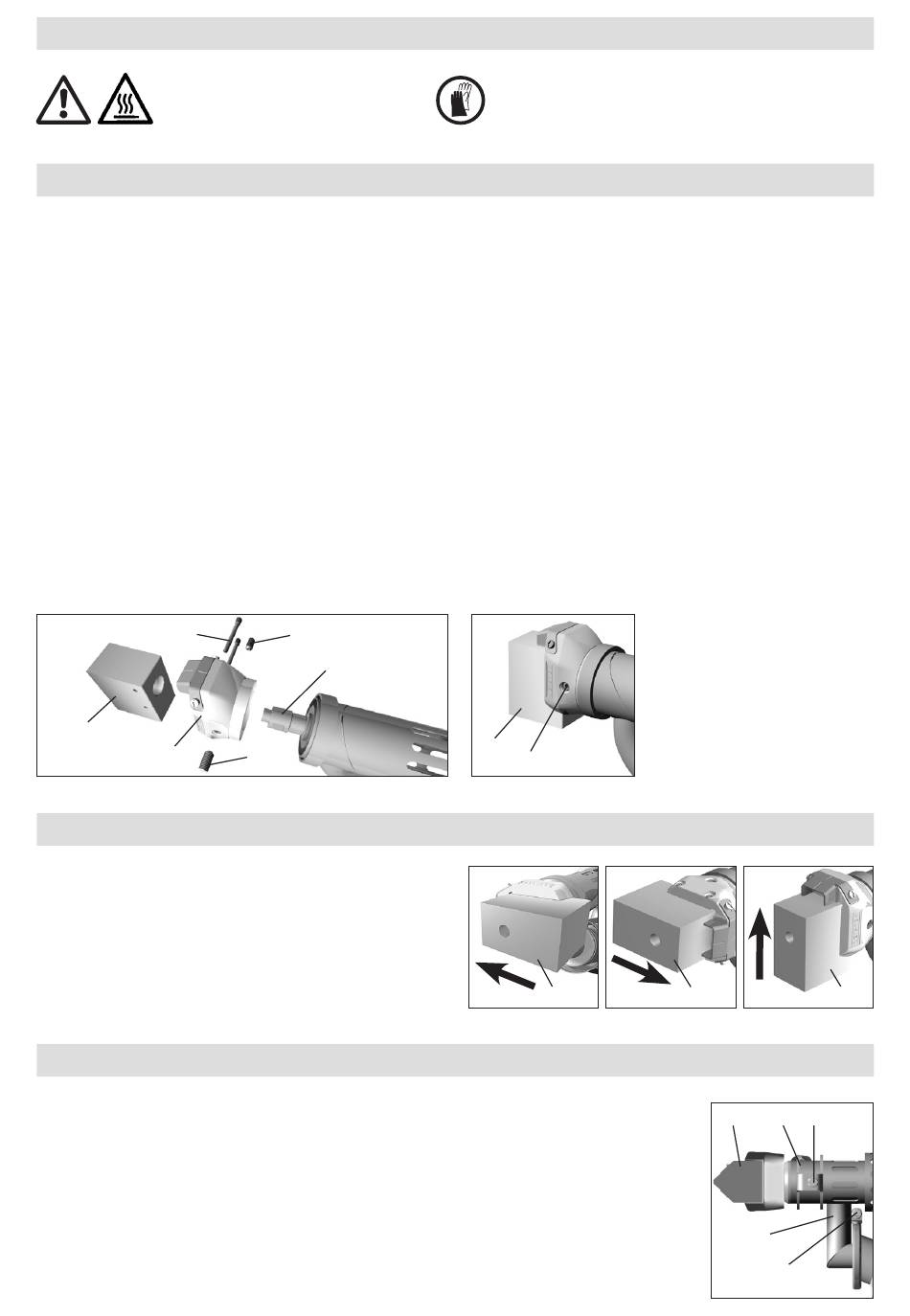

Replacing accessories
Danger – can cause burns!
Changing the welding shoe
The welding shoe must be changed while the device is still warm from operation.
Disassembly
– Turn off the device while warm and disconnect from the power supply.
– Remove the welding shoe (8) with the welding shoe holder (34) by unfastening the clamp screws (35) from
the extruder nozzle (32).
– Every time the welding shoe is changed, clean the extruder nozzle (32) of welding residue and make sure that
it is screwed in tightly.
– Remove welding shoe (8) from the welding shoe holder (34) by unfastening the fastening screws (33).
Assembly
– Fasten a welding shoe (8), appropriate to the welding seam, onto the welding shoe holder (34) with
fastening screws (33).
– The welding shoe (8) and welding shoe holder (34) must be tightened properly with the clamp screws (35).
33
8
34
Welding direction
The welding shoe (8) can be turned infinitely to the
desired welding direction by loosening the clamp
screws (35).
The clamp screws (35) must be tightened well again
afterwards.
Changing the hot air duct
To disassemble the hot air duct (44), first remove the welding shoe (8). After loosening
the locked fastening screw (45) on the pipe clip (10) and the clamp screw (47) on
the hot air duct connector, the entire unit can be pulled out.
Assembly in reverse order.
28 28
35
32
35
Only work with heat-resistant gloves.
8
35
8
8 Welding shoe
32 Extruder nozzle
33 Fastening screw
34 Welding shoe holder
35 Clamp screw
8
8
10
45
8
44
47
