5. MAINTENANCE
5.2 Fuse Replacement
Transmitter Fuse Replacement
�
Warning: To avoid shock, injury, or damage to the Transmitter, disconnect test leads
before opening case.
1. Disconnect all test leads from the Transmitter.
2. Make sure the Transmitter is turned off.
3. Use a philips screw driver to unscrew the tilt-stand screws.
4. Remove the battery door and remove all batteries.
5. Use a philips screw driver to unscrew holding screws.
6. Remove the back cover by pulling it upwards (Figure 5.2).
7. Remove the fuse from the fuse holder.
8. Insert the new fuse (1.6 A, 700 V MAX, FAST Ø 6X32 mm) in the fuse holder.
9. Insert the back cover, secure it with the holding screws and tighten with a star screw driver.
Fuse

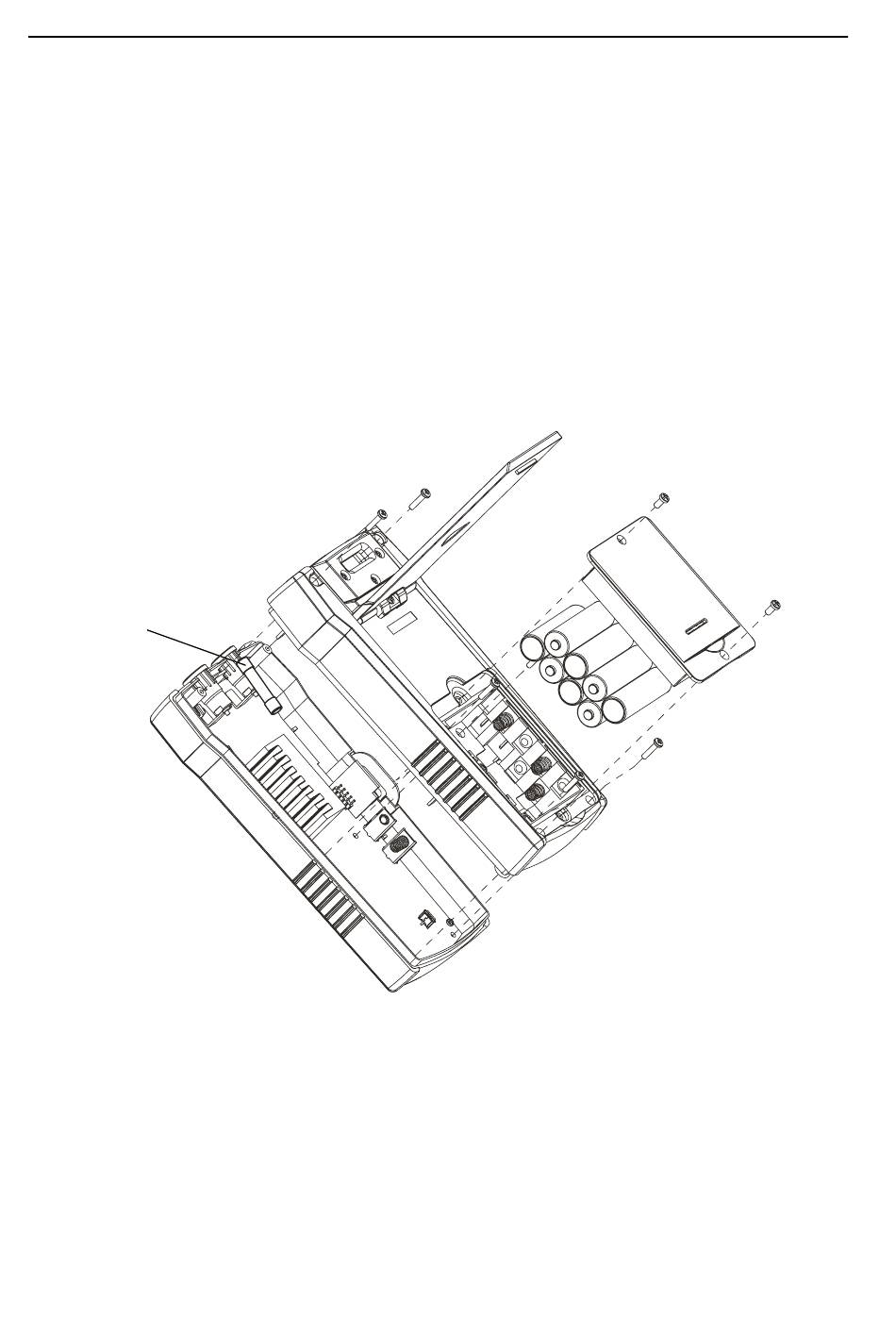

Figure 5.2: Transmitter fuse replacement
34
