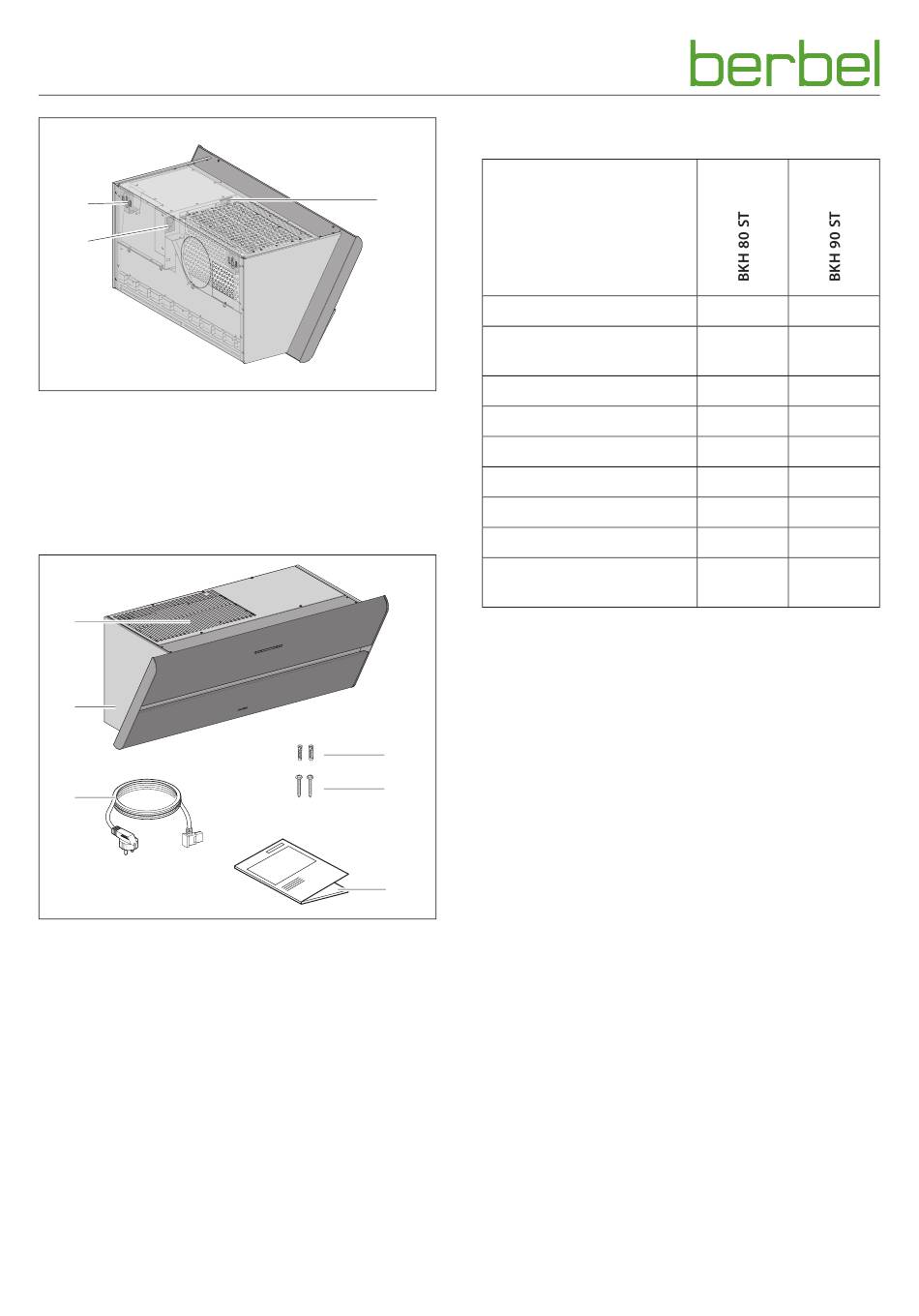

Product information
A
B
A Adjusting screws for alignment
B Connector for mains cable
C Connection terminals for wall box, window contact switch
(multifunction contact) and bus connection
2.4
Scope of delivery
A
B
C
A Recirculated air filter (in the hood body). The model is
dependent on the version:
y BUF-BDL recirculated air filter
y Recirculated air filter permalyt BUR BKH ST
B Hood body with front panel
C Cold device cable
D 2 nylon wall plugs 8 mm
E 2 Torx screws TX30 with integrated washers
F Operating and installation instructions
The fastening materials are only suitable for solid walls.
94
All manuals and user guides at all-guides.com
C
D
E
F
2.5
Technical data
Connection voltage
Total power
Fan power consumption
Lighting
Illumination on the hob surface
Width
Depth
Height
Net weight
1
Version with recirculated air filter permalyt
Information on the model (e.g. serial number, year of
construction) is quoted on the front panel.
D "2.3 Product overview" (page 93).
230 V / 50 Hz 230 V / 50 Hz
186 W,
186 W,
311 W
1
311 W
1
170 W
170 W
LED 15.6 W
LED 15.6 W
387 lx
387 lx
800 mm
900 mm
420 mm
420 mm
389 mm
389 mm
28.5 kg,
29.5 kg,
30.0 kg
31.0 kg
1
1
6003417_a – 26.09.2017
