• Do not open the cabinet, no serviceable part inside.
• Waste Electrical and Electronic Equipment should be
disposed of by selective collection. Do not throw
electrical and electronic equipment away with unsorted
household waste, but dispose of it at a selective
collection point.

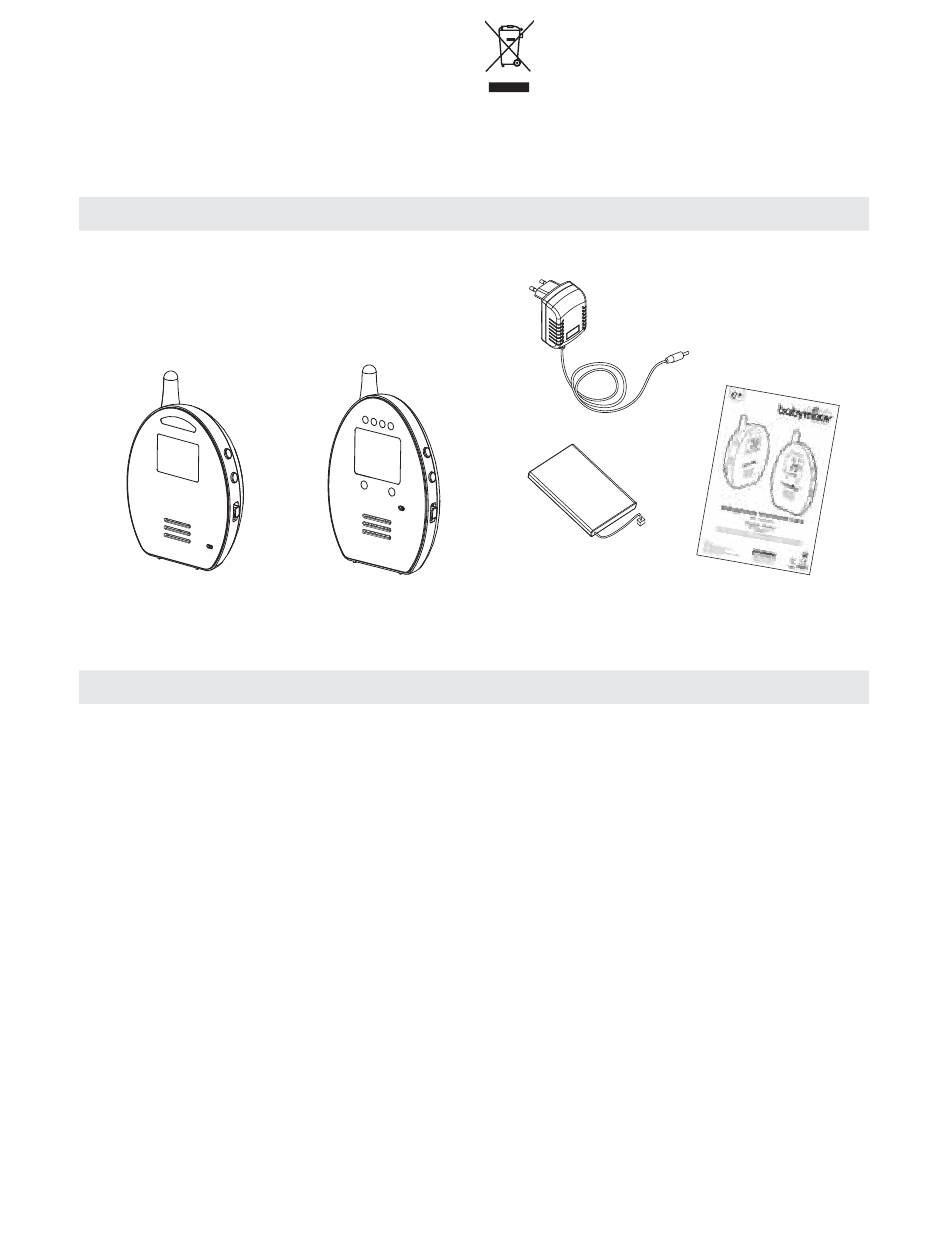

a. 5 V AC x 2 mains adapter
b. Transmitter
c. Receiver
d. Lithium-Polymer rechargeable 3.7 V battery
(installed in the receiver)
e. Instruction manual
b
Transmitter
1. On/Off switch and nightlight
2-3. Microphone sensitivity control
4. Menu button
5. "Volume" control
6. Nightlight
7. Microphone
8. Speaker
9. Temperature sensor
10. CC Socket
Parent unit (PU) LCD screen
A. Received signal strength
B. Battery status indicator
C. BU battery status indicator
D. BU number
E. Upper temperature limit
F. Transmit icon
Baby unit (BU) LCD screen
N. Transmit icon
O. Battery status indicator
P. BU number
Q. Night light icon
14
All manuals and user guides at all-guides.com
STANDARD ACCESSORIES
c
CONTROLS
Receiver
11. On/Off switch and vibrator
12-13. Volume control
14. Menu button
15. "Baby answering" control
16. Light diodes indicating sound level
17. Microphone
18. Speaker
19. "Baby 1 Unit" indicator light
20. "Baby 2 Unit" indicator light
21. CC Socket
G. Lower temperature limit
H. Vibration icon
I. Speaker volume bar graph
J. Speaker mute icon
K. Baby's room temperature
L. Night light icon
M. Out of range icon
R. Microphone sensitivity and
S. Baby's room temperature
T. Out of range icon
BABYPHONE PREMIUM CARE • Instruction manual
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU.
d
speaker volume bar graph
a
e
