8. USER DISPLAY
Located on the front of the eWire VFX is a user interactive LCD panel
that provides Messages, Settings and Information relating to the
functions of the binder.
Messages on the LCD Panel
1.
Ready Bypass
eWire VFX is ready to bypass, sheets will pass through the
machine.
2.
Ready to Bind
eWire VFX is ready to process a binding job, all sheets through
the unit will be stacked and bound.
3.
Running Bypass
This message will be displayed when Bypass mode is in
operation.
4.
Running Binding
This is displayed when Bind mode is in operation. The book
drawer capacity will be displayed as a percentage on the right of
screen. If a door of the eWire VFX is opened during binding, the
job will not resume.
5.
Book Tray Full
When the book tray is full or near full, the Tray Full message will
be shown.
6.
Close Tray
When the book tray is removed or not fully inserted into the eWire
VFX unit, this message will be displayed.
7.
Close Door
When the Front door is open or not completely closed this
message will be displayed.
8.
Close Cover
When the top cover is open or not completely closed this
message will be displayed.
9.
Add Elements
When the supply of elements is low, or the spool is missing, the
add elements message is displayed. See Section 7 B for more
details.
10. Jam Code
The jam code will appear when there is a jam in the machine
along with the area the jam is located. Refer to Section 7 E for
instructions on clearing jams and Section 11 for details on each
jam
11. Push Feeder In
This message appears when the element feeder door is closed
but the drawer is not fully pushed in. Opening the door, pushing
the drawer fully in, and closing the door will remove this
message.

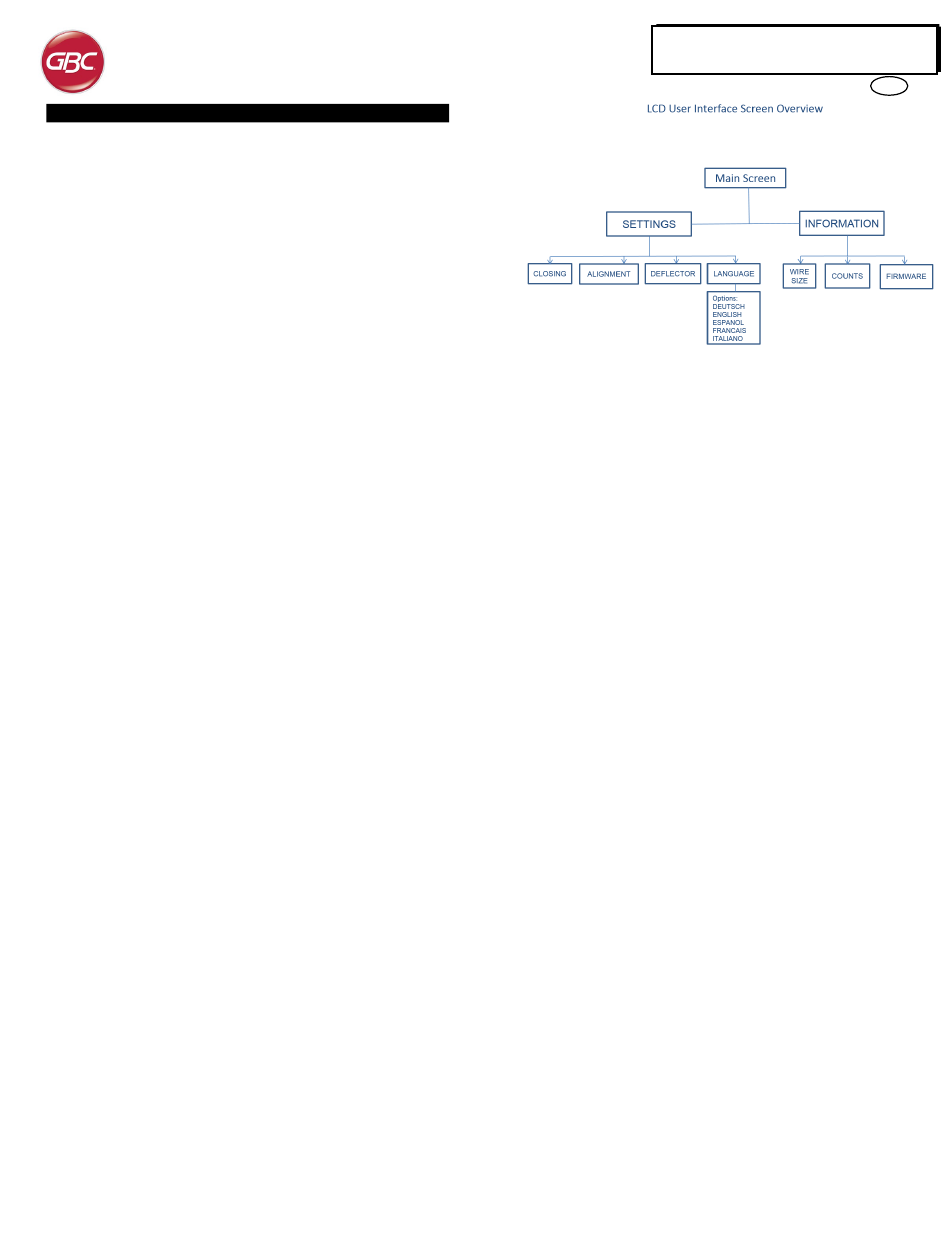

Changing the Settings on the LCD panel
The User Interface is navigated using the Up and Down arrows
next to the LCD. To change any setting below press OK while it
is on the display and use the arrows to change the setting. After
changing any setting press OK and exit the settings mode.
1.
Closing
Use this option to change the closing depth for the twin loop
wire. Offset from -5 to +5 is available and will apply only to
the wire size selected. Use this option to correct for binding
that is over- or under-closed. Refer to Section 9 F for more
details.
2.
Alignment
This option isused to correct for sheet offset coming into the
eWire VFX. No adjustment should be required, unless
directed by a service technician.
3.
Deflector
This option is used to correct for the timing of the deflector.
No adjustment should be required, unless directed by a
service technician.
4.
Language
Use this option to change the language displayed on the
LCD screen.
Displaying Information on the LCD Panel
1.
Wire Size
Displays the wire size currently selected. Also shown on the
home screen.
2.
Counts
Displays the number of books and sheets that have been
processed by the eWire VFX.
3.
Firmware
This displays the current level of firmware of eWire VFX.
13
eWire VFX
GB
